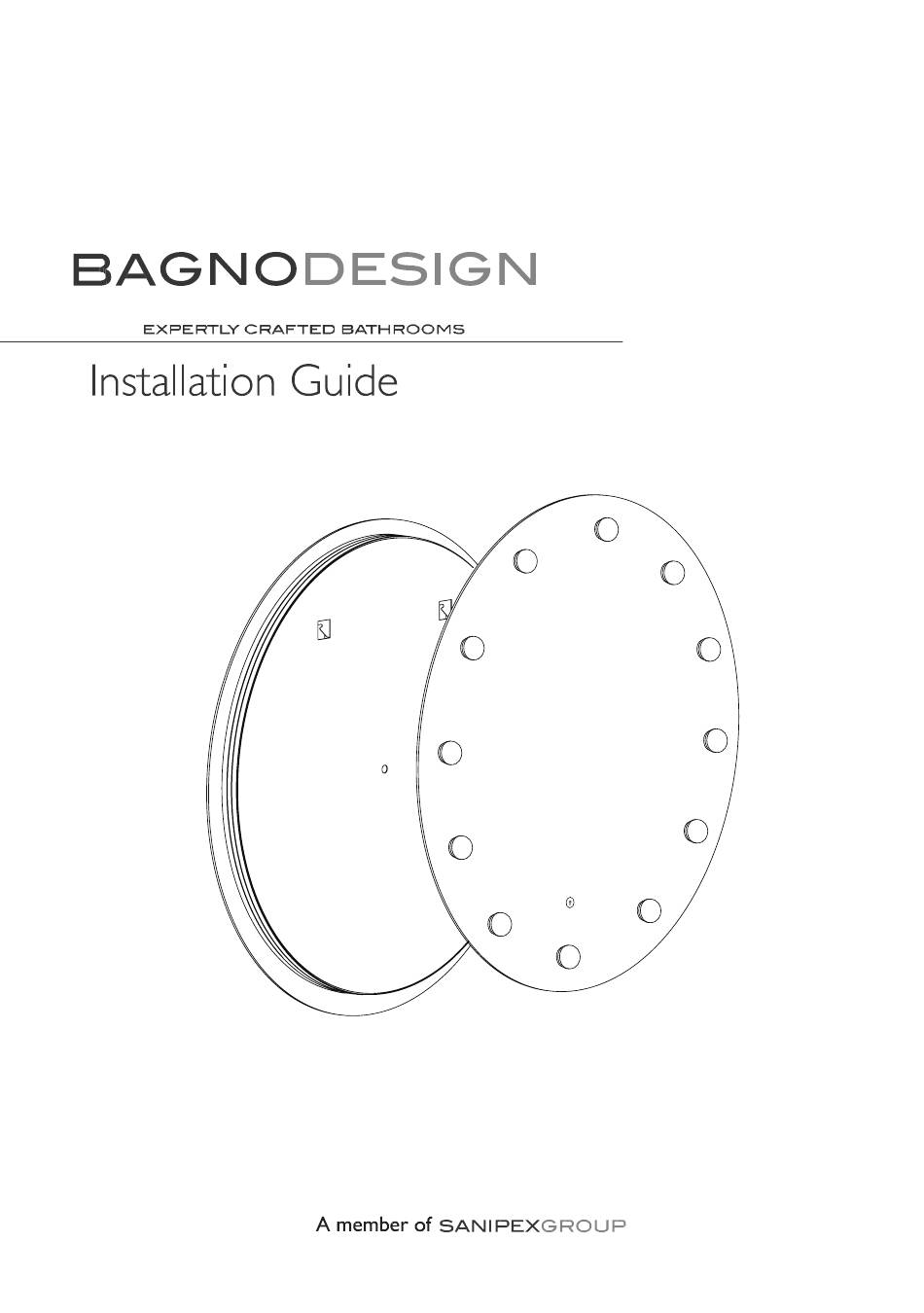

- Page 1 BDR-MNR-ROUND-MIRROR MONROE ILLUMINATED ROUND MIRROR WITH LED BULBS www.sanipexgroup.com...
- Page 2 IMPORTANT PLEASE READ Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and invalidate the guarantee. The Installation must comply with all Local/National Water Supply Authority Regulations/Byelaws and Building and Plumbing Regulations.
- Page 3 Mirror Dia700/1000mm 700/1000mm 34mm Aluminum frame Touch button (on/off) Colour change (long press warm to cold white) Front view Side view 4mm copper free mirror Hanging hole Wire outlet Back cover Back view Bottom view...
- Page 4 Technical Details Heated De-mister Pad This mirror comes with a demister pad,which heats the surface of the mirror above room temperature removing the mist on surface . Switch On/Off, Color change and Brightness change 1st touch turn-on the light with white color, 2nd touch gives warm light, 3rd touch gives neutral light, the 4th touch turns-off the light，...
- Page 5 Installation Procedure Notes: To ensure the normal use of products, it is required you set out wires as per the regulations at the installation places. The Products are only applicable to being installed on the indoor solid wall. The installation must be carried out by a professional electrician and wrong installation may lead to product damage and personal injury.
- Page 6 Wiring Diagram for Input Brown Brown Yellow live Yellow green green Blue earth neutral Blue MAINS SUPPLY LUMINAIRE Schematic Diagram MAINS SUPPLY LUMINAIRE Live Earth Neutral LED strip Fig. 4 Touch Sensors Supply Power Deffogger Pad Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this mark (left) must not be disposed off with other household or commercial waste.
- Page 7 Note:...
- Page 8 www.sanipexgroup.com INR-MNR-ROUND-MIRROR-10-22...
