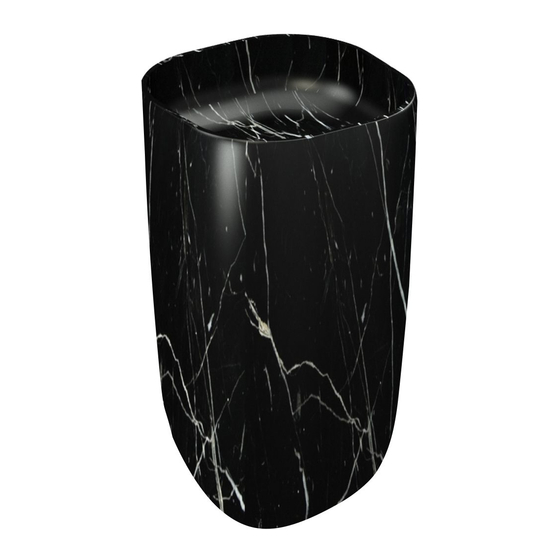

Taormina freestanding wash basin 440x440mm

Advertisement

BDS-TAO-450-XX
TAORMINA FREESTANDING WASH BASIN 440X440MM
www.sanipexgroup.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAGNODESIGN BDS-TAO-450-XX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanipex BAGNODESIGN BDS-TAO-450-XX

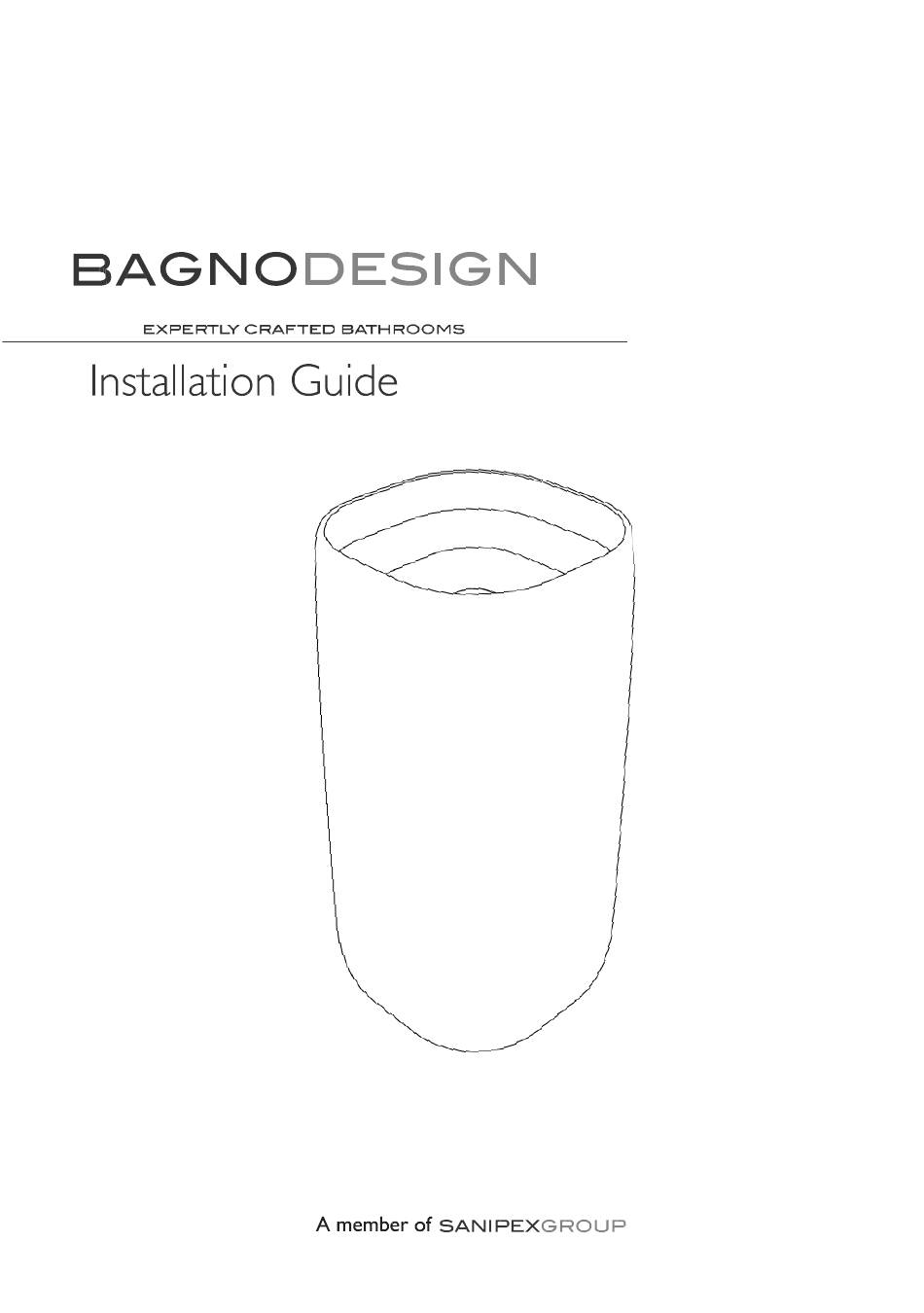

  • Page 1 BDS-TAO-450-XX TAORMINA FREESTANDING WASH BASIN 440X440MM www.sanipexgroup.com...
  • Page 2 IMPORT ANT PLEASE READ Remove all packaging and check the product for missing parts or damage before starting installation. Any alterations made to this product and fittings may infringe water regulations and invalidate the guarantee. Installation must comply with all Local/National Water Supply Authority Regulations/Byelaws and Building and Plumbing Regulations.
  • Page 3 Place the basin close to the wall, take notice of the spout length of the mixer so that the distance X is correct.
  • Page 4 Check that the waste provision is in the correct place, check the bottle trap dimensions to ensure that the distance Y is achievable. Ø32mm Install the waste assembly into the basin.
  • Page 5 Install the bottle trap onto the waste. Cut the horizontal pipe to length and install into the wall via a waste compression fitting or rubber socket. If required run a small bead of silicon around the perimeter base.
  • Page 6 INSTALLATION COMPLETE!!!
  • Page 7 Note:...
  • Page 8 www.sanipexgroup.com INS-TAO-450-XX-09-21...
