SIMES MINIBRIQUE STEP RECESSED Quick Start Manual

MINIBRIQUE STEP RECESSED
MINIBRIQUE STEP RECESSED
With SOFT LED 2,5W

TECHNICAL CHARACTERISTICS:

CLASS I
PROTECTION LEVEL : IP 54
ELECTRONIC BALLAST 24V÷230V

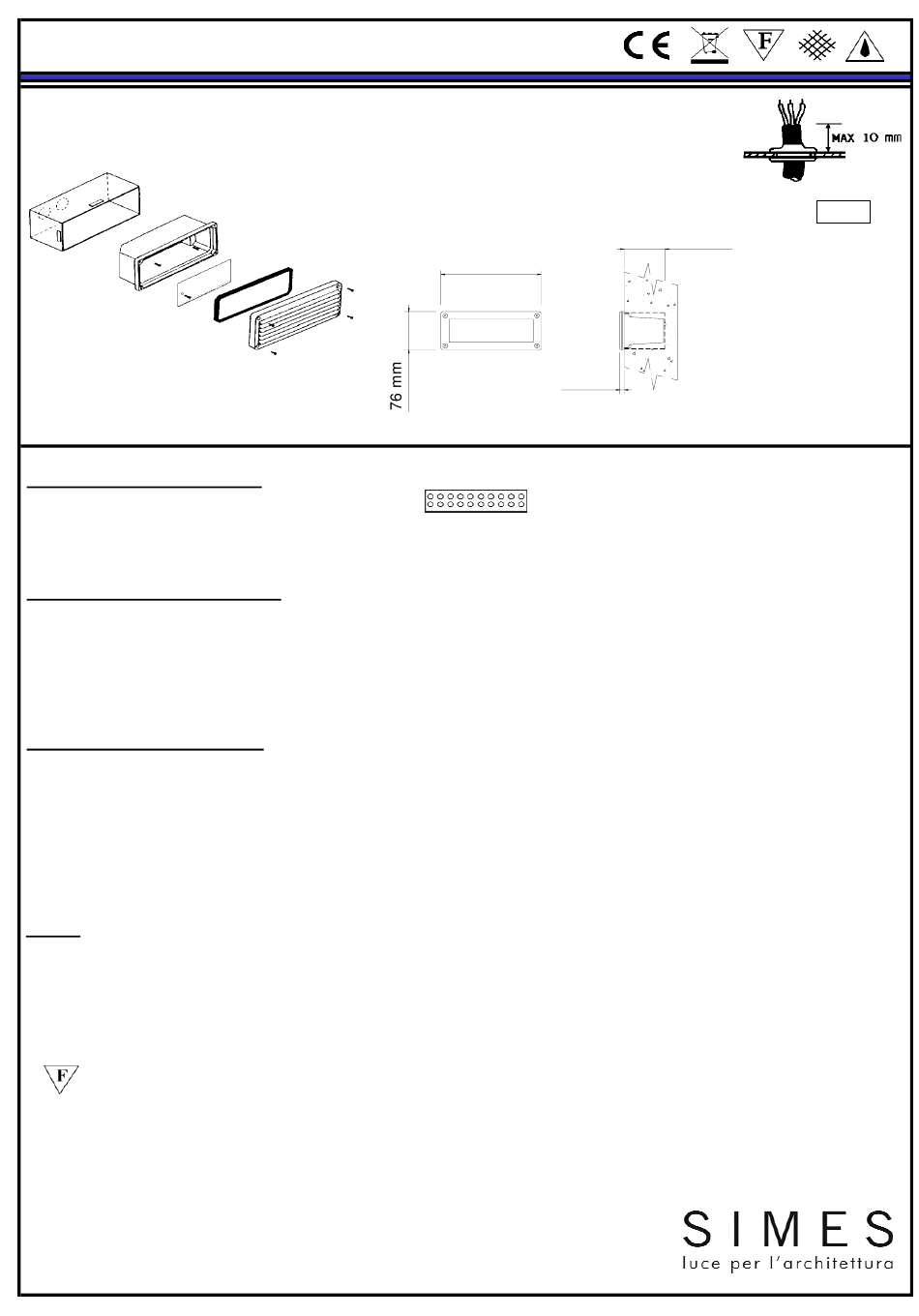

ASSEMBLING INSTRUCTIONS:

Open the fitting and remove the electrical kit.
Assembly the rubber gasket and insert the cable D.8-12 mm
Connect the cable supply to terminal block.
Fix the fitting to pre-installed recess box with the supplied screws
Re-assembling the electrical kit.
Close the fitting
Do not exceed the maximum allowed wattage

NOTES:

Disconnect the supply before effecting the maintenance
The fitting must be earthed
Entry with cable for max 10 mm ( Pic. A )
Use <HAR> type feed cables
For installation use accessory recess-box ART.S.4553
The fitting is suitable to the mounting on normal flammable surfaces
Installation should be carried out by a suitably qualified person in accordance with good
electrical practice and the appropriate national wiring regulations
The respect of these instructions is very important for the fitting life
and for the people safety.Therefore, they must be retained
185 mm
8 mm
Pic. A
90 mm
ISTRMINIBRETLED REV.1 08/09
