SIMES BRIQUE WALL RECCESSED Manual

BRIQUE WALL RECESSED
ART.S.4506
ART. S.4511 - S.4511W
BRIQUE WALL RECESSED
for compact fluorescent lamp 18W G24d-2 FSQ
5 accent LED 6000K 7,5W 230-240V
5 accent LED 3200K 7,5W 230-240V

TECHNICAL CHARACTERISTICS:

CLASS I
PROTECTION LEVEL : IP 65 front part - IP20 recessed part

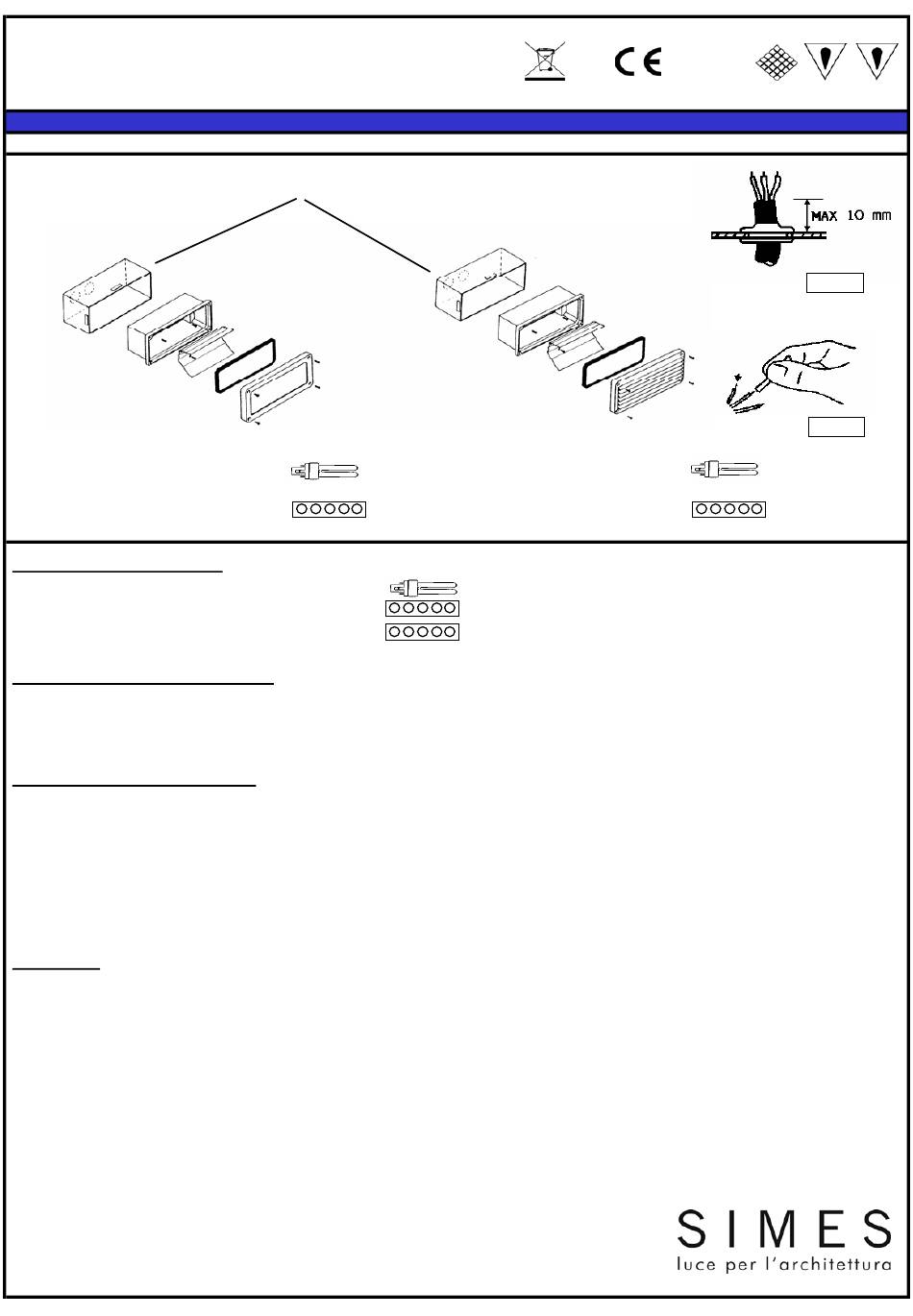

ASSEMBLING INSTRUCTIONS:

Open the fitting and remove the glass and the reflector
Assembly the rubber gasket and insert the cable D.8-12 mm
Cover the single wires with the supplied silicon sheath (PIC.B) and connect them to terminal block.
Fix the fitting to pre-installed recess box with the supplied screws
Re-assembling the reflector and insert the correct lamp and re-install the glass
Close the fitting

REMARKS:

Do not exceed the maximum allowed wattage
Disconnect the supply before effecting the maintenance
The fitting must be earthed
Entry with cable for max 10 mm (PIC.A)
Use <HAR> type feed cables
For installation use accessory recess-box ART. S.4503
Double cable entry (Open the 2nd hole visible after removing the glass and reflector)
Installation should be carried out by a suitably qualified person in accordance
with good electrical practice and the appropiate national wiring regulations
ART.S.4503
ART.S.4509
ART. S.4502; S.4502W
ART.S.4506 - S.4509
ART. S.4511 - S.4511W
ART. S.4502 - S.4502W
Pic. A
Pic. B
ISTRBRI REV.4 09/12
