Weight Limit: 225 Lb / 102 kg
N.C. - 10/30/2015
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or Call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
3235098

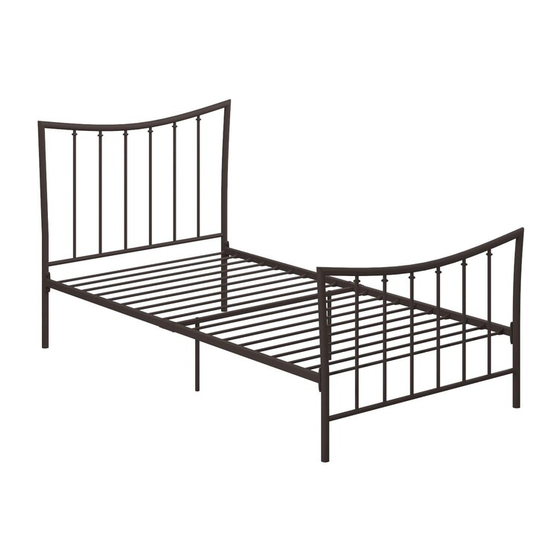

Bali Metal Bed
Lot Number
B34323509801-10125-M
Twin
Bronze
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3235098 and is the answer not in the manual?

Questions and answers

Related Manuals for DHP 3235098

Summary of Contents for DHP 3235098

  • Page 1 Bali Metal Bed Twin Bronze Weight Limit: 225 Lb / 102 kg Thank you for purchasing from DHP! DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.

  • Page 2: Warranty Information

    Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective 2 (however it is always better parts and assembly labor is not included.
  • Page 3 B34 323509801...
  • Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Before you throw the package, please use the Check Box to identify the parts and ensure that you have all the parts needed for the assembly. Leg Post Headboard Footboard...

  • Page 5: Hardware Pack

    Hardware Pack Hardware Pack #: T3235098-01 5/16"X 3/4" 1/4"X 11/16" 1/4" X 7/8" X 16 1/4" X 1 3/8" Hardware Note: Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
  • Page 6 Step 1 Lay Headboard (C) on a clean surface. Insert POSTS (A) X 2 into (C) and secure with BOLTS 2. B34 323509801...
  • Page 7 Step 2 Insert (F) X 2 into (E) X2 and secure with BOLTS 2. B34 323509801...
  • Page 8 Step 3 This bed offers two options for the high of the bed foundation, from Step 3 to Step 5 we will show you how to assemble the foundation in the higher position. If you intend to assemble the bed foundation in the lower position, please start from Step 6 instead.
  • Page 9 Step 4 4.1 Attach (M) X 2 to (G) with BOLTS 2; 4.2 Attach both ends of (G) to (E) and secure with BOLTS 3 and NUTS 4. B34 323509801...
  • Page 10 Step 5 Step 5 5.1 Insert (O) into the slots in (E) & (F) as illustrated; 5.2 Lock (O) into place with (Y). B34 323509801 B34 323509801...
  • Page 11 Step 6 Assembly for the bed foundation in the lower position: Attach sub-assembly (E/F) X 2 from STEP TWO to (A), (C) and (D) with BOLTS 1. B34 323509801...
  • Page 12 Step 7 7.1 Attach (N) X 2 to (G) with BOLTS 2; 7.2 Attach both ends of (G) to (E) and secure with BOLTS 3 and NUTS 4. B34 323509801...
  • Page 13 Step 8 8.1 Insert (O) into the slots in (E) & (F) as illustrated; 8.2 Lock (O) into place with (Y). B34 323509801...

  • Page 14: Helpful Hints

    Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood of entrapment or falls. Do not use substitute parts. Contact DHP for replacement parts. Keep these instructions for future reference. End Cap T392480...
  • Page 15 | www.pinterest.com/dhpfurniture para tener acceso a promociones de DHP. producto o simplemente ordenar otras partes, dirijase a: Gracias por comprar un producto DHP. Esperamos que este le proporcione muchos cs@dhpfurniture.com 1-800-267-1739 / Lunes - Viernes / 9:00 am - 5:00 pm (hora del este)
  • Page 16 Lea antes de comenzar a ensamblar Partes Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Todo se incluye en 1 caja grande! (sin embargo es recomendable contar con ayuda adicional). Tiempo estimado de Hay 1 caja(s) interna(s) que incluyen los componentes necesarios para ensamble es 1.0 horas.
  • Page 17 Mueva sus muebles nuevos con cuidado, se requiere de dos personas para Paso 2 Inserte (F) X 2 dentro de (E) X2 y asegure las partes con los PERNOS 2. Sus muebles DHP se pueden desmontar y volver a ensamblar en caso de mudanza. Paso 3...

  • Page 18: Garantie

    DHP. cs@dhpfurniture.com 1-800-267-1739 / Lundi - Vendredi / 9:00 am - 5:00 pm (Heure de l'Est) DHP / 410E, First Street South, Wright City MO 63390, USA Attention: Consumer Service. Remarque: concours. B34323509801-10125-M...

  • Page 19: Avant De Commencer L'assemblage

    Avant de commencer l'assemblage www.dhpfurniture/fre/support-home plancher et le produit. 2 (cependant il vaut l'assemblage. est de 1.0 heures. lors de l'assemblage. (D) Pied de lit: T934420 commercial. (M) Patte de lit 1: T933080 (N) Patte de lit 2: T933090 (O) Lamelles: T929520 enfants.

  • Page 20: Conseils Utiles

    Instructions Limite de Poids: 225 Lb / 102 Kg Conseils utiles BOULONS 2. personnes pour soulever et transporter le mobilier vers son nouvel emplacement. on vous montrera comment assembler la fondation en la position plus haut. ou abrasifs. Attacher le sub-assemblage (E/F) X 2 de BOULONS 1.
