DHP 3136096 Instruction Booklet
Metal bunk bed, twin/full, black
Hide thumbs
Also See for 3136096:
- Assembly instructions manual (20 pages) ,
- Instruction booklet (16 pages)
Table of Contents
Advertisement
Available languages
Available languages
TM
Weight Limit:
Upper Bed: 200 Lbs / 91 Kgs
Lower Bed: 450 Lbs / 204 Kgs
R.X. - 2017/8/25
2014 Dorel Home Products All Rights Reserved
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Visit www.dhpfurniture.com/eng/support-home
or call Toll-Free 1-800-267-1739
Date of Purchase
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY
INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
3136096
Metal Bunk Bed
Twin/Full
Lot Number
B34313609612 - 10125-M
Black
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DHP 3136096
Summary of Contents for DHP 3136096

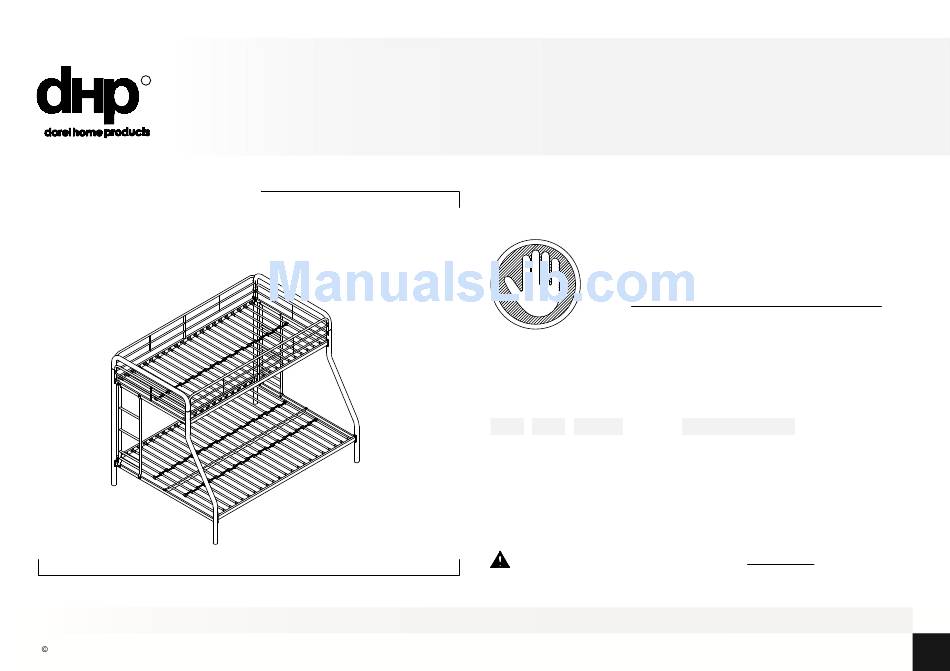

- Page 1 Metal Bunk Bed Twin/Full Black Weight Limit: Thank you for purchasing from DHP! Upper Bed: 200 Lbs / 91 Kgs Lower Bed: 450 Lbs / 204 Kgs DO NOT RETURN TO THE STORE ! If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
- Page 2 Warranty Information Read Before Beginning Assembly DHP warrants this product to be free from defects in material and workmanship and Call our toll free number if you need assistance. agrees to remedy any such defect. This warranty covers one year from the date of Work in a spacious area and near where the unit will be used, preferably on a original purchase.
- Page 4 Parts Replacement Parts, Visit www.dhpfurniture.com/eng/support-home All in 1 big box! There are inner box(es) that include components required to complete this assembly. Post Post Post Post Guard Rail Brace Before you throw the package, please use the T917140 T917150 T917160 T917170 T608900 T953920...
- Page 5 Hardware Pack Hardware Pack #: T3136096-10 ST 4.2 X 14mm 1/4" X 3/4" 5/16" X 3/4" X 24 X 16 1/4" X 1 1/16" 1/4" X 2 3/8" 1/4" Wrench Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
- Page 6 Step 1 Attach I to A/B and C/D with Attach T to A/B and C/D with Please do not completely tighten the bolts of Part I & T, in order to easily assemble Parts M in Step 2. X 16...
- Page 7 Step 2 Insert M x 2 onto A/B and C/D, then properly tighten the BOLTS from Step 1. These two holes are in the same side.
- Page 8 Step 3 Wide side of the slot should be facing up ! Attach G x 2 to B/C and A/D with Attach J x 2 to B/C and A/D with X 16...
- Page 9 Step 4 4.1 Attach E x 2 to A/D/M and B/C/M with 4.2 Then attach E x 2 to G x 2 with...
- Page 10 Step 5 Attach Z x 2 to I x 2 and T x 2 with...
- Page 11 Step 6 Attach X to T x 2 with...
- Page 12 Step 7 Insert O into G as illustrated. Then lock O into place with Y Insert P into J as illustrated. Then lock P into place with Y...
- Page 13 Step 8 8.1 Attach W to O/P. 8.2 Attach Q to W alternating left and right. For better performance, attach the Slat Spacers Q at equal spaces. (Approximately = 17.5 inches or 445 mm for lower bed). 17.5" 17.5" 17.5"...
- Page 14 Move your new furniture carefully, with two people lifting and carrying the unit to its new location. Your DHP furniture can be disassembled and reassembled to move. Clean the product with your favorite furniture polish and soft cloth. DO NOT use harsh chemicals or abrasive cleaners.
- Page 15 Do not use substitute parts. Contact the manufacturer or dealer for replacement parts. Replacements parts, including additional guardrails, may be obtained from DHP. Use of a night light may provide added safety precaution for a child using the upper bunk.
- Page 16 Garant a Gracias por su compra DHP! DHP garantiza que este producto est libre de defectos de material y de fabricaci n, comprometi ndose a corregirlos en caso de ser hallados. Esta garant a es valida por Registra tu producto y participa para ganar! un a o a partir de la fecha de compra original.
- Page 17 Lea antes de comenzar a ensamblar Partes Llame a nuestro n mero gratuito si necesita asistencia. Piezas de reemplazo, visite www.dhpfurniture.com/spa/support-home Trabaje en un rea espaciosa y cerca de donde su producto ser utilizado, preferiblemente sobre una alfombra o utilice el cart n del empaque para proteger su piso y su producto.
- Page 18 Paso 6 Proh ba a m s de una persona en la cama superior. Una X en T x 2 con No utilice piezas sustitutas. Entre en contacto con DHP para las piezas de Paso 7 reemplazo. Inserte O dentro de G y H como se indica. Luego bloquee O en su lugar con Y.
- Page 19 S'IL VOUS PLA T LIRE ET CONSERVER POUR R F RENCE ULT RIEURE. Garantie Merci d'avoir achet un produit de DHP ! DHP garantit que ce produit est exempt de tout vice de mat riaux et de fabrication et Enregistrez votre produit et s'engage rem dier un tel d faut.
- Page 20 Avant de commencer l'assemblage Pi ces Si vous avez besoin d'aide, appelez notre service la client le sans frais. Pi ces de rechange, visitez www.dhpfurniture/fre/support-home Travailler dans un endroit spacieux et pr s du lieu o l'unit sera utilis e, pr f rablement sur un tapis, ou sur un morceau de l'emballage pour prot ger le Tout dans 1 grosse bo te! plancher et le produit.
- Page 21 Utilisez toujours l' chelle pour monter ou descendre au lit du haut. Attacher X T x 2 avec Ne substituez pas de pi ces. Communiquez avec DHP pour obtenir des pi ces de tape 7 rechange. Inserez O dans G et H. Puis verrouiller O sur place avec Y.
Need help?
Do you have a question about the 3136096 and is the answer not in the manual?
Questions and answers

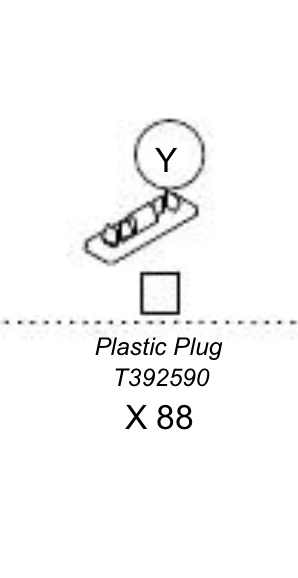

I need to replace some of the plastic plugs
To replace the plastic plugs for DHP part number 3136096, visit www.dhpfurniture.com and go to the support or replacement parts section. You can also contact DHP Consumer Services at cs@dhpfurniture.com or call 1-800-267-1739 (Monday-Friday, 9:00 AM - 5:00 PM Eastern Time) for assistance in ordering the replacement parts.
