Weight Limits: 600 Lbs / 272 Kgs
WARNING
• This futon has been designed for seating three (3) average adults. To prevent injury and damage to this unit, PROHIBIT jumping on it.
• This product is designed for home use and not intended for commercial use.
• Children under the age of 5, small infants and babies must not sleep on this product for safety reasons.
• Recommended # of people needed for assembly: 1 (however it is always better to have an extra hand). Estimated assembly time is 10 minutes.
• THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
7
0
29986 32053
STOP
Need Parts or Assistance?
or access our website
For prompt, reliable service; please have your assembly
manual ready.
3205298

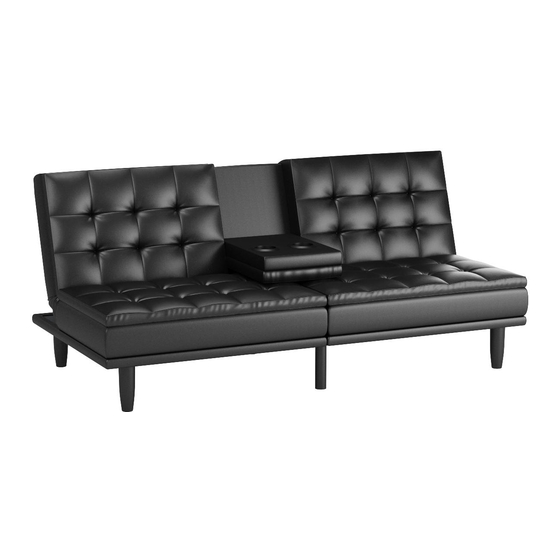

Julia CupHolder Futon
Gray with Black Finish
DO NOT RETURN PRODUCT TO THE
STORE
Individual stores do not stock parts.
If a part is missing or damaged, call our
toll-free customer service line. We will
gladly ship your replacement parts FREE
of charge.
1-800-267-1739
www.dhpfurniture.com
Date of Purchase
___ / ___ / ___
Lot Number
_________
B34320529800 - 015219 - AN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3205298 and is the answer not in the manual?

Questions and answers

Related Manuals for DHP 3205298

Summary of Contents for DHP 3205298

  • Page 1 3205298 Julia CupHolder Futon Gray with Black Finish 29986 32053 Weight Limits: 600 Lbs / 272 Kgs DO NOT RETURN PRODUCT TO THE STORE STOP Individual stores do not stock parts. If a part is missing or damaged, call our toll-free customer service line.

  • Page 2: Helpful Hints

    Warranty Information DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to the repair or replacement of defective parts and no assembly labor is included.
  • Page 3 PARTS WASHER T208860 QTY: 4 T611510 QTY: 4 SEAT T612140 QTY: 1 BOLT M8 X 165mm HEX KEY T137600 QTY: 4 T290120 QTY: 1 3 /10 B34320529800...
  • Page 4 Take out four LEGs (B), contained in the storage of the SEAT (A), as shown below. 4 /10 B34320529800...

  • Page 5: Hardware Needed

    Attach the LEGs (B) to the SEAT (A) with BOLTs (1) and WASHERs (2), as shown below. ATTENTION: The inclination of the leg should be as shown below. HARDWARE NEEDED: 5 /10 B34320529800...
  • Page 6 To convert from sofa position to bed position: Pull the backrest in direction of the arrow as far as possible and then release, as shown below. To convert from sofa position to Cup Holder position: Pull the middle backrest in direction of the arrow, as shown below. 6 /10 B34320529800...
  • Page 7 3205298 Límite De Peso: 600 Lbs / 272 Kgs ALTO NO REGRESAR ESTA PRODUCTO A LA TIENDA Las tiendas no tiene las piezas. Si faltan piezas o las estan dañadas llame gratis al servicio al cliente. Con gusto mandaremos las piezas sin ningun cargo.

  • Page 8: Consejos Útiles

    Información de Garantía DHP Garantiza que este producto está libre de defectos materiales y de mano de obra y acepta remediar cualquier defecto. Esta garantía es válida por un año desde el día de la compra original de este artículo. Esta garantía está limitada a la reparación o reemplazo de piezas defectuosas, más no a la mano de obra incurrida en el ensamblaje de este artículo.
  • Page 9 3205298 Limite de Poids: 600Lbs / 272 Kgs ATTENTION NE PAS RETOURNEZ LE PRODUIT AU MAGASIN Les magasins individuels ne gardent pas de pièces. Si une pièce est manque ou endommagée, apelez notre numéro de téléphone sans frais pour assistance à la clientèle. Nous enverrons avec plaisir les pièces de rechange sans frais.

  • Page 10: Avant De Commencer L'assemblage

    Informations sur la garantie DHP garantit que ce produit est exempt de tout vice de matériau et de fabrication et s'engage à remédier à un tel défaut. Cette garantie couvre un an à compter de la date d'achat originale. Cela se limite uniquement à la réparation ou au remplacement des pièces défectueuses. Aucun travail de montage n'est inclus.
