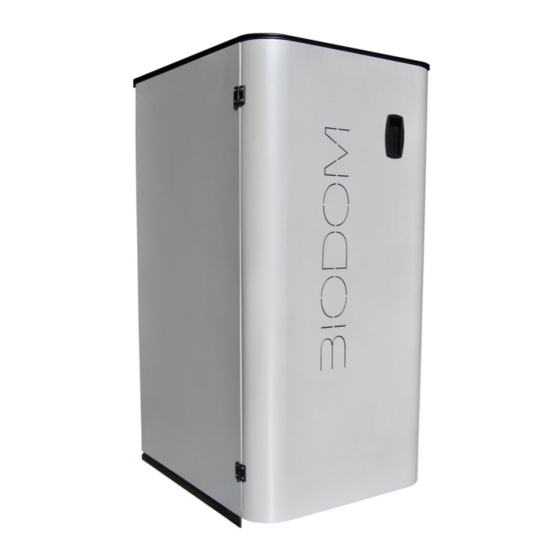

Summary of Contents for Biodom C15

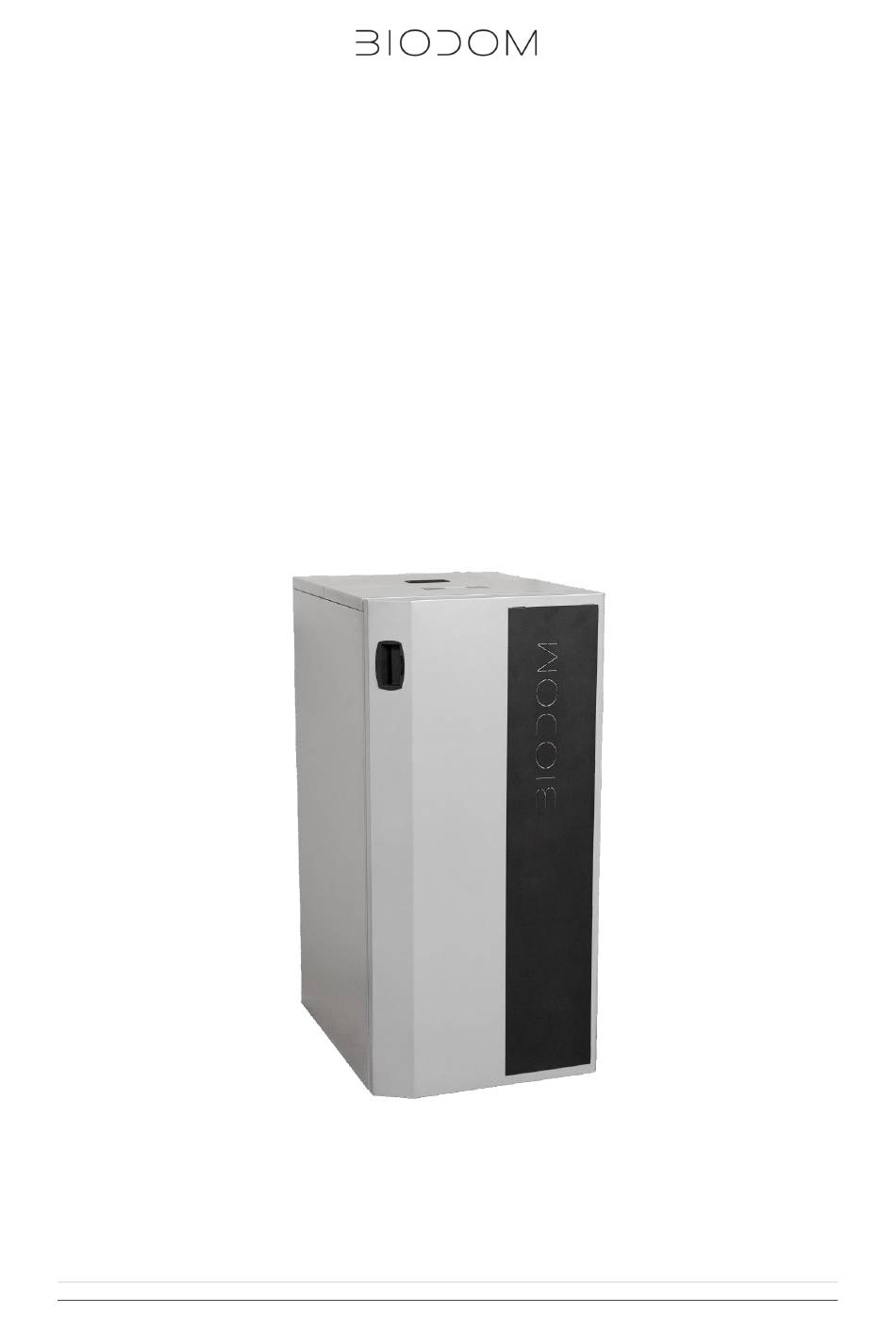

- Page 1 Biodom C15 | instructions for use, maintenance and installation | February 2019 __________ PELLET BOILER BIODOM C15 Instructions for use, maintenance and installation __________...
- Page 2 GENERAL INFORMATION BUYER: NAME AND SURNAME: STREET AND HOUSE NO.: CITY: PHONE NO/GSM: __________________E-MAIL: DATE OF SALE: INVOICE NUMBER: PRODUCT TYPE: SERIAL NUMBER: DURATION OF WARRANTY: 2 YEARS STAMP AND SIGNATURE: INSTALLATION OF DEVICES DATE OF INSTALLATION: NAME OF THE INSTALLATION COMPANY: STREET AND HOUSE NO.: CITY: PHONE NO./GSM:...
- Page 3 COMMISSIONING OF THE DEVICE DATE OF COMMISSIONING: AUTHORIZED COMPANY NAME: STREET AND HOUSE NO.: CITY: PHONE NO.: NAME AND SURNAME OF SERVISER: STAMP AND SIGNATURE OF SERVISER: (FILLS IN AN AUTHORIZED SERVICE COMPANY)
- Page 4 INSTALLATION OF DEVICES DATE OF INSTALLATION: NAME OF THE INSTALLATION COMPANY: STREET AND HOUSE NO.: CITY: PHONE NO./GSM: E-MAIL: NAME AND SURNAME OF INSTALLER: SERIAL NUMBER: STAMP AND SIGNATURE OF SERVISER: (FILLS IN AN AUTHORIZED SERVICE COMPANY) COMPLETED FORM RETURN TO BIODOM...
- Page 5 DIFFERENCES (FILLS IN AN INSTALLATION COMPANY) COMPLETED FORM RETURN TO BIODOM...
- Page 6 WARRANTY CARD No. (no. of boiler):_____________________ BUYER: NAME AND SURNAME: STREET AND HOUSE NO.: CITY: PHONE NO./GSM: __________________E-MAIL: DATE OF SALE: INVOICE NUMBER: PRODUCT TYPE: SERIAL NUMBER: INSTALLATION OF DEVICES DATE OF INSTALLATION: NAME OF THE INSTALLATION COMPANY: STREET AND HOUSE NO.: CITY: PHONE NO./GSM: E-MAIL:...
- Page 7 DIFFERENCES...
- Page 8 INSTRUCTIONS FOR CONNECTING, OPERATION, AND MAINTENANCE OF THE STOVE Heating devices (in this manual they are called “stoves") by Company Biodom (in this manual titled Biodom) are assembled and tested in accordance with the safety and applicable measures, and regulations of the European Community.
-
Page 9: Table Of Contents
Biodom C15 | instructions for use, maintenance and installation | February 2019 INDEX WARNINGS ......................12 TECHNICAL CHARACTERISTICS ................15 DIMENSIONS OF BOILER BIODOM C15 ..............16 PURPOSE OF INSTRUCTIONS FOR USE ..............16 4.1. UPDATES ..........................16 RESPONSIBILITY OF MANUFACTURER ..............17 5.1. - Page 10 Biodom C15 | instructions for use, maintenance and installation | February 2019 12.2. BOILER SHUTDOWN......................40 12.3. BOILER ACTIVATION ......................40 12.4. TIME PROGRAMME SETTING ....................41 12.5. INDICATIONS AND MESSAGES ON DISPLAY ................44 MENU ........................46 SCHEME OF ELECTRONIC CONTROL PANEL OF THE BOILER ........48 14.1.
- Page 11 Biodom C15 | instructions for use, maintenance and installation | February 2019 -Instructions for use, maintenance and installation-...
-
Page 12: Warnings
– Ø 130 mm. If the flue does not ensure appropriate extraction of smoke gases, it can also come do improper operation and, consequently, to alarm from boiler BIODOM. It is advisable that the flue is inspected by an expert before installing boiler BIODOM. ATTENTION Never turn off the boiler by pulling the electrical cable from the socket, while fire is still burning in the boiler. - Page 13 Biodom C15 | instructions for use, maintenance and installation | February 2019 ATTENTION Extraction of smoke gases must be earthed in accordance with regulations in force. (Earthing connection is required by law). Earthing must be independent of combustion unit. ATTENTION When the boiler installation is finished, it is mandatory to perform measurements of smoke gases discharge.
- Page 14 Biodom C15 | instructions for use, maintenance and installation | February 2019 ATTENTION Do not use fine cut wood to ensure operation and safety of the boiler. ATTENTION Do not use the pellet boiler as an incinerator. ATTENTION Persons with back injuries and pregnant women should avoid lifting pellet bags.
-
Page 15: Technical Characteristics
Biodom C15 | instructions for use, maintenance and installation | February 2019 TECHNICAL CHARACTERISTICS Minimal Nominal Thermal power 4,97 kW 17,13 kW 90,6 % 93,83 % Efficiency Pellet consumption per hour 1,13 kg/h 3,77 kg/h Burning time with 1 filling of container (approx.) -
Page 16: Dimensions Of Boiler Biodom C15
Biodom C15 | instructions for use, maintenance and installation | February 2019 Boiler operates without condensation conditions Noise does not exceed 60 dB 40,49 ��������/���� ���� ���� CO emissions at 13% O2 2,6 ��������/���� ���� ���� OGC emissions at 13% O2 12,6 ��������/����... -
Page 17: Responsibility Of Manufacturer
If the instructions get lost, request for a new copy of instructions from the manufacturer, authorized reseller or repairman. RESPONSIBILITY OF MANUFACTURER In providing these instructions, Company Biodom rejects any civil or penal liability, direct or indirect, due to: •... -
Page 18: Transportation And Handling Of Pellet Boiler
Biodom C15 | instructions for use, maintenance and installation | February 2019 5.2. TRANSPORTATION AND HANDLING OF PELLET BOILER When moving the boiler, pay attention to your safety. Before transport and handling of the boiler, which must be performed in complete safety, make sure that the lifting capacity of transport equipment suffices. -
Page 19: Installation
Biodom C15 | instructions for use, maintenance and installation | February 2019 required documentation in accordance with standards in force; • perform training of customer for operation and regular maintenance and cleaning of the • device. INSTALLATION Responsibility for installation work in the space is entirely upon the customer. - Page 20 Biodom C15 | instructions for use, maintenance and installation | February 2019...
- Page 21 Biodom C15 | instructions for use, maintenance and installation | February 2019 Flue pipe Figure 1: Minimum distance of boiler from boiler room walls If the pellet boiler is installed in a boiler room, where there are other devices, which drain air (other boiler, various suction fans etc.), make sure that the volume of air intake is sufficient for safe operation...
- Page 22 – Ø 130 mm. If the flue does not ensure appropriate extraction of smoke gases, it can also come do improper operation and, consequently, to alarm from boiler Biodom C15. It is advisable that the flue is inspected by an expert before installing boiler Biodom C15.
-
Page 23: Extraction Of Smoke Gases
Biodom C15 | instructions for use, maintenance and installation | February 2019 6.2. EXTRACTION OF SMOKE GASES Extraction of smoke gases must be in accordance with regulations in force. Pipes for smoke gases must not be connected to other discharge pipes of any other combustion device (figure 2). It is prohibited to set up extraction of smoke gases into closed and/or semi-closed spaces, e.g. - Page 24 Biodom C15 | instructions for use, maintenance and installation | February 2019 make sure that the connection with the flue pipe is properly sealed; • avoid contact with flammable material (such as wood ashes), and, in any case, insulate them •...
-
Page 25: Insulation And Diameter Of Holes In The Roof
Biodom C15 | instructions for use, maintenance and installation | February 2019 6.3. INSULATION AND DIAMETER OF HOLES IN THE ROOF Once the position of boiler installation is determined, a hole for passage of smoke pipes must be made. This changes in regard to the type of installation, diameter of smoke pipes and type of wall or roof, through which it must be guided. -
Page 26: Electrical Connection
Biodom C15 | instructions for use, maintenance and installation | February 2019 Figure 7 6.5. ELECTRICAL CONNECTION Combustion device requires connection to electrical network. Our pellet boilers are fitted with power supply cable for medium temperatures. If the power supply cable is damaged and must be replaced, contact our service staff. - Page 27 Biodom C15 | instructions for use, maintenance and installation | February 2019 Electrical connection The pellet boiler must be connected to electrical network. Power supply cable is 3 m long, white and designated with "220 V". Other connection cable is intended for connection of pump, is black and designated with "Pump".
-
Page 28: Boiler Commissioning
Biodom C15 | instructions for use, maintenance and installation | February 2019 BOILER COMMISSIONING Boiler commissioning can be performed only by a manufacturer authorized technician, otherwise the warranty is void. INSTRUCTIONS FOR SAFETY OF PERSONS, ANIMALS AND PERSONAL PROPERTY We wish to inform the installer on some general guidelines, which must be complied with for correct installation of pellet boiler. -
Page 29: Safety Warnings For User
Biodom C15 | instructions for use, maintenance and installation | February 2019 always use original spare parts. Do not wait for boiler components to wear out before replacing • them. Replacing a worn-out part, before it malfunctions, helps prevent injuries, caused by sudden failure of a component, which can seriously jeopardize persons and/or their property;... -
Page 30: Instructions For Safe Ignition And Cleaning Of Boiler
Biodom C15 | instructions for use, maintenance and installation | February 2019 DO NOT use the pellet boiler as support or a fastening item. Do not leave the container cover • open; DO NOT touch the painted surfaces of the boiler during operation;... - Page 31 Biodom C15 | instructions for use, maintenance and installation | February 2019 2. An opening for inserting a heating element for incineration of fuel. 1. In order to optimize the operation of the furnace, the ash must not be collected in the openings.
- Page 32 Biodom C15 | instructions for use, maintenance and installation | February 2019 If you require any explanation do not hesitate and contact your installer. Because the manufacturer has no control of the installer's work, he cannot guarantee performance of his work and maintenance.
-
Page 33: Control And Parts Requiring Maintenance
Biodom C15 | instructions for use, maintenance and installation | February 2019 Figure 12: Cleaning the turbulators Smoke exhaust fan area should be checked and cleaned every six months. Make sure the stove and the ash are cool. Cleaning the interior flue exhaust is done by first removing the cover on the bottom of the box for the ashes and inserting the vacuum cleaner hose through that hole, as to vacuum out the remaining ashes. -
Page 34: Additional Maintenance
Biodom C15 | instructions for use, maintenance and installation | February 2019 GENERAL BOILER CLEANING AFTER THE END OF SEASON OR BEFORE THE START OF SEASON: Ensure that the pellet boiler and ashes in it are cool! Disconnect power supply! At the end of heating season, disconnect the boiler from electrical network. -
Page 35: Pellet Quality Is Very Important
Biodom C15 | instructions for use, maintenance and installation | February 2019 ATTENTION In the event of fire in the flue pipe, all persons and animals must leave the area, then immediately disconnect power supply from the main switch or socket (if it is possible without risk) and call the fire department. -
Page 36: Storing Pellets
Biodom C15 | instructions for use, maintenance and installation | February 2019 ATTENTION The manufacture shall in no way be held liable for damages arising from the use of poor quality pellets, as well as for poor functioning of the boiler due to poor quality of used pellets. -
Page 37: Description And Operation Of Control Device
Biodom C15 | instructions for use, maintenance and installation | February 2019 DESCRIPTION AND OPERATION OF CONTROL DEVICE DESCRIPTION OF KEYBOARD WITH DISPLAY (plastic keyboard) Button - for adjustment Upper display Button + for adjustment ON/OFF push button MENU button... - Page 38 Biodom C15 | instructions for use, maintenance and installation | February 2019 Display during boiler operation in burning phase Upper display: upper display alternately shows: BURN and then P5D5, where means actual current operation power set operation power Lower display:...
- Page 39 Biodom C15 | instructions for use, maintenance and installation | February 2019 MENU button Short press in basic display shows set value of water temperature in the boiler, which can then be modified with buttons + and -. Press and hold for at least 2 seconds to activate menu mode.
-
Page 40: Boiler During Operation
Biodom C15 | instructions for use, maintenance and installation | February 2019 12.1. BOILER DURING OPERATION The display shows current operation phase (e.g. TestFire, HeatUp etc.). Upper display shows set and actual boiler power alternately every 5 seconds. Press button + to increase set power value, and press button – to decrease it. -
Page 41: Time Programme Setting
Biodom C15 | instructions for use, maintenance and installation | February 2019 12.4. TIME PROGRAMME SETTING On your boiler you have the option of setting a daily-weekly timer. You can program up to 3 time framed ON/OFF for each day. To set a daily-weekly timer on the boiler, you need to do the following: 1. - Page 42 Biodom C15 | instructions for use, maintenance and installation | February 2019 DAY1 7:30 9:30 12:30 14:30 8:30 10:00 15:30 17:30 DAY7 16:30 22:45 17:30 21:30 Figure 14: Diagram of timer settings...
- Page 43 Biodom C15 | instructions for use, maintenance and installation | February 2019 Figure 15: Display of navigation in Timer menu...
-
Page 44: Indications And Messages On Display
Biodom C15 | instructions for use, maintenance and installation | February 2019 12.5. INDICATIONS AND MESSAGES ON DISPLAY Indication on Explanation of message and status of the boiler display The boiler is at a standstill. 1 2 :5 3 The boiler is at a standstill, but the time programme is active and will start °... - Page 45 Biodom C15 | instructions for use, maintenance and installation | February 2019 When water temperature in the boiler, even with minimum power, reaches set COOL temperature, the boiler enters phase COOL FLUID and cools down. The boiler FL UID restarts automatically when the water in the boiler cools down under set value.
-
Page 46: Menu
Biodom C15 | instructions for use, maintenance and installation | February 2019 MENU When holding MENU button, menus scroll. To select a certain menu, release the button when it is displayed. Descriptions of individual menus are provided below:... - Page 47 Biodom C15 | instructions for use, maintenance and installation | February 2019 Figure 16: Menu description...
-
Page 48: Scheme Of Electronic Control Panel Of The Boiler
Biodom C15 | instructions for use, maintenance and installation | February 2019 SCHEME OF ELECTRONIC CONTROL PANEL OF THE BOILER Figure 17... -
Page 49: Hydraulic Scheme
Biodom C15 | instructions for use, maintenance and installation | February 2019 14.1. HYDRAULIC SCHEME Figure 18... -
Page 50: Alarm Statuses
Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM STATUSES ALARM FIRE Unsuccessful ignition Are there pellets in Fill the container with pellets the container? Mandatory use of pellets up to 30mm! Is the burner 1. Clean the burner clean? 2. - Page 51 Biodom C15 | instructions for use, maintenance and installation | February 2019...
- Page 52 Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM PRESS UPRS YES – it has underpressure UPRS NO – it doesen't have underpressure No underpressure in the (there is a possibility of a defective boiler HUBA) 1.
- Page 53 Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM DIRTY Fan 1 reached maximum speed, but the air flow is insufficient 1. Secure the air intake in the boiler room 2. Check entry point of air into boiler 3.
- Page 54 Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM STB Safety thermostat is activated 1. Cool the boiler and press STB button again 2. If the error remains, check set boiler temperature Is the boilers temperature above...
- Page 55 Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM TC1 Electronic does not detect flue gas sensor Service 1. Replace the sensor 2. Replace the electronic Is the sensor connected? Connect the sensor to correct position on...
- Page 56 Biodom C15 | instructions for use, maintenance and installation | February 2019 ALARM NTC1 Electronic does not detect boiler water temperature sensor Service 1. Replace the sensor 2. Replace the electronic Is the sensor connected? Connect the sensor to correct position on...
-
Page 57: Information Regarding Destruction And Disposal Of Boiler
Biodom C15 | instructions for use, maintenance and installation | February 2019 16. INFORMATION REGARDING DESTRUCTION AND DISPOSAL OF BOILER Destruction and disposal of pellet boiler is sole responsibility of the owner, who must act in accordance with laws in force in his country regarding safety, respect and protection of environment. -
Page 58: Instructions For First Start-Up
Biodom C15 | instructions for use, maintenance and installation | February 2019 17. INSTRUCTIONS FOR FIRST START-UP Biodom C15 is a combustion device for heating with pellets. Benefits of combustion device Biodom C15 lie in advanced technology that enables automatic identification of oxygen contents in air, automatic identification of flue draught and automatic identification of pellet quality. - Page 59 – temperature of smoke gases and r – temperature of return line (in lower display), then goes to: "Fuel igni" – ignition of combustion device Biodom C15 (upon first ignition, ignition phase can • last longer, even up to 10 minutes) lasting approximately 5 minutes, alternately displaying P0 d5 in upper display and temperature in lower display, then goes to: "Igni test"...
- Page 60 "Cool flui" – state of shutting down, indicated on the display when combustion device Biodom • C15 reaches set temperature of heating water in the boiler with addition for regulation (if the temperature of heating water is set to 70 °C, the boiler enter "cool flui" state at 75 °C). When the boiler finishes "Cool flui"...
-
Page 61: Warranty Conditions
• WARRANTY TIME CONDITIONS: Warranty for all Biodom products is valid for 24 months from the date of first start-up, given that a regular maintenance inspection is performed no later than 12 months from the date of start-up. GENERAL WARRANTY CONDITIONS: 1. - Page 62 • • if defects or faults arise on the heating device Biodom due to defects on equipment of other manufacturers. Liability of company Company Biodom is limited to unit supply. Unit must be installed properly in accordance with manufacturer instructions, as well as with laws in force.
- Page 63 Biodom C15 | instructions for use, maintenance and installation | February 2019 No reimbursement is acknowledged for the period of time, during which the product could not be used. Company Biodom is not liable for any mistakes in the instructions. We reserve the right to changes without any prior notice.
- Page 64 Biodom C15 | instructions for use, maintenance and installation | February 2019 OVERVIEW OF SERVICES SERVICE 1 (SERVICE IN THE WARRANTY PERIOD) NUMBER OF REPORT ON ANNUAL REVIEW OF BOILER: TYPE OF WORK: REGULAR MAINTENANCE REGULAR MAINTENANCE +3 RECLAMATION ENERGENT MANUFACTURER:...
- Page 65 Biodom C15 | instructions for use, maintenance and installation | February 2019 SERVICE 4 NUMBER OF REPORT ON ANNUAL REVIEW OF BOILER: TYPE OF WORK: REGULAR MAINTENANCE REGULAR MAINTENANCE +3 RECLAMATION ENERGENT MANUFACTURER: OTHER: CLIENTS SIGNATURE: STAMP AND SIGNATURE OF SERVISER:...
- Page 71 Biodom Europe Website: www.biodom.eu E-Mail: info@biodom.eu...
