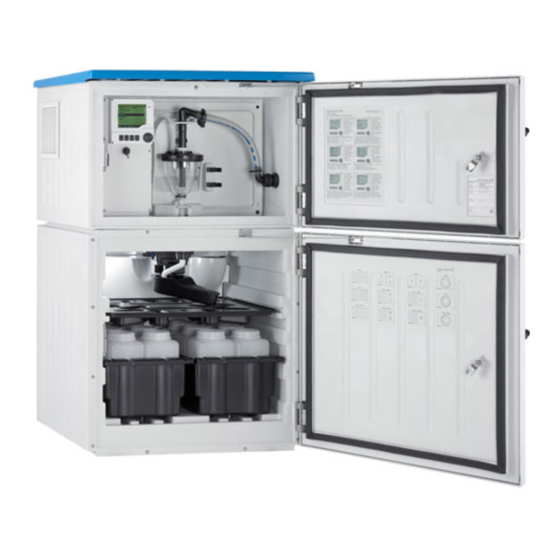

Endress+Hauser Liquistation CSF33 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Endress+Hauser Manuals
  4. Laboratory Equipment
  5. Liquistation CSF33
  6. Operating instructions manual

Endress+Hauser Liquistation CSF33 Operating Instructions Manual

Automatic sampler for liquid media
Hide thumbs Also See for Liquistation CSF33:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
Liquistation CSF33
Automatic sampler for liquid media
Operation & settings
Liquistation CSF33
BA487C/07/EN/14.11
71134634
Valid as of:
Software version 01.02.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liquistation CSF33 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Liquistation CSF33

Summary of Contents for Endress+Hauser Liquistation CSF33

  • Page 1 Operating Instructions Liquistation CSF33 Automatic sampler for liquid media Operation & settings Liquistation CSF33 BA487C/07/EN/14.11 71134634 Valid as of: Software version 01.02.00...
  • Page 2 Operation concept a0013353-en a0013354-en Fig. 1: Pressing the soft key: selecting the menu directly Fig. 2: Turning the navigator: moving the cursor in the menu a0013355-en a0013356-en Fig. 3: Pressing the navigator: launching a function Fig. 4: Turning the navigator: selecting a value (e.g. from a list) a0013357-en a0013358-en Fig.

  • Page 3: Table Of Contents

    Liquistation CSF33 Table of contents About this manual ..4 General settings ... . 5 Basic settings ..... . . 5 Date and time .

  • Page 4: About This Manual

    About this manual Liquistation CSF33 About this manual This manual gives a detailed account of all the configuration options in the "Setup" menu. A description of the following menus is provided here: • Inputs – Input configuration • Outputs – Output configuration –...

  • Page 5: General Settings

    Liquistation CSF33 General settings General settings Basic settings Path: Menu/Setup/General settings Function Options Info Device tag Customized text, 20 characters Select any name for your controller. Use the TAG name for example. Temperature unit Options • °C • °F • K Factory setting °C...

  • Page 6: Automatic Hold (Optional)

    General settings Liquistation CSF33 Path: Menu/Setup/General settings/Date/Time Function Options Info Time zone Options If no time is selected, then Greenwich Mean Time • None is used (London). • Choice of 35 time zones Factory setting None Options The controller adapts the summertime/normal time •...
  • Page 7 Liquistation CSF33 General settings Path: Menu/Setup/General settings/Logbooks Function Options Info Logbook ident Customized text Part of the file name when exporting a logbook. Event logbook Options All diagnostic messages are recorded • Off Ring buffer • Ring buffer If the memory is full, the latest entry automatically •...
  • Page 8 General settings Liquistation CSF33 Path: Menu/Setup/General settings/Logbooks Function Options Info Add new logbook Action Only if you want to create another data logbook immediately. You add a new data logbook at a later data using New. Ready Action This allows you to exit the menu New.
  • Page 9 Liquistation CSF33 General settings Path: Menu/Setup/General settings/Logbooks Function Options Info X-Description Options Decide whether a description should be displayed for • Off the axes and whether grids should be shown. In Y-Description • On addition, you can also decide whether a pitch should be displayed.

  • Page 10: Configuring The Sampling Depending On The Device Version

    General settings Liquistation CSF33 Configuring the sampling depending on the device version The list of functions displayed depends on the device version selected. Functions marked available in device versions with a vacuum pump. Functions marked are available in device versions with a peristaltic pump. Functions marked are available in device versions with a distributor plate.
  • Page 11 Liquistation CSF33 General settings Path: Menu/Setup/General settings Function Options Info Liquid detection Options If "Semiautomatic" is selected, the purge times and • Automatic intake times can be defined separately. • Semiautomatic • Off Factory setting Automatic Rinse cycles 0 ... 3 The suction line is rinsed with the sample up to 3 times.
  • Page 12 General settings Liquistation CSF33 Path: Menu/Setup/General settings Function Options Info Sample temperature (optional) Temp. control Options • Off Temperature control of the sample compartment • On Factory setting Economy operation Options • Off Temperature control only activated when the program •...

  • Page 13: Extended Setup

    Liquistation CSF33 General settings Extended setup 2.6.1 Diagnostics settings This branch, along with the same functions, can be found in different "Extended setup" menus. The list of diagnostic messages displayed depends on the path selected. There are device-specific messages, and messages that depend on what sensor is connected.
  • Page 14 General settings Liquistation CSF33 2.6.2 Data management Firmware update Please contact your local sales office for information on firmware updates available for your controller and its compatibility with earlier versions. Your current firmware version can be found at: Menu/Diagnostics/System information/Software version.
  • Page 15 Liquistation CSF33 General settings Loading the setup You can load a setup you have saved quickly and easily: Insert the SD card into the controller card reader. Go to: Menu/Setup/Data management/Load setup. --> A list of all the setups on the SD card is displayed.

  • Page 16: Inputs

    Inputs Liquistation CSF33 Inputs The CSF33 sampler has 2 binary inputs and 2 current inputs as standard. All inputs are galvanically isolated from one another. Binary inputs The binary inputs are used to control the sampler using external signals. With the CSF33, the auxiliary voltage of 24 V DC from the terminal block in the connection compartment of the sampler can be used for floating contacts (see BA479C "Commissioning").
  • Page 17 Liquistation CSF33 Inputs Path: Menu/Setup/Inputs Function Options Info Totalized flow Current totalized flow - - - The totalized flow values are displayed. Reset totalizer Options Manual: • Manual Reset the counter manually. • Automatic Automatic: • At program start The counter is reset automatically at intervals.
  • Page 18 Inputs Liquistation CSF33 Path: Menu/Setup/Inputs Function Options Info Intensity Options Select the intensity per minute, hour or day according • mm/min to your requirements. • mm/h • mm/d Factory setting mm/min Totalized rainfall Totalized rainfall - - - The totalized rainfall is displayed.
  • Page 19 Liquistation CSF33 Inputs Path: Menu/Setup/Inputs Function Options Info Operation Options No operation: • No operation No action is executed. • Start sampling Start sampling: • Program start A pulse triggers sampling. • Program stop • Program duration Program start: • Program pause A pulse starts a program.

  • Page 20: Current Inputs

    Inputs Liquistation CSF33 Current inputs The current input must be assigned an analog signal for the functions described. Active and passive current inputs are available to connect 2-wire or 4-wire devices. For the correct wiring of the current inputs, see: BA479C "Commissioning"...
  • Page 21 Liquistation CSF33 Inputs Path: Menu/Setup/Inputs Function Options Info Meas. value format Factory setting Specify the number of decimal places for the flow. Low flow limit 0 to 10000 l/s The set limit value prevents sampling if the flow falls below this value (only for time/flow-paced sampling).
  • Page 22 Inputs Liquistation CSF33 Path: Menu/Setup/Inputs Function Options Info If the Input mode Parameter is selected: Meas. value format Factory setting Specify the number of decimal places. Parameter name Customized text Assign a name. Unit of measure Customized text Enter the engineering unit.

  • Page 23: Programming

    Liquistation CSF33 Programming Programming The CSF33 sampler offers users a wide range of options for configuring individual sampling programs. The 3 different program types (Basic, Standard and Advanced) make it easy for you to find the right program for your application.
  • Page 24 Programming Liquistation CSF33 The graphic below explains the various ways sampling can be controlled on the basis of a flow curve: a. Flow curve b. Time-paced sampling A constant sampling volume (e.g. 50 ml) is taken at steady intervals (e.g. every 5 min).
  • Page 25 Liquistation CSF33 Programming The following table explains the various types of sampling using specific examples. Type of sampling Example Info Time-paced • Sampling interval: 5 min This type of sampling remains constant over time • Sampling volume: 50 ml and does not take changes in flow or polluting load •...
  • Page 26 Programming Liquistation CSF33 Type of sampling Example Info Time/flow-paced Controlled via current input Samples are taken at set intervals with a variable (only possible with • Signal: 0 to 20 mA sampling volume. The sampling volume is peristaltic pump) • Sampling interval: 10 min calculated from the flow rate.

  • Page 27: Program Type: Basic

    Liquistation CSF33 Programming 4.1.1 Bottle synchronization The bottle synchronization setting is possible with all types of program. In addition, bottle synchronization can be switched via an external signal. Bottle synchronization is only possible with a bottle change after a specific time and not with a bottle change after a number of samples.
  • Page 28 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Current program: Read only The last sampling program to be created or used is displayed. Status: Read only Display "Active": The sampling program has been started and the device takes a sample as per the set parameters.
  • Page 29 Liquistation CSF33 Programming 4.2.1 Settings with a time-paced Basic program Settings with the Basic program type with 1 bottle Sampling mode = "Time paced CTCV" Path: Menu/Setup/General settings Function Options Info Sampling interval 1 to 5999 min Set the sampling interval.
  • Page 30 Programming Liquistation CSF33 Settings with the Basic program type with multiple bottles Sampling mode = "Time paced CTCV" Path: Menu/Setup/General settings Function Options Info Sampling interval 1 to 5999 min Set the sampling interval. Factory setting 10 min Dosing volume (for version with Vacuum pump: Set the dosing volume or the sampling volume.
  • Page 31 Liquistation CSF33 Programming Path: Menu/Setup/General settings Function Options Info Bottle synchronization Options None: • None The time of sampling and bottle change are not • 1. bottle change time synchronized. • 1. Time of change + bottle 1. bottle change time: number Sampling starts with the first bottle.
  • Page 32 Programming Liquistation CSF33 4.2.2 Settings with a flow-paced Basic program Settings with the Basic program type with 1 bottle Sampling mode = "Flow paced VTCV" Path: Menu/Setup/General settings Function Options Info Flowmeter input Options Select the flow input. • No flow input configured The binary input or the current input must be configured •...
  • Page 33 Liquistation CSF33 Programming Path: Menu/Setup/General settings Function Options Info Stop condition Options Program end: • Program end The device stops sampling automatically once it has run • Continuous through the set program. Factory setting Continuous: Program end The device runs through the set program continuously in an infinite loop.
  • Page 34 Programming Liquistation CSF33 Path: Menu/Setup/General settings Function Options Info Samples per bottle 1 to 9999 Set the number of samples. Factory setting If Bottle change mode Time is selected: Time interval 00:02 to 99:59 HH:MM Set the time (in hours and minutes) after which the system should change to the next bottle.
  • Page 35 Liquistation CSF33 Programming 4.2.3 Settings for the time/flow-paced Basic program (only for version with peristaltic pump) Settings with the Basic program type with 1 bottle Sampling mode = "Time/flow paced CTVV" Path: Menu/Setup/General settings Function Options Info Sampling volume input Options Select the sampling volume input.
  • Page 36 Programming Liquistation CSF33 Path: Menu/Setup/General settings Function Options Info Start condition Options The sampling program can be started either immediately • Immediate or at a specific, configurable time. • Date/time Factory setting Immediate If Start condition Date/time is selected: Start date 01.01.2000 to 31.12.2099...
  • Page 37 Liquistation CSF33 Programming Path: Menu/Setup/General settings Function Options Info If Current input is selected for the sampling volume input: Sampling volume 20mA 10 to 10000 ml or maximum Set what sampling volume should be grabbed at 20 mA. bottle volume (depending on...
  • Page 38 Programming Liquistation CSF33 Path: Menu/Setup/General settings Function Options Info Start date 01.01.2000 to 31.12.2099 Set the start date for the sampling program. The format depends on the option configured under general settings. Factory setting DD.MM.YYYY Start time 00:00:00 to 23:59:59 Set the time when the sampling program is started.

  • Page 39: Program Types: Standard And Advanced

    Liquistation CSF33 Programming Program types: Standard and Advanced A Standard program can comprise a maximum of 5 subprograms. An Advanced program can comprise a maximum of 24 subprograms. These subprograms can be run simultaneously or consecutively. Each event subprogram can consist of up to 3 conditions.
  • Page 40 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Start flow sum 1.000 to 9999.000 m³ Set the start volume. Factory setting 10.000 m³ Stop condition Options Program end: • Program end The device stops sampling automatically once it has run •...
  • Page 41 Liquistation CSF33 Programming Path: Menu/Setup/Sampling programs Function Options Info If Individual dates is selected for "Enable subprogram": Individual dates Set the start and stop times for the subprogram. Enter a new date via "INSERT". Delete a date via "DELETE". You can assign a maximum of 25 start and stop dates.
  • Page 42 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Start time 00:00:00 to 23:59:59 Set the time for the 1st interval. The format depends on the option configured under general settings. Factory setting HH:MM:SS (24h) Activity time 00:01 to 99:59 HH:MM Specify how long the subprogram should be active in hours and minutes.
  • Page 43 Liquistation CSF33 Programming 4.3.2 Settings for the Advanced program Path: Menu/Setup/Sampling programs Function Options Info Setup program A list of all the programs created is displayed. For this reason, it is often helpful to add an "A" for Advanced in the program name.
  • Page 44 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Start flow sum 1.000 to 9999.000 m³ Set the starting volume. Factory setting 10.000 m³ If the Start condition selected is External start: Start signal input Options Select the program start input.
  • Page 45 Liquistation CSF33 Programming Path: Menu/Setup/Sampling programs Function Options Info If Stop condition External signal is selected: Stop signal input Options Select the program stop input. • No program stop input The binary input must be configured for this function. configured Only the inputs configured as a program stop input are •...
  • Page 46 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Example: - Bottle: 1 - Delta (=waiting time): 01:00:00 - Volume: 100 ml - Bottle: 2 - Delta (=waiting time): 00:10:00 - Volume: 100 ml 1. Sampling one hour after program start: 100 ml in bottle 1 2.
  • Page 47 Liquistation CSF33 Programming Path: Menu/Setup/Sampling programs Function Options Info Start time Options No delay: • No delay The subprogram is started when the program is enabled. • Date/Time Date/Time: Factory setting Set the start date and start time for enabling the No delay subprogram.
  • Page 48 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs Function Options Info Range lower value Range of adjustment and fac- Operating mode="In range check" or "Out of range tory setting check" Range upper value Depends on the measured value • The event is triggered if the range lower value + hysteresis is exceeded for the switch-on duration.
  • Page 49 Liquistation CSF33 Programming Path: Menu/Setup/Sampling programs Function Options Info Synchronize samplings Options To subprogram start • To subprogram start The intervals defined in the sampling mode are enabled • To clock when the subprogram is started. Factory setting To clock...
  • Page 50 Programming Liquistation CSF33 4.3.3 Programming example: Limit value-controlled program The following example explains how to program a limit value-controlled sampling program with flow-paced sampling into individual bottles above the limit value and time-paced sampling into individual bottles below the limit value. When the subprogram changes, the system switches to the next bottle.
  • Page 51 Liquistation CSF33 Programming Path: Menu/Setup/Sampling programs/Setup program/New Function Entry for sample program Start time No delay Activation event Number of events Event Editor 1 Source of data Current input S:1 Measured value Flow rate Operating mode Upper limit Limit value...
  • Page 52 Programming Liquistation CSF33 Path: Menu/Setup/Sampling programs/Setup program/New Function Entry for sample program Measured value Flow rate Operating mode Lower limit Limit value 150 l/s Hysteresis 5 l/s Start delay Release delay "ESC" - "ESC" Sample at enable Sample at disable...

  • Page 53: Outputs

    Liquistation CSF33 Outputs Outputs Binary outputs The basic version of the device always has two binary outputs. Possible application --> For outputting a manipulated variable to connected actuators Path: Menu/Setup/Outputs Function Options Info OutputBinary Options The following functions depend on the option selected.
  • Page 54 Outputs Liquistation CSF33 Path: Menu/Setup/Outputs Function Options Info Event Options Program enabled: • Program enabled A pulse is switched when the sampling program starts. • End of program End of program: • Sampling start A pulse is switched when the sampling program ends.
  • Page 55 Liquistation CSF33 Outputs Path: Menu/Setup/Outputs Function Options Info Operating mode Options As assigned: • as assigned If this option is selected, the diagnostics messages which • Namur M you have individually assigned to the binary output are • Namur S output via the binary output.

  • Page 56: Data Administration

    Data administration Liquistation CSF33 Data administration Firmware update Please contact your local sales office for information on firmware updates available for your controller and its compatibility with earlier versions. Your current firmware version can be found at: Menu/Diagnostics/System information/Software version.

  • Page 57: Loading The Setup

    Liquistation CSF33 Data administration Loading the setup You can load a setup you have saved quickly and easily: Insert the SD card into the controller card reader. Go to: Menu/Setup/Data management/Load setup. --> A list of all the setups on the SD card is displayed.

  • Page 58: Index

    Liquistation CSF33 Index Activation code......15 Outputs Binary outputs......53 Basic program .
