Before this model has being significantly changed to another new version, the parts, appearance and the existing version can be developed and modified that would lead to a slight difference from the original design. DTS reserve ALL the Rights of change of parts and contents WITHOUT...

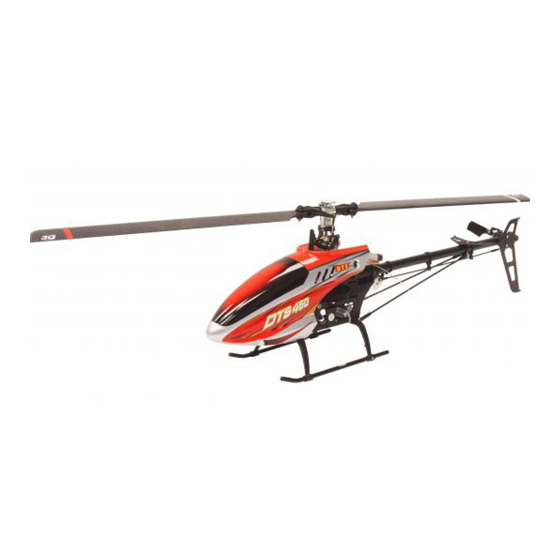

Foreword Thank you for choosing DTS's product. For better understand usage of DTS450 helicopter, please read this manual carefully before installation and operation. This can ensure proper usage and safe operation! For your convenience of adjustment, maintenance and other operation, please keep this manual in a proper manner.
5.Do Not re-equip, upgrade or repair your helicopter with the accessories outside the DTS parts catalog in order to ensure the safety of the model structure! 6.Keep people and objects away from the spinning unit and parts in case of damage or injury!
Electronic Parts and Connection Procedure Aileron Servo Pitch Servo GWY2013 Elevator Servo Receiver 3-axis Gyro Li-Po Battery Rudder Servo Brushless ESC Brushless Motor Receiver Connection Procedure Power Supply Plug Aux 02 Aux 01 Pitch Servo Plug Gyro Gain Signal Plug Gyro Rudder Plug Elevator Servo Plug Aileron Servo Plug...
Pre-Flight Controls Test 1.Control Test: Throttle Push up the throttle stick slowly until the motor rotate. Make sure that the motor rotates clockwisely and the main blade rotates anti-clockwisely. Throttle Position: Right Throttle Position: Left Please don't push the throttle stick upward over 1/5. The motor will spins at high velocity if the throttle stick is over pushed.
Page 7
3.Control Test: Pitch (only aerobatics use) Swashplate's upward and Throttle Position: Right Throttle Position: Left downward movement 4.Control Test: Aileron (The rudder's control is the same in both Swashplate's Left and Right declining movement left and right-hand throttle transmitter) Rear View Rear View Rear View...
Page 8
5.Control Test: Rudder (The rudder's control is the same in both Tail rotor blades pitch change left and right-hand throttle transmitter) 6.Gyro adjustment Disconnect the connection between ESC and motor, turn on the power of the transmitter and helicopter, move the pushrod to check the sercos direction. 1.
Flight Operation Procedure 1.Take Off Procedure Insert the battery to the battery notch Fix the battery's position with the bandage Mode1 Mode2 Adjust the antenna to the shown position. Pull the Connect helicopter's electricity throttle to the most downward position then switch on the transmitter.
Blade tracking is an important step to affect the flight performance. Main rotor blades that are out of track may cause vibration and instability. Although the main rotor blades of each DTS 450 models are tracked at the factory, minor adjustment to blade tracking may be required after blade changes.
Tail Drive Belt Adjustment Loosen Belt is one of the reason for tail-lock fail besides gyro setting. Adjust by following the above: Loosen the screws that mounting the tail boom to the main frame, then pull the tail boom backward. Pay attention to the belt's elasticity.
Hiller Control Arms Assemble Procedure Name Specification Quantity Washout Control Arm 2* 3*1 Brass Spacer 2* 5*2 Bearing 2* 3.8*0.4 Step Washer Linkage Ball Phillips Pan Head Bolt (M2*7.5mm)x4 (M1.4*4mm)x4 M2*14 Hexagon Socket Head Screw Washout Control Arm Link Bearing 1.5* 4*2 ST1.4*4 Phillips Pan Head Bolt...
Main Frame Assemble Procedure Name Specification Quantity Canopy Mount Rod Main Frame, Right Canopy Mount Rod Connector Pan Washer Head Phillips Screw Hexagon Socket Head Screw Nylon Insert Lock Nut M2.0 (M2x12mm)x4 (ST2*6mm)x2 2* 5*0.5 Spacer Tail Drive Pulley Cap Tail Drive Belt Pan Head Phillips Screw Pan Head Phillips Screw...
Main Gears Assemble Procedure Name Specification Quantity CAUTION One way bearing sleeve One Way Bearing 6* 10*12 Apply a little amount of T43 thread lock ST2*6 when fixing a metal part. Hexagon Flat Head Screw Please confirm that the screw is fastened Main Gear 140T tightly before use.
Tail Boom Assemble Procedure Name Specification Quantity CAUTION Tail Boom Drive belt illustration Tail Servo Boom Mount 1.Check to rotate the belt 90 degrees when Back assembling Tail Pushrod Guide 2.Belt tension:Recommend to lightly tighten Horizontal Fin Mount Front the drive belt after assembling tail boom Tail Case, Right to avoid vibration,belt friction and rotation slip...
Push-rod Assemble Procedure Name Specification Name Specification Quantity Quantity Pan Head Phillips Screw ST1.7*4 Tail Boom Support End, Angled Tail Boom Support Rod 3*250 Tail Linkage Tail Boom Support End, Straight Tail Pushrod 2*270 Flange Head Phillips Screw ST2*8 Tail Pushrod Joiner 1.4*26 Hexagon Socket Head Screw M2*16...
Power System Assemble Procedure Name Specification Quantity Servo Servo Arm Linkage Ball S 4*6.5 Pan Head Phillips Screw Pan Head Phillips Screw ST1.7*4 (ST1.7*4mm)x3 Flange Head Phillips Screw Flange Head Phillips Screw ST2*6 (ST2*6mm)x2 Anti Rotation Bracket Flange Head Phillips Screw ST2*8 Linkage Ball Ball Link...
Spare Parts List DTS004055 DTS004057 DTS004058 DTS004059 Main Blade Set Main Rotor Head Set Main Blade Grip Set Washout Control Arm Set DTS003960 DTS003963 DTS003966 DTS003967 Spindle Washout Control Arm Set Linkage Rod Set Swashplate Set DTS003968 DTS003970 DTS003971 DTS003969 O-ring Secondary Gear Main Shaft Set...
Page 24
DTS003984 DTS003985 DTS003986 DTS003987 Horizontal Fin Mount Set Horizontal and Vertical Fin Tail Pushrod Set Landing Skid Set DTS003988 DTS003990 DTS003991 DTS003989 Tail Boom Support Set Tail Control Arm Set Tail Shaft Set Brushless Motor DTS003992 DTS003941 DTS003995 DTS003993 3*6*2.5 5*10*4 Gear Thrust Bearing...
Page 51
Global Distribution Office Zonda Hobby Technologies Electronic Ltd Workshop No.1, 1st Floor, Kam Hon Industrial Building, No.8 Wang Kwun Road, Kowloon Bay, Kowloon, Hong Kong Tel : 852-3160 8886 Fax : 852-3160 8884 Email: Michael@zondahobby.com, Jason@zondahobby.com Official Website: www.zondahobby.com...
