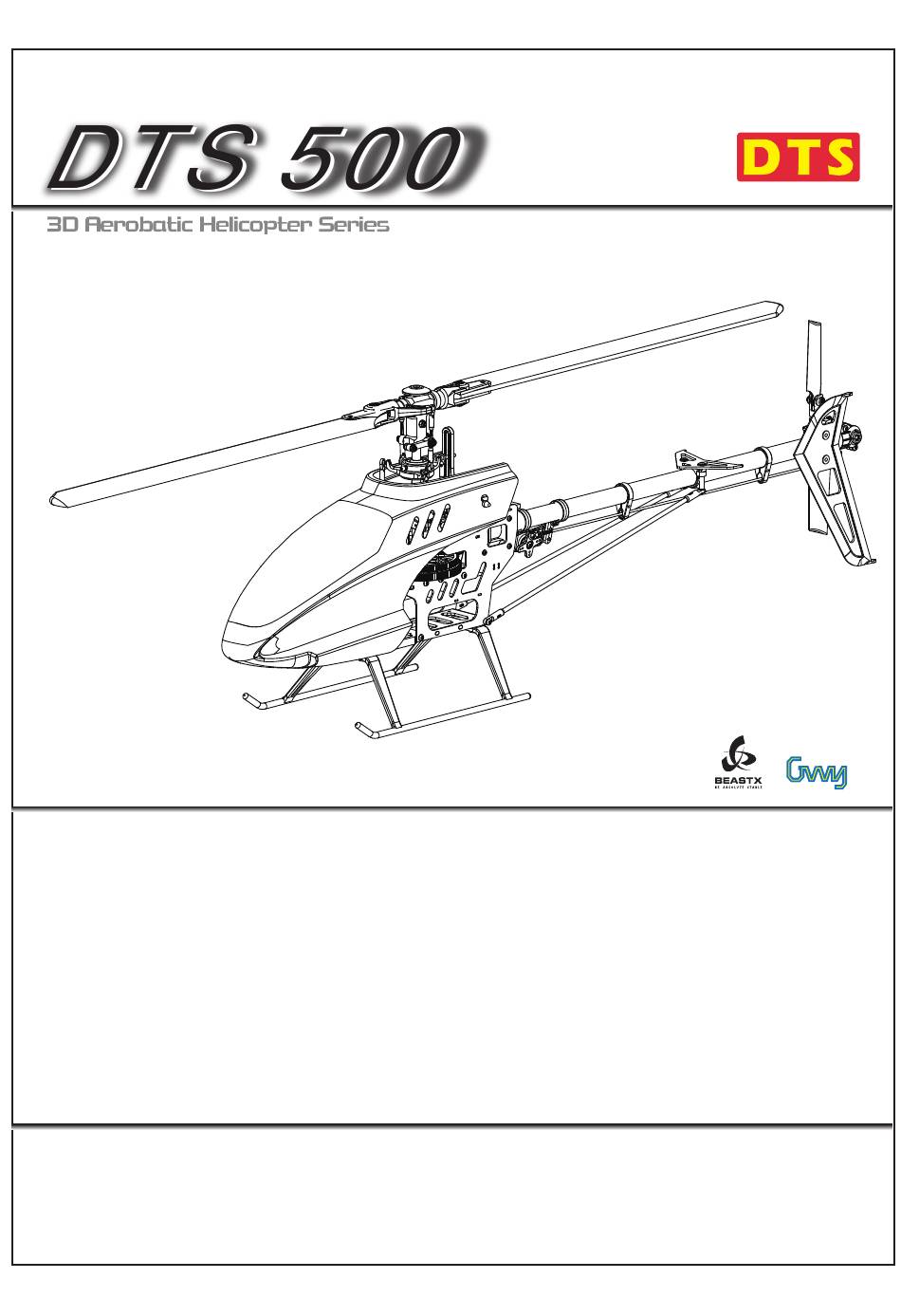

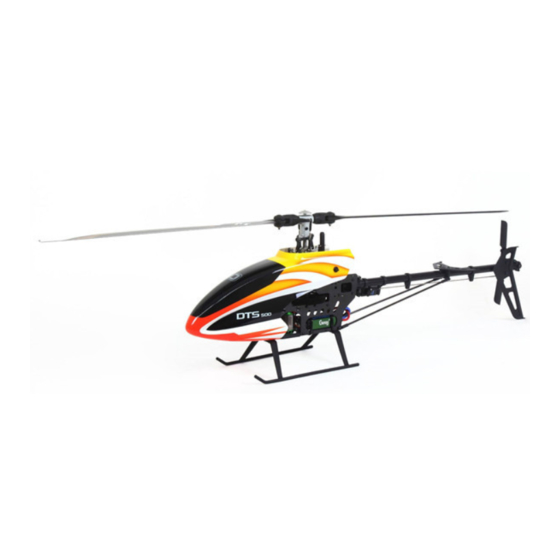

Page 1
Before this model has being significantly changed to another new version, the parts, appearance and the existing version can be developed and modified that would lead to a slight difference from the original design. DTS reserve ALL the Rights of change of parts and contents WITHOUT...
Page 2
5.Do Not re-equip, upgrade or repair your helicopter with the accessories outside the DTS parts catalog in order to ensure the safety of the model structure! 6.Keep people and objects away from the spinning unit and parts in case of damage or injury!
Foreword Thank you for choosing DTS’s product. For better understanding and usage of DTS500, please read the manual carefully before installation and operation. For your convenience of adjustment, maintenance and other operation, please keep the manual in a proper manner. For further information, please visit Zonda Hobby official website: http://www.zondahobby.com...
Frame Assemble Procedure Apply amount of T43 thread-locking fiuld Apply little amount lubricants Bearing installed correctly Setup diagram of main shaft Description Specification need Main Shaft Retaining 8* 14*4 3pcs Collar Pen Head Philips Screw ST3*10 24pcs Main Frame 2pcs Servo Hub 2pcs Upper Bearing Block Set...
Page 8
Description Specification need Apply amount Pen Head Philips ST3*10 4pcs of T43 thread- Screw Landing Skid 1pcs locking fiuld Apply little am- ount lubricants Lock the landing skid by pen head philips screw. Rubber pad Description Specification need Install the rubber pads to all the servos first. 4pcs Pen Head Philips Screw ST3*10...
Page 9
Description Specification need Apply amount Pen Head Philips M3*18 1pcs of T43 thread- Screw locking fiuld Kimi Screw M3*3mm 2pcs Main Shaft Retaining 1pcs Apply little am- Collar ount lubricants 1pcs Nylon Lock Nut Install the main shaft retaining collar into the main shaft.
Page 10
Description Specification need Apply amount of T43 Canopy Mount Rod 2pcs thread-locking fiuld 2pcs Kimi Screw M3*12 Apply little amount lubricants Anti Rotation Bracket 1pcs Use M*12 kimi screw to fasten the canopy mount rod and the anti rotation bracket onto the main frame.
Power System Assemble Procedure Description Specification need Apply amount Pan Head Screw M3*10 6pcs of T43 thread- locking fiuld 3* 7*0.8 6pcs Spacer Kimi Screw M3*3 2pcs Apply little am- ount lubricants Pinion Gear 1pcs Upper Bearing Block Set 1pcs 1320KV Brushless Motor 1pcs...
Tail System Assemble Procedure Description Specification need Apply amount of T43 Ball Link 10pcs thread-locking fiuld Apply little amount lubricants Pushrod M2.3*36 2pcs Pushrod M2.3*32 3pcs Based on the left diagram, install the ball links with the pushrod. The size and the Pushrod A *2 Pushrod C 46.5...
Page 13
209.5370 Description Specification need Apply amount of T43 Pen Head Philips ST3*10 2pcs Screw thread-locking fiuld Ball Linkage 1pcs Apply little amount lubricants 3pcs Trust Bearing 4* 8*3 1pcs Tail Drive Belt S2M 1028 Tail Boom 14.8* 16*451 1pcs Trust Bearing 2pcs 4* 7*2.5 Tail Rotor Pitch Lever...
Page 14
Apply amount of T43 thread-locking fiuld Apply little amount lubricants Tail Pushrod Description Specification need Plastic Ball Link 2pcs Hexagon Socket 2pcs ST3*10 Head Screw Tail Servo Boom 2pcs Mount M2.2*369 1pcs Tail Pushrod Pushrod Slide 2pcs 2pcs Tail Pushrod Support Hexagon Socket ST2.6*8 2pcs...
Page 15
Apply amount of T43 thread-locking fiuld Apply little amount lubricants Parts 073 is consist of tail drive pulley shaft, tail drive gear, tail drive pulley, tail drive pulley cap, Tail blade which was installed and locked by the factory. roatation direction Description Specification need...
Page 16
Description Specification need Hexagon Socket ST3*10 4pcs Apply amount Head Screw of T43 thread- Servo 1pcs locking fiuld Spacer 2pcs Apply little am- Install the servo to tail servo support cross ount lubricants member. (According to left diagram) Description Specification need Hexagon Socket ST3*16...
Page 17
Gyro Apply amount of T43 thread- locking fiuld Double Sided Stickers Apply little am- ount lubricants Tail Servo Elevator Servo Aileron Servo Pitch Servo Description Specification need Hexagon Socket 4pcs ST3*8 Head Bolt 3pcs Servo Arm 4pcs Ball Linkage Nylon Lock Nut 4pcs 1pcs Tail Servo Arm...
Page 18
Apply amount of T43 thread-locking fiuld Apply little amount lubricants Stick the velcro to the bottom side of the battery and battery tray. Then use the battery strap velcro to fix the battery. Use the canopy clip to lock the canopy to the main frame. Finally, connect the canopy mount ends to the canopy grommet.
Transmitter Setting Module Before flying, you need to adjust the transmitter data. We use FUTABA T8FG, JR XG8, SPEKTRUM DX8 transmitter as reference for setting parameter. Note that is a setting reference. The actual settings, please adjust according to your helicopter actual situation. FUTABA T8FG LINKAGE MENU MODEL MENU...
Page 20
SPEKTRUM DX8 SETUP LIST Model Type Swash Type F-Mode Setup Frame Rate Trim Step HELI 1 Servo Normal Flight Mode: F Mode 11ms Thr 5 Ele 0 R Trim 0 Type:Common Ail 0 Rud 0 L Trim 0 Hold: Hold DSMX FUNCTION MODE D/R &...
MICROBEAST 3 Axis Gyro Parameter Setting SETUP MENU Menu LED solid Status-LED: Purple Red Flashing Red Solid Blue Flashing Blue Solid upright Mounting orientation fl at (horizontal)* (vertical) 50 Hz 120 Hz 200 Hz* Swashplate servo - frequency User defined 65 Hz 165 Hz User defined...
Pre-Flight Controls Test 1.Control Test: Throttle Push the throttle stick upward till the motor start to spin. Ensure the motor spins anti-clockwisely while the main blade spins clockwisely. Throttle Position: Right Throttle Position: Left Please don't push the throttle stick upward over 1/5. The motor will spins at high velocity if the throttle stick is over pushed.
Page 23
3.Control Test: Pitch (only aerobatics use) Swashplate's upward and downward movement Throttle Position: Left Throttle Position: Right Throttle Position: Left Throttle Position: Right Throttle Position: Left Throttle Position: Right 4.Control Test: Aileron Swashplate's Left and Right declining movement (The rudder's control is the same in both left and right-hand throttle transmitter) Rear View Rear View Rear View...
Page 24
5.Control Test: Rudder Tail rotor blades pitch change (The rudder's control is the same in both left and right-hand throttle transmitter) 6. Gyro adjustment Disconnect the connection between ESC and motor, turn on the power of the transmitter and helicopter, move the pushrod to check the sercos direction.
Page 26
Parts List Description Specification Description Specification need need 430mm,4.0 FK Main Blade Bushing 4* 5*11.4 Hexagon Socket Head Bolt M3*10 Secondary Tail Drive Gear Spacer 3* 7*0.8 Mounting Rod Ball Bearing 5* 10*4 Tail Boom Mount, Right Spacer Tail Drive Belt 8* 11*0.5 S2M 1028 Thrust Bearing...
发射机设置 直升机飞行前必须先设置发射器的相关参数。为了您能更快的享受飞行,我们特选择了FUTABA T8FG、 JR XG8、SPEKTRUM DX8的发射器为例子来设置相关参数,请注意这只是一个举例说明,实际设置请根据 自身的实际情况而定。 FUTABA T8FG LINKAGE MENU MODEL MENU REVERSE Model Type PIT CURVE TYPE HELICOPTER 1AIL 6PIT NORM NORMAL +100 2ELE 7GOV NORM SWASH IDLEUP1 +100 -100 3THR 8NDL NORM RESET IDLEUP2 +100 -100 4RID NORM NORM IDLEUP3...
Page 48
SPEKTRUM DX8 SETUP LIST Model Type Swash Type F-Mode Setup Frame Rate Trim Step HELI 1 Servo Normal Flight Mode: F Mode 11ms Thr 5 Ele 0 R Trim 0 Type:Common Ail 0 Rud 0 L Trim 0 Hold: Hold DSMX FUNCTION MODE D/R &...
Page 58
Global Distribution Office Zonda Hobby Technologies Electronic Ltd Workshop No.1, 1st Floor, Kam Hon Industrial Building, No.8 Wang Kwun Road, Kowloon Bay, Kowloon, Hong Kong Tel : 852-3160 8886 Fax : 852-3160 8884 Email: Michael@zondahobby.com, Jason@zondahobby.com Official Website: www.zondahobby.com...
