Summary of Contents for Nexen AIR CHAMP SSE-450

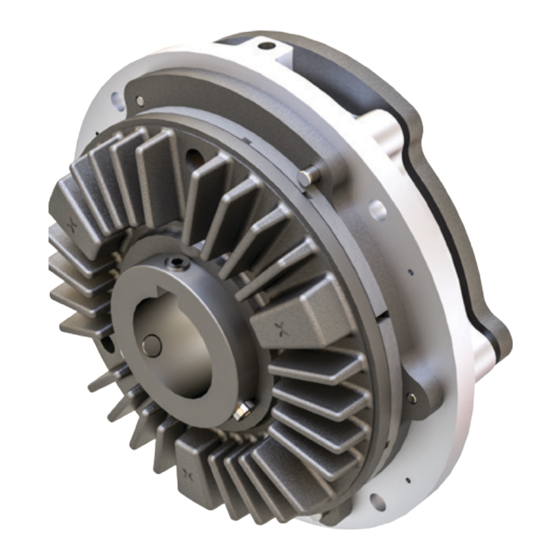

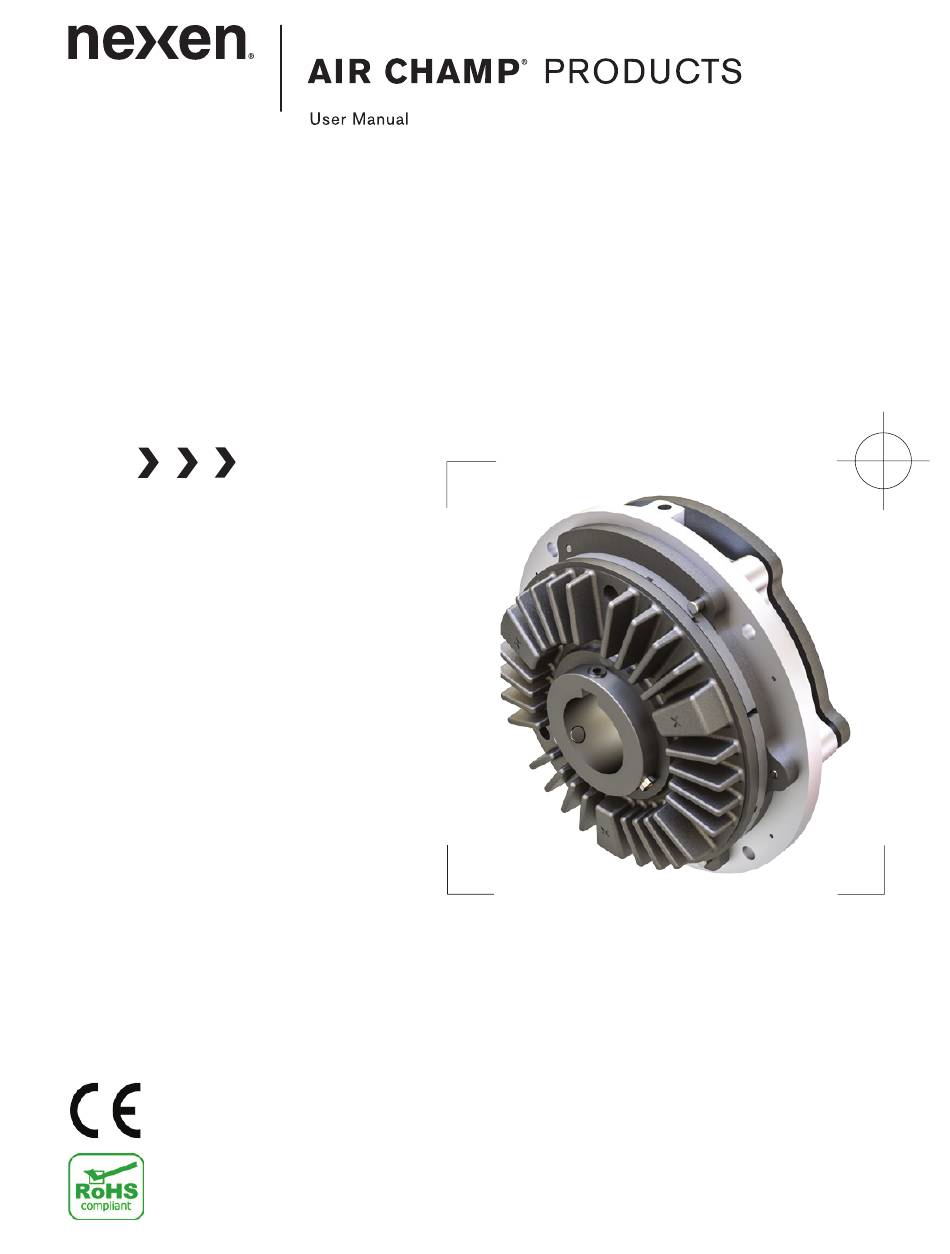

- Page 1 Models SSE-450, SSE-600, SSE-800, and SSE-1000 FORM NO. L-20175-M-1017...
- Page 2 In accordance with Nexen’s established policy of constant product improvement, the specifications contained in this manual are subject to change without notice. Technical data listed in this manual are based on the latest information available at the time of printing and are also subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents General Specifications -------------------------------------------------------------------------------------------------------------------------- 4 General Safety Precautions ------------------------------------------------------------------------------------------------------------------- 4 Installation ------------------------------------------------------------------------------------------------------------------------------------------- 5 Brake Guard Installation ------------------------------------------------------------------------------------------------------------------------ 6 Lubrication ------------------------------------------------------------------------------------------------------------------------------------------- 6 Air Connections ----------------------------------------------------------------------------------------------------------------------------------- 7 Operation -------------------------------------------------------------------------------------------------------------------------------------------- 8 Manual Disengagement ------------------------------------------------------------------------------------------------------------------------- 8 Maintenance ---------------------------------------------------------------------------------------------------------------------------------------- 8 Troubleshooting ------------------------------------------------------------------------------------------------------------------------------------ 9 Parts Replacement: Friction Facings ---------------------------------------------------------------------------------------------------------------------------- 10 Bearing, Compression Springs, and O-Ring Seals --------------------------------------------------------------------------- 10... -
Page 4: General Specifications
CAUTION WARNING Ensure proper guarding of the product is This product has possible pinch used. Nexen recommends the machine builder points. Care should be taken when design guarding in compliance with OSHA 29 interacting with this product. CFR 1910 “Occupational Safety and Health Hazards”. -
Page 5: Installation
INSTALLATION 1. Before mounting, ensure Cylinder (Item 10) has FIGURE 1 adequate clearance to move freely (See Figure 1 and Table 1). Friction Disk Hub (Item 1) 2. Insert the Key (Item 18) into the shaft (See Figure 2). NOTE: Keep torque pin as short as possible. Motor or 3. -
Page 6: Brake Guard Installation
NOTE Note: Nexen pneumatically actuated devices require clean, pressure regulated air for maximum performance and life. All seals in Nexen pneumatically operated devices are lubricated for life, and do not require additional lubrication. However, some customers prefer to use an air line lubricator, which injects oil into the pressurized air, forcing an oil mist into the air chamber. -
Page 7: Air Connections
(Item 22) (See Figure 4). NOTE: The Auxiliary Cooling Option has been removed FIGURE 4 from all standard Nexen S, T and TSE series brakes. It is a passage for compressed air to be connected for increased thermal capacity. If you desire this feature... -
Page 8: Operation
Never exceed maximum operating SSE 450-1000 *1800 speeds listed for your product. (See Table 3). *Consult Nexen for high speed applications. CAUTION CAUTION The temperature limits for this Never exceed life of facing material. Facing life depends on the volume of material and product line are 4.5-104 Degree... -
Page 9: Troubleshooting
TROUBLESHOOTING u l i l o r l o r u f l o i t n i r n i r t n I i t a g i l i t i o l l i t a . -
Page 10: Parts Replacement
PARTS REPLACEMENT FRICTION FACINGS NOTE: Refer to Figure 6. FIGURE 6 Friction Facing (Item 5) 1. Align the holes in the Friction Disc Hub (Item 1) with the Machine Screws (Item 14) holding the split Friction Align holes in Facing (Item 5). Friction Disc Hub (Item 1) with Machine... - Page 11 13. Apply an adequate amount of Loctite 680 to evenly ® coat O.D. of new Bearing (Item 8) and press new The SSE-1000 uses Nexen Shoulder Bearing into Spring Housing (Item 4). Screws only. The Shoulder Screws are specifically designed for high stress and 14.
-
Page 12: Replacement Parts List
REPLACEMENT PARTS LIST The item or balloon number for all Nexen products is used When ordering replacement parts, specify model for part identification on all product parts lists, product designation, item number, part description, and quantity. price lists, unit assembly drawings, bills of materials, and Purchase replacement parts through your local Nexen Distributor. -
Page 13: Accessories
TABLE 9 ACCESSORIES TABLE 10 Brake Guards FIGURE 9 Brake Guard FACING AND REPAIR KITS TABLE 11 Repair Kit w/out Repair & Model Facing Kit Facing Kit Facing kit SSE-450 818974 818870 818700 SSE-600 820574 820370 820200 SSE-800-1 827474 822470 827610 822570 827700... -
Page 14: Warranty
Buyer shall be obligated to pay or which Buyer may incur based upon, related to or arising out of its contracts with its customers or other third parties. In no event shall Nexen be liable for any amount of damages in excess of amounts paid by Buyer for Products or services as to which a breach of contract has been determined to exist.
