Summary of Contents for Erbauer ECSG18-Li

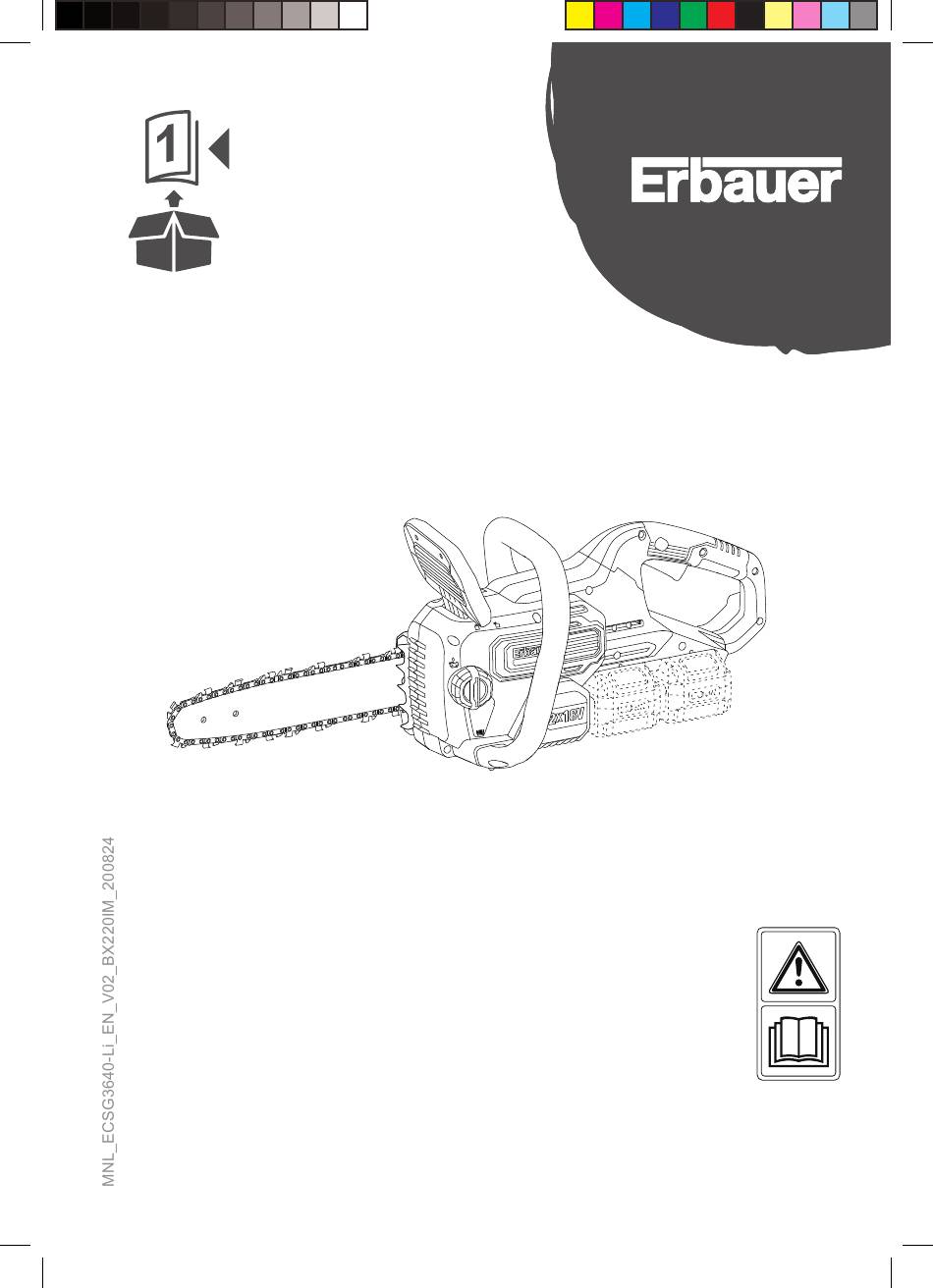

- Page 1 ECSG18-Li EAN:3663602461982 ECSG3640-Li EAN: XXXXXXXXXXXXXX ORIGINAL INSTRUCTIONS...
- Page 2 Product description Safety instructions Assembly Care & maintenance Guarantee Declaration of conformity...
-
Page 3: Product Description
WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool. PRODUCT DESCRIPTION 1. Sprocket wheel 14. Oil level gauge 2. Lubrication hole 15. Chain oil tank cap 3. Saw chain 16. Guide bar cover 4. - Page 4 Product description 15 14 12a* 17 18 19 12b* 25 26 20 21...
- Page 5 76-100 % 51-75 % 26-50 % 5-25 % < 5 % 5 mm...
- Page 6 50 mm...
-
Page 8: General Power Tool Safety Warning
Safety instructions GENERAL POWER TOOL SAFETY WARNING WARNING Read all safety warnings, instructions, illustrations Failure to follow serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1) WORK AREA SAFETY a) Keep work area clean and well lit. -
Page 9: Personal Safety
3) PERSONAL SAFETY A moment of inattention while operating power tools may result in serious personal injury. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. before connecting to power source and/or battery pack, picking up or energising power tools that have the switch on invites accidents. -
Page 10: Chain Saw Safety Warnings
Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. Use of the power tool for operations different from those intended could result in a hazardous situation. grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations. - Page 11 • Holding the chain saw with a reversed hand • Saw chains contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. • Adequate protective clothing • Operation of a chain saw while up in a tree may result in personal injury.
- Page 12 Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below: • allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw. •...
-
Page 13: Battery Pack Safety Warnings
BATTERY PACK SAFETY WARNINGS • Inserting the battery pack into machines that have the switch on can cause accidents. • Use of • Danger of short-circuiting. • Danger of explosion. • The vapours can irritate the respiratory system. • This measure alone protects the battery against dangerous overload. •... -
Page 14: Residual Risks
EMERGENCY Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. a) Always be alert when using this product, so that you can recognise and handle risks early. - Page 15 WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Wear protective gloves for this assembly work and always lay the product Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Do not insert the battery pack before the power tool is completely assembled!
- Page 16 The Li-Ion battery pack (12) is equipped with a power bar (12b) which is used to give an indication of the battery pack’s remaining capacity. Press the power bar button (12b) to check battery capacity as . The LED will stay lit for approximately 5 seconds. charger Please refer to the charger instruction manual for details about the charging process.
- Page 17 3. Fit the saw chain (3) around the guide bar (4) and then over the drive sprocket. Mark sure that the guide bar is correctly positioned over the fastening bolt (24) and the saw chain ‘Cutter’ complies with the chain direction indicator (26) on the plastic housing (Fig.
-
Page 18: Intended Use
Intended use The product is intended for cutting wood logs and limbs. It must not be used for cutting other materials, such as plastic, stone, metal, wood that contains foreign objects, or materials that are harmful to health. This product should not be used outside of domestic premises e.g. -
Page 19: Operation
The following function check should be carried out before each use and at regular Intervals: 1. Switch the product on. 2. While the motor is running, engage the kickback brake to position by rolling your left hand forward against the front hand guard (6). Saw chain (3) and motor should stop immediately. - Page 20 6. Reset the ridged bumper at a low point when cutting thicker logs by pulling the product slightly backwards and reposition at lower level to continue sawing. Do not remove the product completely from the wood. 7. Do not force the saw chain while cutting, let the chain do the work. 8.
-
Page 21: After Use
Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid binding the product. A spring pole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. -
Page 22: Maintenance
Care & maintenance WARNING! Switch the product off and remove the battery pack to disconnect from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Only perform care and maintenance work according to these instructions! 1. Keep the product clean. Remove debris from it after each use and before storage. 2. - Page 23 Clean the sprocket wheel. Clean the sprocket wheel. Using a disposable lube gun, insert the needle nose into the lubrication hole and Using a disposable lube gun, insert the needle nose into the lubrication hole and nject grease until it appears at the outside edge of the sprocket wheel (Fig. U inject grease until it appears at the outside edge of the sprocket wheel (Fig.
- Page 24 Have your saw chain sharpened professionally at an authorised service centre or sharpen the chain yourself. WARNING! Only sharpen the saw chain yourself if you are trained and have experience! Use proper tools to sharpen the saw chain! Transportation 1. Switch the product off and remove the battery packs. 2.
-
Page 25: Recycling And Disposal
Possible cause Solution 1. Product does 1.1. Battery pack not properly 1.1. Attach properly not start attached 1.2. Battery pack discharged 1.2. Remove and charge battery pack 1.3. Battery pack damaged 1.3. Check by a specialist electrician 1.4. Kickback brake is active 1.4. - Page 26 Guarantee This product carries a guarantee of 24 months starting from the day of purchase. Please retain your receipt as a proof. • Normal wear and tear, including accessory wear • Overload, misuse or neglect • Failure of consumable items (such as batteries) •...
- Page 27 TECHNICAL SPECIFICATIONS Product model : ECSG18-Li ECSG3640-Li Rated voltage : 36 V d.c. (18V x 2) 36 V d.c. (18V x 2) Chain speed (no-load) : 12 m/s 12 m/s Cutting length : 28 cm 37.5 cm Saw chain type...
- Page 28 Proper measures include among others regular maintenance and care of the product and accessories, keeping hands warm, periodical breaks and proper planning of work processes. Rating label explanation ECSG18-Li = Model number ECSG3640-Li = Model number E = Erbauer E = Erbauer...
- Page 29 Do not expose the product to rain or wet conditions (moisture). To reduce the risk of injury, user must read instruction manual. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
- Page 32 Manufacturer r,Fabricante: UK Manufacturer: International Products Limited 3 Sheldon Square London, W2 6PX United Kingdom EU Manufacturer: International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com To view instruction manuals online, visit www.castorama.fr Pour consulter les manuels d’instructions en ligne, www.bricodepot.com rendez-vous sur le site online,...
