Erbauer ECSP51 Original Instructions Manual

Petrol chain saw 50.9 cm3
Hide thumbs

Advertisement

Table of Contents

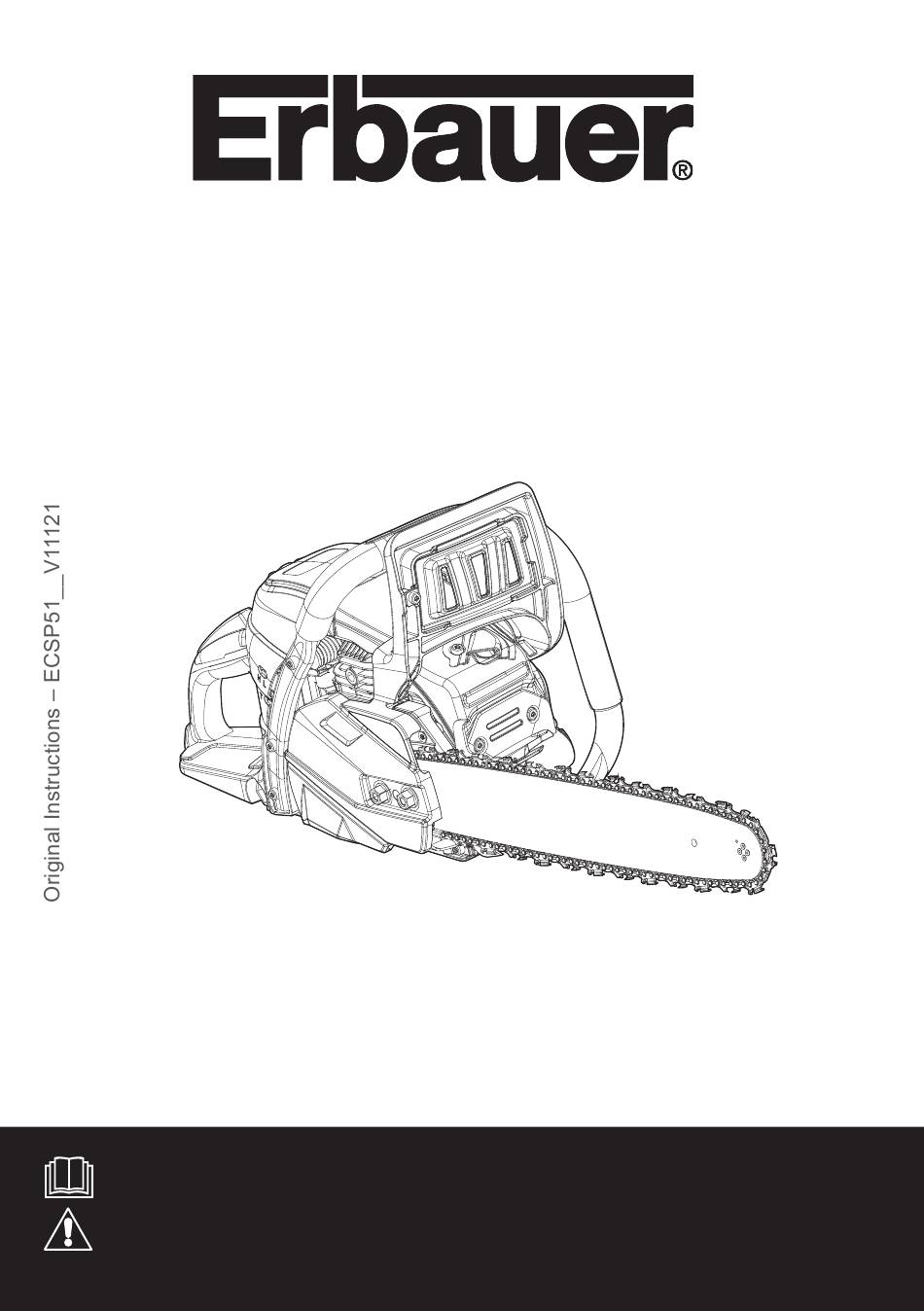

Petrol Chain Saw
(50.9 cm
)
3
ECSP51
EAN: 5059340255996
BX220IM/B3
WARNING: Read the instruction handbook thoroughly before
using the product. First time operators should receive practical
use instructions of the product and protective equipment from
an experienced operator.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECSP51 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbauer ECSP51

Summary of Contents for Erbauer ECSP51

  • Page 1 Petrol Chain Saw (50.9 cm ECSP51 EAN: 5059340255996 BX220IM/B3 WARNING: Read the instruction handbook thoroughly before using the product. First time operators should receive practical use instructions of the product and protective equipment from an experienced operator.

  • Page 2: Table Of Contents

    ECSP51 Let’s get started... These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting Started... Safety information Your product Technical specifications Before start Quick start more detail... Product functions Operation...

  • Page 3: Safety Information

    Safety information ECSP51 Safety warnings 1. This product is not intended for use by children and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. 2. Children should be supervised to ensure that they do not play with the product.
  • Page 4 Safety information ECSP51 > Do not under any circumstances modify the product. Modifications can result in serious personal injury or death. > Do not start cutting until you have a clear work area and secure footing. > All product servicing and maintenance, other than the items listed in this manual, should be performed by an authorised service centre.
  • Page 5 Safety information ECSP51 > Fuel vapour pressure may build up inside the fuel tank depending on the fuel used, weather conditions and the tank venting system. To reduce the risk of burns and other personal injuries, remove the fuel tank cap carefully to allow any pressure build up to release slowly.
  • Page 6 Safety information ECSP51 Operation > When sawing ensure the product does not touch any foreign materials such as rocks, fences, nails etc. Such objects may be flung out and could result in damage to the product, serious or even fatal injuries.
  • Page 7 Safety information ECSP51 Transport and storage > Stop the engine and engage the chain brake before transporting the product. > Carry the product with the engine stopped, the guide bar and saw chain to the rear, and the exhaust away from the body.
  • Page 8 Safety information ECSP51 > Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback. > Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.
  • Page 9 Safety information ECSP51 Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: >...
  • Page 10 Safety information ECSP51 Description of signal words: The signal word that indicates a hazard with a high level of risk DANGER! which, if not avoided, will result in death or serious injury. The signal word that indicates a hazard with a medium level of WARNING! risk which, if not avoided, could result in death or serious injury.
  • Page 11 Safety information ECSP51 Petrol engines produce toxic carbon monoxide exhaust fumes. Breathing carbon monoxide can cause nausea, fainting or even death. Do not operate the engine indoors! Always hold the product firmly in both hands. Kickback! Tip contact may cause the guide bar to move suddenly upward and backwards what may cause serious injury to user.
  • Page 12 Safety information ECSP51 Primer Objects thrown by the product could hit the operator or other bystanders. Always ensure that other people and pets remain at a safe distance from the product when it is in operation. In general, children must not come near the area where the product is operating.

  • Page 13: Your Product

    Your product ECSP51 1. Lubrication holes (on both sides) 11. Stop switch 2. Guide bar 12. Fuel tank cap 3. Saw chain 13. Choke 4. Front hand guard (with chain brake) 14. Recoil starter handle 5. Front handle (for left hand) 15.

  • Page 14: Technical Specifications

    Your product / Technical specifications ECSP51 Content of delivery 22. Chain oil flow adjuster 25. Fuel mixing container 23. Main unit 26. Guide bar cover 24. Multi-tool 27. File 28. Screwdriver Technical specifications General > Unit mass (without guide bar, saw chain and empty tank): 5.7 kg...
  • Page 15 Technical specifications ECSP51 > Saw chain speed n 23.114 m/s > Drive sprocket (teeth and pitch): 7 teeth, 8.255 mm (0.325") Engine > Engine model: 1E45F-3 Engine type: > air cooled, 2-stroke engine > Engine displacement: 50.9 cm Nominal power: >...

  • Page 16: Before You Start

    Before you start ECSP51 Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and protective shipping materials, if applicable, including the protective cover on the spiked bumper (16). 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product and contact your dealer.
  • Page 17 Before you start ECSP51 Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to assemble the product easily! Disconnect the spark plug connector before assembly! Reconnect it after assembly (see "Maintenance").
  • Page 18 Before you start ECSP51 1. Pull the front hand guard (4) backwards to disengage the chain brake (Fig. 1). 2. Loosen the fixing nuts (18) using the multi-tool (24) and remove the guard cover (19) (Fig. 2). Ensure the spiked bumper (16) is properly fixed to the product. Tighten the 2 bolts...
  • Page 19 Before you start ECSP51 3. Place the slot on the guide bar (2) over the 2 bolts (step 1, Fig. 3). 4. Push the guide bar (2) to the left towards the drive sprocket (step 2, Fig. 3). 5. Place the saw chain (3) over the drive sprocket and fit around the nose sprocket at the tip of the guide bar (2) in the correct direction (Fig.
  • Page 20 Before you start ECSP51 8. Align the tension adjuster pin with the lower hole on the guide bar (2) by turning the chain tension screw (20) clockwise or anti-clockwise with the multi-tool (24) (Fig. 5). Tension adjuster pin 9. Refit the guard cover (19). Tighten the fixing nuts (18) finger tight only at this stage (Fig.
  • Page 21 Before you start ECSP51 Tightening the saw chain WARNING! Disconnect the spark plug connector before adjusting saw chain tension! The cutting edges of the saw chain are sharp! Always wear protective gloves when handling chain! Always maintain proper chain tension! A loose chain increases the risk of...
  • Page 22 Before you start ECSP51 3. After adjusting the tension it should be possible to lift the saw chain (3) 3-4 mm from the guide bar (2) (Fig. 9). 3-4 mm 4. Tighten the fixing nuts (18) with the multi-tool (24) to secure the guide bar (2) and the guard cover (19).
  • Page 23 Before you start ECSP51 Ambient temperature Anti-freeze mode: Standard mode: under +5 °C above +5 °C Open vent Closed vent Vent tab 4. Refit the top cover (6) and secure it with the locking lever. NOTE: If the product is used in anti-freeze mode at temperatures above +5 °C, it may cause difficulties when starting the engine or incorrect engine speed during use.
  • Page 24 Before you start ECSP51 Chain lubrication WARNING! The product is not filled with chain oil. It is essential to fill the product with chain oil before using it! Never operate the product without chain oil as this will result in extensive damage to the product! Operating the saw...
  • Page 25 Before you start ECSP51 3. Fill suitable saw chain oil into the tank using a funnel fitted with a filter to avoid debris entering the tank. Do not overfill and leave approximately 5 mm of space between the top of the oil and the inside edge of the tank to allow for expansion (Fig. 12).
  • Page 26 Before you start ECSP51 Test run NOTE: Perform the following test before operating your product. This product is equipped with an automatic oiling system! The oiling system automatically delivers the proper amount of oil to the guide bar (2) and saw chain (3).
  • Page 27 Before you start ECSP51 Filling up fuel and oil WARNING! This product is not supplied with petrol-oil mixture in the engine! Before operating this product it is essential to fill it with petrol-oil mixture! This product is equipped with a 2-stroke engine, the fuel and oil tank are combined and it is essential to fill a fuel-oil mixture before operating this product.
  • Page 28 Before you start ECSP51 4. Unscrew and remove the fuel tank cap (12) (Fig. 15). 5. Fill the fuel and oil mixture into the fuel tank. Leave approximately 5 mm of space between the top of the fuel and the inside edge of the tank to allow for expansion.

  • Page 29: Quick Start

    Quick start ECSP51 Operating controls Front hand guard Recoil starter Primer handle Throttle trigger Oil tank cap lock-out Choke Fuel tank cap Stop switch Throttle trigger Chain oil flow adjuster...
  • Page 30 Quick start ECSP51 Preparation Add fuel and oil Assemble Adjust Add chain oil mixture Starting Engage the Press primer Set the choke Pull recoil Set the choke chain brake 6 times to CLOSE starter handle to OPEN position 4 times...
  • Page 31 Quick start ECSP51 Stopping Release throttle trigger and throttle Engage the chain brake trigger lock-out Storage Empty fuel tank Empty oil Clean and maintain Store WARNING! This quick start provides only a short overview of how to start and stop the product! For safe use it is essential to read the entire instruction...

  • Page 32: In More Detail

    Product functions ECSP51 Intended use This petrol chain saw ECSP51 is designated with a power output of 2.2 kW. The product is intended for cutting logs and limbs with a thickness of max. 47 cm (see “Technical specifications”). WARNING! The product may be used by an experienced operator* having...
  • Page 33 Product functions ECSP51 Safety equipment The product has several pieces of safety equipment which reduce the risk of injury when working (Fig. 17): Throttle trigger Chain brake / lock-out front hand guard Chain catcher Stop switch Use the stop switch (11) switch to start and stop the engine.
  • Page 34 Product functions ECSP51 Chain brake / front hand guard The front hand guard (4) is a safety mechanism that stops the saw chain (3) immediately when it is pushed towards the operator in case of a kickback. The chain brake is a safety mechanism activated by the front hand guard (4). When kickback occurs, the saw chain stops immediately.
  • Page 35 Product functions ECSP51 Throttle trigger lock-out The throttle trigger lock-out (8) prevents unintentional activation of the throttle trigger (10). The throttle trigger can only be activated if the throttle trigger lock-out is pressed. Chain catcher The chain catcher (17) is intended to catch a torn saw chain (3) or saw chain which has jumped out of the guide bar (2).

  • Page 36: Operation

    Operation ECSP51 Operation Check before starting: 1. Check the product, as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. 2. Double check that accessories and the guide bar/saw chain are properly fixed.
  • Page 37 Operation ECSP51 Engine cold start 1. Place the saw where it does not come into contact with any objects. 2. Engage the chain brake. 3. Press the primer (7) until the bubble is filled with fuel (6 times) (Fig. 20).
  • Page 38 Operation ECSP51 Engine warm start 1. Place the saw where it does not come into contact with any objects. 2. Engage the chain brake. 3. Set the choke to CLOSE position (Fig. 21) and then set to OPEN position (Fig. 23) to partially open the throttle for easy starting.
  • Page 39 Operation ECSP51 Basic operating / cutting procedure 1. To become proficient attend a recognised chain saw training course to learn how to operate chain saws safely and effectively. Familiarise yourself with all the controls and switches. Practise all movements with the product switched off.
  • Page 40 Operation ECSP51 8. Do not operate the product with arms fully extended or attempt to saw areas which are difficult to reach, or on a ladder. Never use the product above shoulder height (Fig. 26). 9. Optimum sawing is achieved if the chain speed remains constant during cutting.
  • Page 41 Operation ECSP51 1. Pinching the saw chain (3) along the bottom of the guide bar (2) may pull the product forward away from the operator (“skating”) (Fig. 28). 2. Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back toward the operator (“bouncing”) (Fig.
  • Page 42 Operation ECSP51 WARNING! Most “kickback” accidents happen during limbing! Pay close attention to the position of the ‘kickback’ zone of the bar when you are “limbing branches that are under tension. Felling a tree 1. When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled.
  • Page 43 Operation ECSP51 Felling back cut 1. Make the felling back cut (Fig. 31, A) at least 50 mm higher than the horizontal notching cut (Fig. 31). Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge (Fig.
  • Page 44 Operation ECSP51 Cutting spring poles A spring pole is any log, branch, rooted stump, or sapling which is bent under tension by other wood so that it springs back if the wood holding it is cut or removed. On a fallen tree, a rooted stump has a high potential of springing back to the upright position during the bucking cut to separate the log from the stump.
  • Page 45 Operation ECSP51 5. Support small logs on a sawing stand or another log while bucking (Fig. 37). 6. If the wood diameter is large enough for you to insert a soft bucking wedge without touching the chain, you should use the wedge to hold the cut open to prevent pinching (Fig.

  • Page 46: Care And Maintenance

    Care and maintenance ECSP51 The golden rules for care WARNING! Always stop the engine, disconnect the spark plug connector and let the product cool before performing inspection, maintenance and cleaning work. DANGER! Proper maintenance is essential for safe and trouble free operation.
  • Page 47 Care and maintenance ECSP51 check lubricate Saw chain clean sharpen whenever necessary replace whenever necessary check lubricate Guide bar clean replace whenever necessary clean every 10 hours of operation or whenever necessary Nose sprocket lubricate every 10 hours of operation or whenever necessary...
  • Page 48 Care and maintenance ECSP51 Cleaning NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces. Cleaning the housing > Use a damp, lint-free cloth to clean the housing of the product.
  • Page 49 Care and maintenance ECSP51 Guide bar and saw chain maintenance Most guide bar problems can be prevented merely by keeping the product well maintained. Incorrect filing and non-standard cutter and depth gauge settings are the causes of most guide bar problems, primarily resulting in uneven bar wear. As the bar wears unevenly, the rails widen, which may cause the chain to clatter and make it difficult to complete straight cuts.
  • Page 50 Care and maintenance ECSP51 4. Remove any dirt accumulated inside the guide bar (2) slot using the putty knife (not provided) (Fig. 41). 5. Check the guide bar “rail” for wear: Hold a ruler (straight edge) against the side of the guide bar (2) and “cutter side plates”.
  • Page 51 Care and maintenance ECSP51 Saw chain sharpening NOTE: Never saw with a blunt chain. The saw chain is blunt if you have to push the product into the tree and the chips are very small. 1. Have the saw chain (3) sharpened professionally at an authorised service centre or sharpen the chain yourself by using the file (27).
  • Page 52 Care and maintenance ECSP51 5. File at an angle perpendicular to the bar, and at an angle of 25° to the direction of travel (Fig. 45). Sharpening angle 25° Left-hand cutter File direction Inside Outside Saw chain direction 6. File each tooth from the inside towards outside only. File one side of the chain first than turn the saw around and repeat the process.
  • Page 53 Care and maintenance ECSP51 Air filter Inspect the air filter (6b) regularly. Clean or replace it with a new one if necessary. 1. Insert the multi-tool (24) into the slot on the locking lever and push downwards to pry the top cover (6) open (Fig. 47).
  • Page 54 Care and maintenance ECSP51 Spark plug NOTE: For good performance, the spark plug must be properly gapped and free of deposits. Inspect the spark plug every 25 hours or before long-term storage over 180 days. Clean or replace with a new one if necessary (type: BPMR7A).
  • Page 55 Care and maintenance ECSP51 4. Check the spark plug for damage and wear. The colour of the electrode should be light-brown. 5. Remove the deposits from the electrode with a soft wired brush. Avoid heavy cleaning of the Spark plug electrode.
  • Page 56 Care and maintenance ECSP51 Chain catcher Replace a damaged or worn chain catcher (17) with a new one of the same type. 1. Loosen the bolt of the chain catcher (17) and remove it. 2. Fix a new chain catcher to the product.
  • Page 57 Care and maintenance ECSP51 Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified specialist to have it checked and repaired. Storage WARNING! Risk of injury! Make sure that unauthorized persons do not have...
  • Page 58 Care and maintenance ECSP51 Long term storage NOTE: Risk of product damage! > If you are not going to be using the product for a while, remove the fuel and saw chain oil from the product. This way, you will prevent a gumming-up of the engine and of the grease pump.

  • Page 59: Troubleshooting

    Troubleshooting ECSP51 Troubleshooting Suspected malfunctions are often due to causes that the operators can fix themselves. Therefore check the product using this section. In most cases, the problem can be solved quickly. WARNING! Only perform the steps described in these instructions! All further...
  • Page 60 Troubleshooting ECSP51 Problem Possible cause Solution Engine does Spark plug defective? Replace spark plug. not start. Engine too cold? Follow cold starting procedures and set to anti-freeze mode if necessary. Engine too hot? Wait until engine is cool. Follow warm starting procedures,...

  • Page 61: Recycling And Disposal

    Recycling and disposal / Guarantee ECSP51 Recycling and disposal 1. Old equipments are potentially recyclable and do not, therefore, belong in your household rubbish. You are requested to assist us and our contribution to saving resources and protecting the environment by handing in this equipment to an equipped collection centre (if there is one available).

  • Page 62: Uk Declaration Of Conformity

    UK declaration of conformity ECSP51 (UK) DECLARATION OF CONFORMITY Product > Chain saw > ECSP51 > 50.9 cm ; 2.2 kW > 000001 - 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square...

  • Page 63: Ec Declaration Of Conformity

    EC declaration of conformity ECSP51 (EN) EU DECLARATION OF CONFORMITY (FR) DÉCLARATION UE DE CONFORMITÉ (PL) DEKLARACJA ZGODNOŚCI UE (RO) DECLARAȚIA DE CONFORMITATE UE (ES) DECLARACIÓN UE DE CONFORMIDAD (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto > Chain saw/Tronçonneuse/Pilarka łancuchowa/Motoferastrau/Motosierra/Motosserra >...
  • Page 64 EC declaration of conformity ECSP51 The object of the declaration described above is in conformity with the relevant Union harmonisation legislation: L’objet de la déclaration décrit ci-dessus est conforme à la législation d’harmonisation de l’Union applicable: Wymieniony powyżej przedmiot niniejszej deklaracji jest zgodny z odnośnymi wymaganiami unijnego prawodawstwa harmonizacyjnego: Obiectul declarației descris mai sus este în conformitate cu legislația relevantă...
  • Page 65 EC declaration of conformity ECSP51 Measured Sound Power Level/ Niveau de puissance acoustique mesuré/ Zmierzony poziom mocy akustycznej/ Nivel de putere acustică măsurat/ Nivel de potencia sonora medido / Nível de potência sonora medido: 109.7 dB(A) Guaranteed Sound Power Level/ Niveau de puissance acoustique garanti/ Gwarantowany poziom mocy akustycznej/ Nivel de putere acustică...
  • Page 66 Manufacturer, Fabricant, Prodecent, Producător, Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products...
