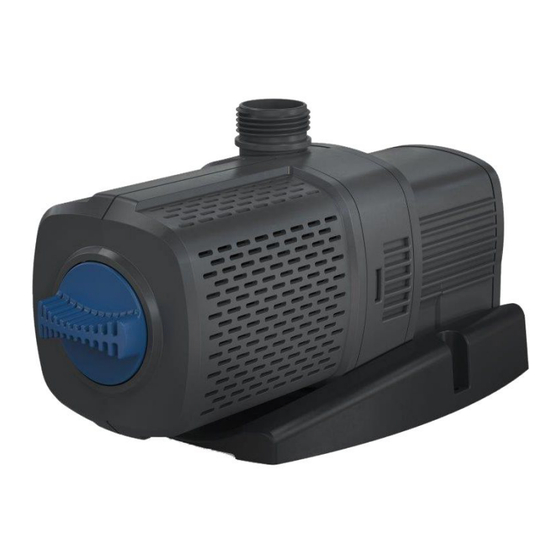

- Page 1 Downloaded from www.watergardeningdirect.com Aquarius Universal Classic 3000 Operating instructions...
- Page 2 Downloaded from www.watergardeningdirect.com Original manual. WARNING WARNING Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise there is a risk of severe in- juries or death by electrocution. This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of expe- rience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards...
-
Page 3: Safety Information
• Never carry out technical changes to the unit. • Only carry out work on the unit that is described in this manual. • Only use original spare parts and accessories. • Should problems occur, please contact the authorised customer service or OASE. -
Page 4: Intended Use
Downloaded from www.watergardeningdirect.com Intended use Only use the product described in this manual as follows: • For pumping water, e.g. for water features. • Indoors and outdoors. • While adhering to the technical specifications. (→ Technical data) • Adherence to the permissible water quality. (→ Permissible water quality) The following restrictions apply to the unit: •... -
Page 5: Product Description
Downloaded from www.watergardeningdirect.com Product Description Overview ARS0083 Inlet (suction side) • With filter cage (3) for submerged installation. • With hose sleeve for connecting a hose for dry installation. Outlet (pressure side) • Connection of the return line (e.g. to a fountain) Filter cage Flow rate controller Power cable... -
Page 6: Symbols On The Unit
Downloaded from www.watergardeningdirect.com Symbols on the unit The unit is dust-tight and water-tight down to 4 m. Possible danger for persons with pacemakers. Protect the unit from direct sunlight. Do not dispose of the unit with normal household waste. Read the operating instructions. Installation variants ARS0084 •... -
Page 7: Installation And Connection
Downloaded from www.watergardeningdirect.com Installation and connection The pump can be installed submerged (in water) or dry (outside the water). The use of the pump is only permitted with observance of the specified water quality. (→ Permissible water quality) WARNING Severe injuries or death due to operation of this unit in a swimming pond. Defective electrical components will electrify the water with dangerous electrical voltage. - Page 8 Downloaded from www.watergardeningdirect.com Turning the pump inlet The pump inlet can be moved to the required orientation. Orientation • Recommended for dry installation. Top or side (right, left) • When used with submerged installation, ensure that the water level is sufficient.
- Page 9 Downloaded from www.watergardeningdirect.com Submerged installation of the pump Connecting ARS0085 Do not plug the power plug into the socket yet! Installation ARS0086 • Place the pump horizontally on a stable, mud-free surface. • Ensure secure and stable positioning of the pump. •...
- Page 10 Downloaded from www.watergardeningdirect.com Install the unit at a dry place Connecting ARS0087 Do not plug the power plug into the socket yet!
- Page 11 Downloaded from www.watergardeningdirect.com Installation ARS0088 • Place the pump horizontally on a stable, mud-free surface. • Ensure secure and stable positioning of the pump. It is possible to screw the unit to a suitable surface to ensure stability.
-
Page 12: Switching On/Off
Clean the unit as required but at least twiceper year. • Recommended cleaning agent for removing stubborn limescale deposits: – Pump cleaning agent PumpClean from OASE. – Vinegar- and chlorine-free household cleaning agent. • After cleaning, thoroughly rinse all parts in clean water. - Page 13 Downloaded from www.watergardeningdirect.com Cleaning/replacing the impeller unit • Dismantle the pump as shown in the figure. • Use a brush under clear water to clean the components. • Check all components for damage. Replace damaged or worn components. • Assemble the pump in reverse order. ARS0089...
- Page 14 Downloaded from www.watergardeningdirect.com Storage/winter protection Shut down the unit at water temperatures below +4 °C or at the latest when freezing tempera- tures are expected. Malfunction remedy Malfunction Cause Remedy Pump does not start No mains voltage Check the mains voltage. Supply lines kinked Route the supply lines without kinks Supply lines blocked.
-
Page 15: Technical Data
Downloaded from www.watergardeningdirect.com Technical data Aquarius Universal Classic 3000 Connection voltage V AC 220 … 240 Mains frequency Max. power consumption Max. pump capacity 3000 Max. pump head Protection type IP68 Max. immersion depth Inlet port Thread G1½ Connection, hose 25, 32, 38 Outlet port Thread... -
Page 16: Wear Parts
Downloaded from www.watergardeningdirect.com Wear parts • Impeller unit Disposal NOTE Do not dispose of this unit with household waste. Dispose of the unit by using the return system provided for this purpose. Should you have questions, please contact your local disposal company. They will give you in- formation on how to correctly dispose of the unit. - Page 17 Downloaded from www.watergardeningdirect.com ARS0091...
