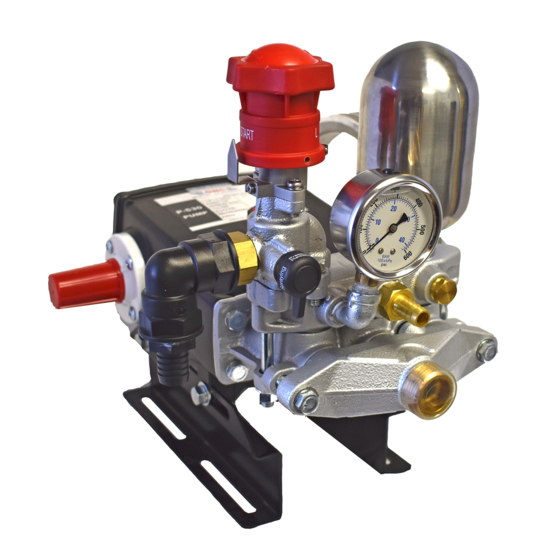

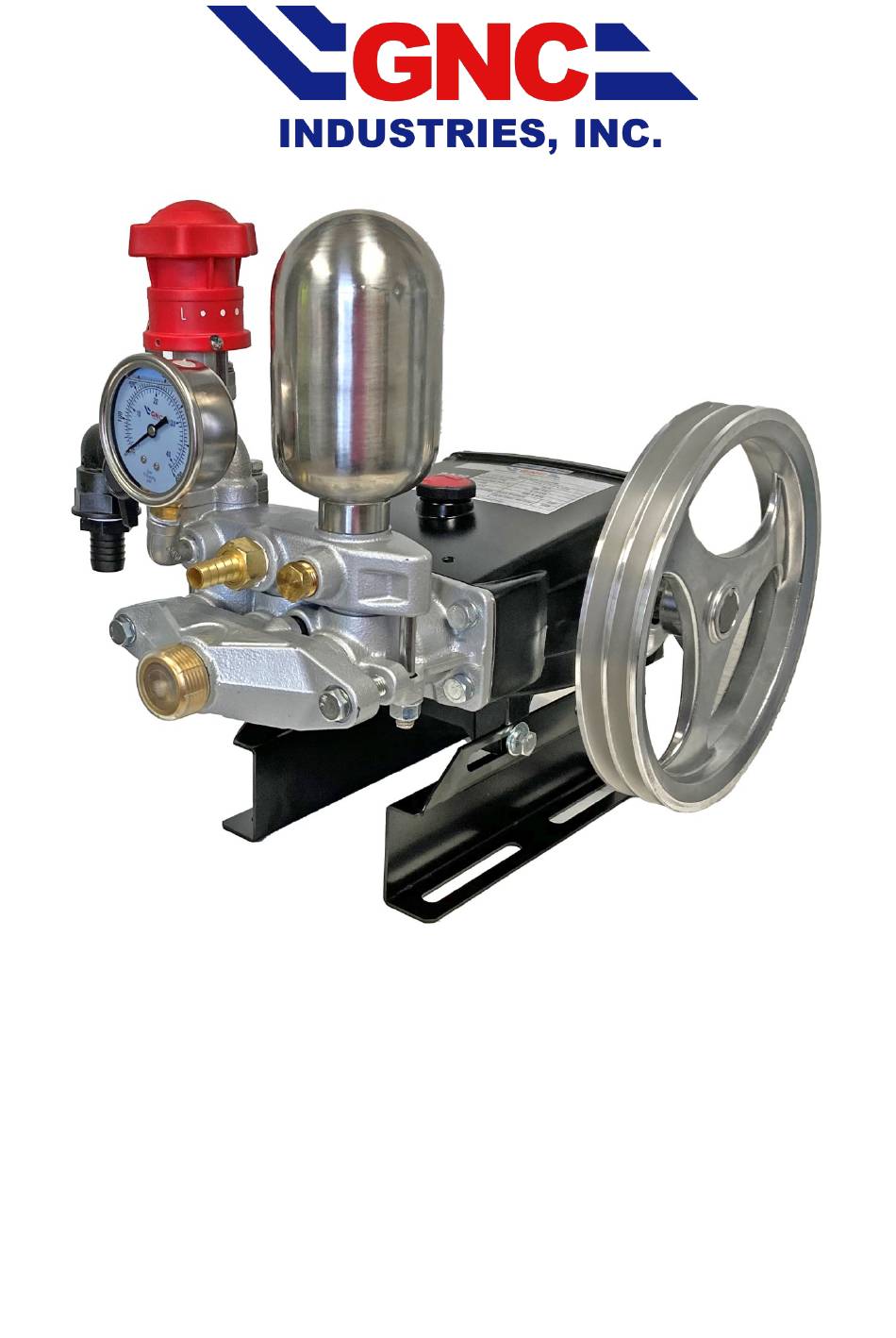

- Page 1 P530 PUMP Operations and Parts Manual (P10W) GNC Industries, Inc., 1-870-248-9901 Fax: 870-248-9905 Email: sales@gnci.org Website: www.gncindustries.com...
-
Page 2: Warranty
2 year from manufactured date when properly installed, maintained and operated. In no event will GNC have a warranty obligation for normal wear and tear, or for products that have, at GNC's determination, been subject to accident, abuse, misapplication, improper installation or improper maintenance. - Page 3 Warning: • 1. Never point the spray gun at people or animals. 2. The pump will produce high temperatures when operating. 3. Keep hands and clothing clear of the belts and pulleys when operating the pump. 4. Always use fresh water free of foreign debris when filling the spray tank.
-
Page 4: During Use
During Use: • 1. Make sure the pump has sufficient liquid supply to allow the pump to reach its working pressure. 2. To prolong the life of the pump, always operate the machine within its specified pressure limits. Adjust the pressure by turning the adjustable regulator knob clockwise. -
Page 5: Specifications
has been drained. 3. Remove Ref # 7A Oil Fill Cap and fill crankcase with NON Detergent oil (see chart) until the oil level reaches the center mark in Ref # 11A Oil Window. 4. Once filled, replaced Ref # 7A Oil Fill Cap. Specifications Maximum Flow………………………………………………... - Page 6 Page 5...
- Page 7 Page 6...
- Page 8 REF # PART # DESCRIPTION 42-530-01 Crank Case w/Set Pin & Plate 42-530-02 Piston Oil Seal 42-530-05 Screw 42-530-06 Crankshaft Oil Seal Cover 42-530-07 Oil Inlet Cover Assy. 42-530-08 Rear Cover Packing 42-530-09 Crankshaft Rear Cover 42.530.10 Screw 42-530-11 Oil Window Assy. 42-530-12 Drainage Screw Assy.
- Page 9 REF # PART # DESCRIPTION 42-530-65 Outlet Chamber 42-530-70 ⅜” Brass Plug 42-530-75 Air Chamber Surge Tank with O-Ring FT-GAL-SE14 ¼” Street Elbow FT-TW12B ½” MNPT x ½” HB Swivel FT-3LL34 ¾”x¾” FNPT Fitting FT-3A34 ¾” MNPT x ¾” HB Poly Fitting 43-530-200 Complete Regulator 43-530-335...
- Page 10 Low or Lost Pressure Abnormal Suction Ref: 1,2, 3, 4, 5, 6, 10, 11, Ref: 2, 3, 6, 7, 8, 11, 15,16 12, 13, 14, 15, 16 No Liquid at Spray Gun Abnormal Pump Noise Ref: 2, 11, 14, 15, 16 Ref: 2, 3, 7, 8, 11, 15, 16 Abnormal Vibration Ref: 9...
- Page 11 Maintenance Log Date Tech DESCRIPTION Page 10...
-
Page 12: Quick Reference
Quick Reference Pressure Oil Fill: Use Adjuster Non Detergent Oil Sight Gauge Knob (On Back Plate) Pressure Release ¾” Return Secure Pulley Bolt to Key Way with Blue Lock-Tight Gauge Aux. Output Port 1” Suction Output to Initial Set-Up Reel •...
