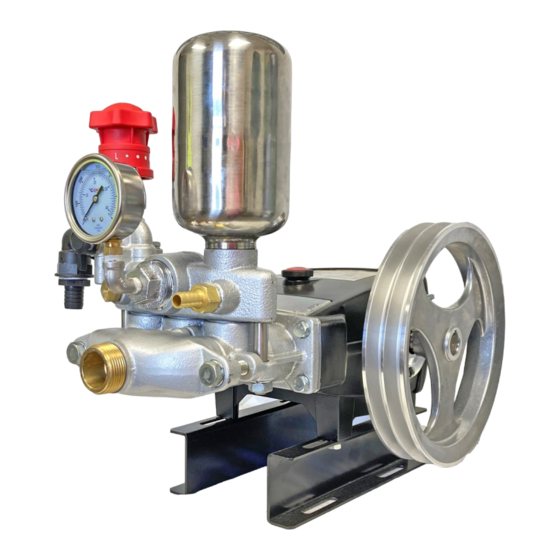

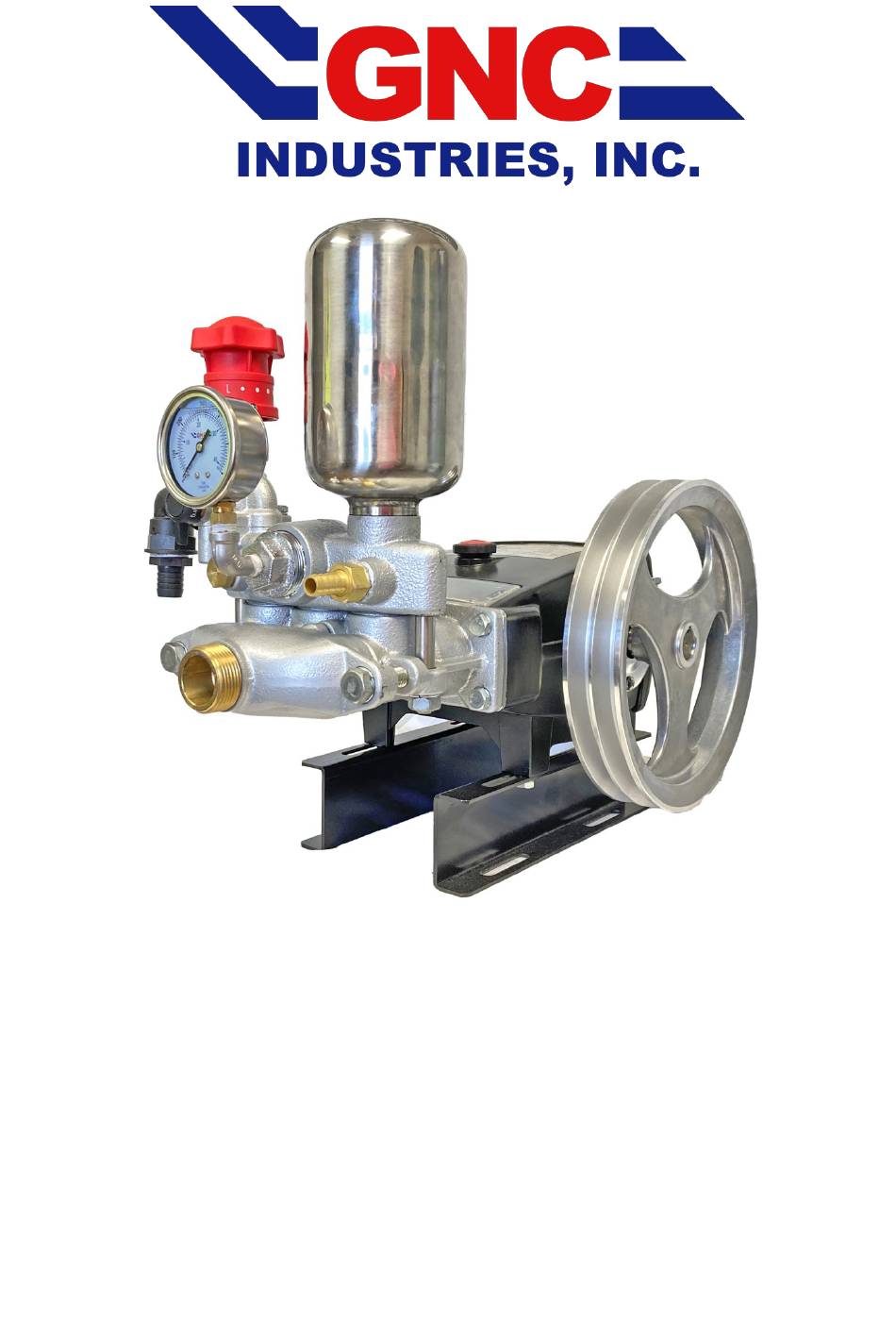

- Page 1 P550 PUMP Operations and Parts Manual GNC Industries, Inc., 1-870-248-9901 Fax: 870-248-9905 Email: sales@gnci.org Website: www.gncindustries.com...
-
Page 2: Warranty
GNC limited warranty covers unmistakable defect in material or work-manship. In this event, GNC will repair or replace, at GNC's option, any part or as- sembly. Labor is not covered by warranty. - Page 3 Warning: • 1. Never point the spray gun at people or animals. 2. The pump will produce high temperatures when operating. 3. Keep hands and clothing clear of the belts and pulleys when operating the pump. Before Use/Start Up: • 1.
-
Page 4: During Use
During Use: • 1. Make sure the pump has sufficient liquid supply to allow the pump to reach its working pressure. 2. To prolong the life of the pump, always operate the machine within its specified pressure limits. Adjust the pressure by turning the adjustable regulator knob clockwise. -
Page 5: Specifications
3. Remove Ref # 7A Oil Fill Cap and fill crankcase with NON Detergent SAE30 oil until the oil level is cover- ing 2/3 of Ref # 11A Oil Window. 4. Once filled, replaced Ref # 7A Oil Fill Cap. Specifications Maximum Flow…………………………………………………... - Page 6 Page 5...
- Page 7 Page 6...
- Page 8 REF # PART # DESCRIPTION 42-550-01 Crankcase, Set Pins, & Plate 42-550-02 Piston Oil Seal 42-550-03 Dust Cover 42-530-05 Screw 42-530-06 Crankshaft Oil Seal Cover 42-550-07 Oil Inlet Cover Assy. 42-550-08 Rear Cover Packing 42-550-09 Crankshaft Rear Cover 42.530.10 Screw 42-530-11 Oil Window Assy.
- Page 9 REF # PART # DESCRIPTION 42-550-75 Air Chamber Surge Tank with O-Ring 42-530-74 Air Chamber—O-Ring 42-530-75 Air Chamber / Surge Tank FT-GAL-SE14 ¼” Street Elbow ½” MNPT x ½” HB Swivel FT-TW12B FT-3LL34 ¾”x¾” FNPT Fitting FT-3A34 ¾” MNPT x ¾” HB Poly Fitting 43-530-200 Complete Regulator 43-550-535...
- Page 10 Low or Lost Pressure Abnormal Suction Ref: 1,2, 3, 4, 5, 6, 10, 11, Ref: 2, 3, 6, 7, 8, 11, 15,16 12, 13, 14, 15, 16 No Liquid at Spray Gun Abnormal Pump Noise Ref: 2, 11, 14, 15, 16 Ref: 2, 3, 7, 8, 11, 15, 16 Abnormal Vibration Ref: 9...
- Page 11 Maintenance Log Date Tech DESCRIPTION Page 10...
-
Page 12: Quick Reference
Quick Reference Air Chamber Pressure Regulator Pressure Gauge Oil Fill Plug Return Port 1/2” Output 10” Belt Pulley 1-1/4” Output 1-1/4” Input 1/2” Output Pump Stands Initial Set-Up • Check pump and engine oil levels • Initial Set-Up Check engine gas level. Add fuel as needed Video •...
