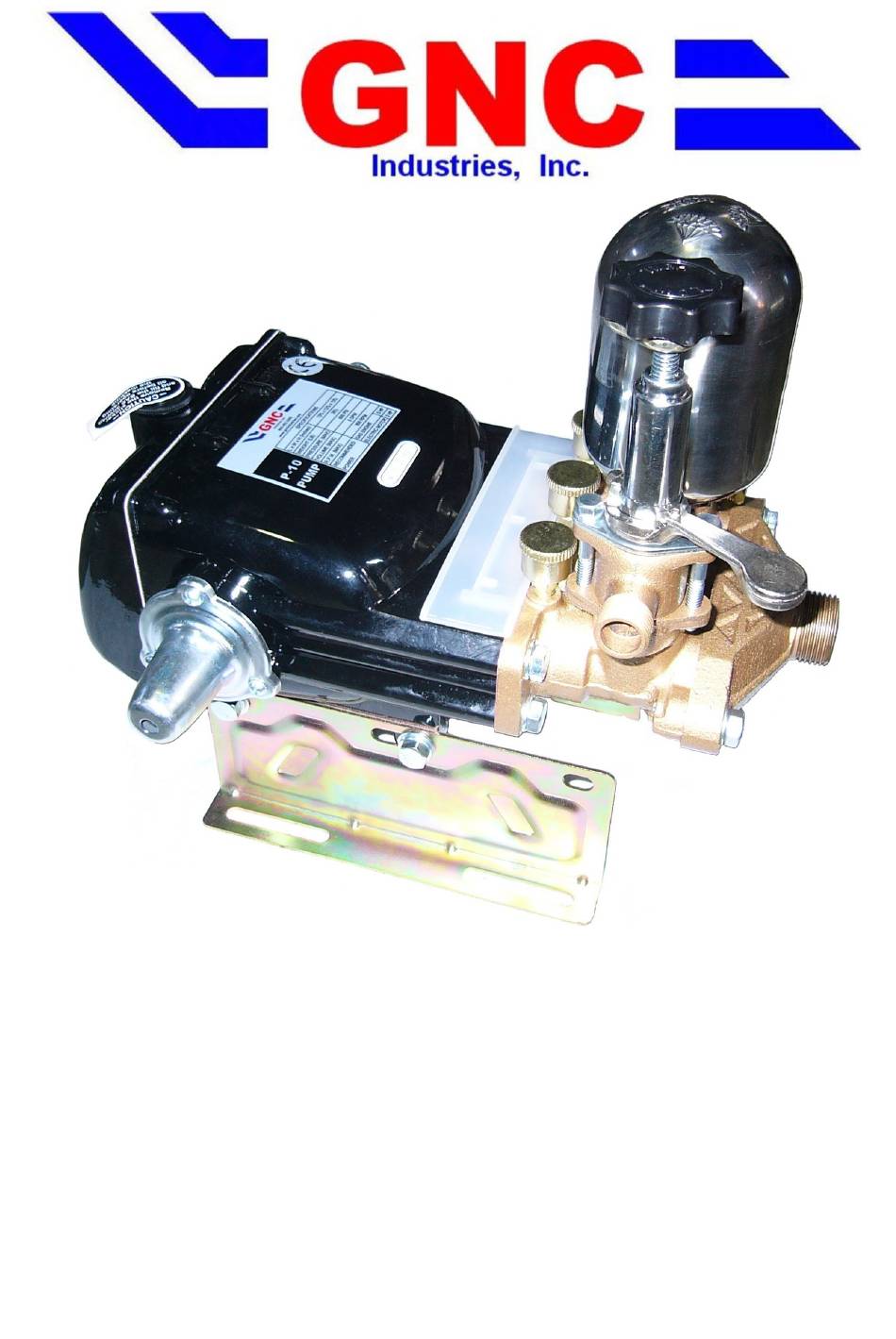

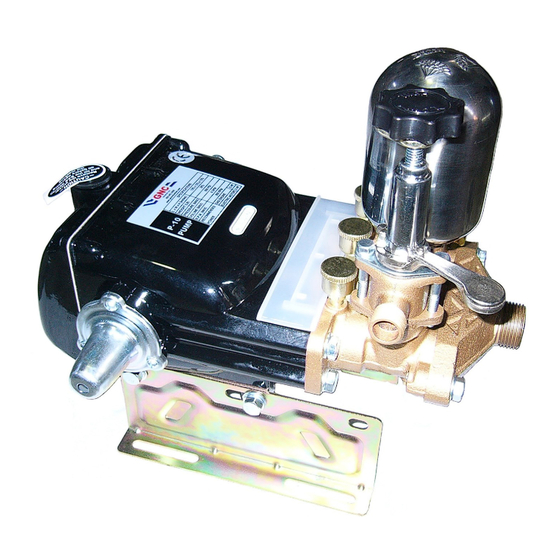

- Page 1 P10 PUMP Operations and Parts Manual GNC Industries, Inc., 1401 Pace Rd., Pocahontas, AR 72455 800-462-2005 870-248-9905 fax sales@gncindustries.com www.gncindustries.com...
-
Page 2: Warranty
No allowance will be made for consequential damage, labor or expenses incurred as the results of a proven defect. In no event will GNC Industries, Inc. be liable for any loss of profits or other consequential damages, even if GNC Industries, Inc. - Page 3 SPRAYER START UP 1. Fill the engine with oil according to the engine manufacturer’s specifica- tions. (SAE 30). 2. Fill the pump with 30-weight oil, until the oil level is at the full mark on the pump oil sight gauge or dip stick. 3.
- Page 4 I thru K. 18. If you still cannot get the desired operating pressure, go to the trouble shooting guide (SECTION V.) or call GNC Industries, Inc. at 800-462- 2005 or 870-248-9901.
- Page 5 GREASE THE CYLINDERS Each cylinder is equipped with a grease cup to prevent premature plunger and packing wear. Each cup must be filled with grease on the initial starting of the sprayer unit and filled weekly if necessary. PUMP REPAIR TO REPLACE PUMP PISTON PACKING Unscrew the nuts located underneath the cylinder (ref # 49) and remove the discharge metal/manifold (item #71).
- Page 6 Low or Lost Pressure Abnormal Suction Ref: 2, 3, 6, 7, 8, 11, Ref: 1,2, 3, 4, 5, 6, 10, 15,16 11, 12, 13, 14, 15, 16 No Liquid at Spray Gun Abnormal Pump Noise Ref: 2, 11, 14, 15, 16 Ref: 2, 3, 7, 8, 11, 15, 16 Abnormal Vibration Ref: 9...
-
Page 7: Repair Kits
TROUBLESHOOTING REFERENCE NUMBERS 9. Pulsation dampening chamber 1. Spray gun tip too large or worn full of water 2. Suction filter clogged 10. Worn pump valve chamber 3. Loose suction line connection 11. Foreign object in suction line 4. Malfunctioning pressure gauge 12. - Page 8 REF # PART # DESCRIPTION 42-810-01 CRANK CASE 42-810-02 GASKET, CRANK CASE 42-810-03 COVER, CRANK CASE 8 & 9 42-810-04 OIL GAUGE & O-RING 42-810-05 PLUG, FUEL DRAIN 42-810-06 O-RING 42-810-07 SCREW 42-810-09 PLUNGER COVER 42-810-10 OIL CAP 42-810-11 O-RING 42-810-12 42-810-13 BED, CRANK CASE...
- Page 9 REF # PART # DESCRIPTION 42-810-43 STOPPING RING, WATER 42-810-44 GRAND (Crown Nut) 42-810-45 GREASE PACKING 42-810-46 GREASE RING 42-810-47 V-PACKING 42-810-48 V-PACKING SEAT 42-810-49 CYLINDER 42-810-50 GREASE CUP 42-810-51 WASHER, SPRING 42-810-52 BOLT 42-810-53 VALVE ASSY 42-810-54 BOX, VALVE 42-810-55 SPRING, VALVE 42-810-56...
- Page 10 C o n n e c tin g R o d A s s 'y 2 9 B C e r a m ic P lu n g e r A s s 'y 2 9 A Page 9...
- Page 11 4 3 - 8 1 0 - 2 0 0 R e g u la to r A s s 'y 1 1 4 1 1 1 1 1 5 1 0 1 1 1 6 1 0 2 1 1 2 1 1 7 1 3 1 1 0 8...
