Long Cable Compensation Adjustment - NEC MultiSync LCD2080UX+ User Manual

Quick Start

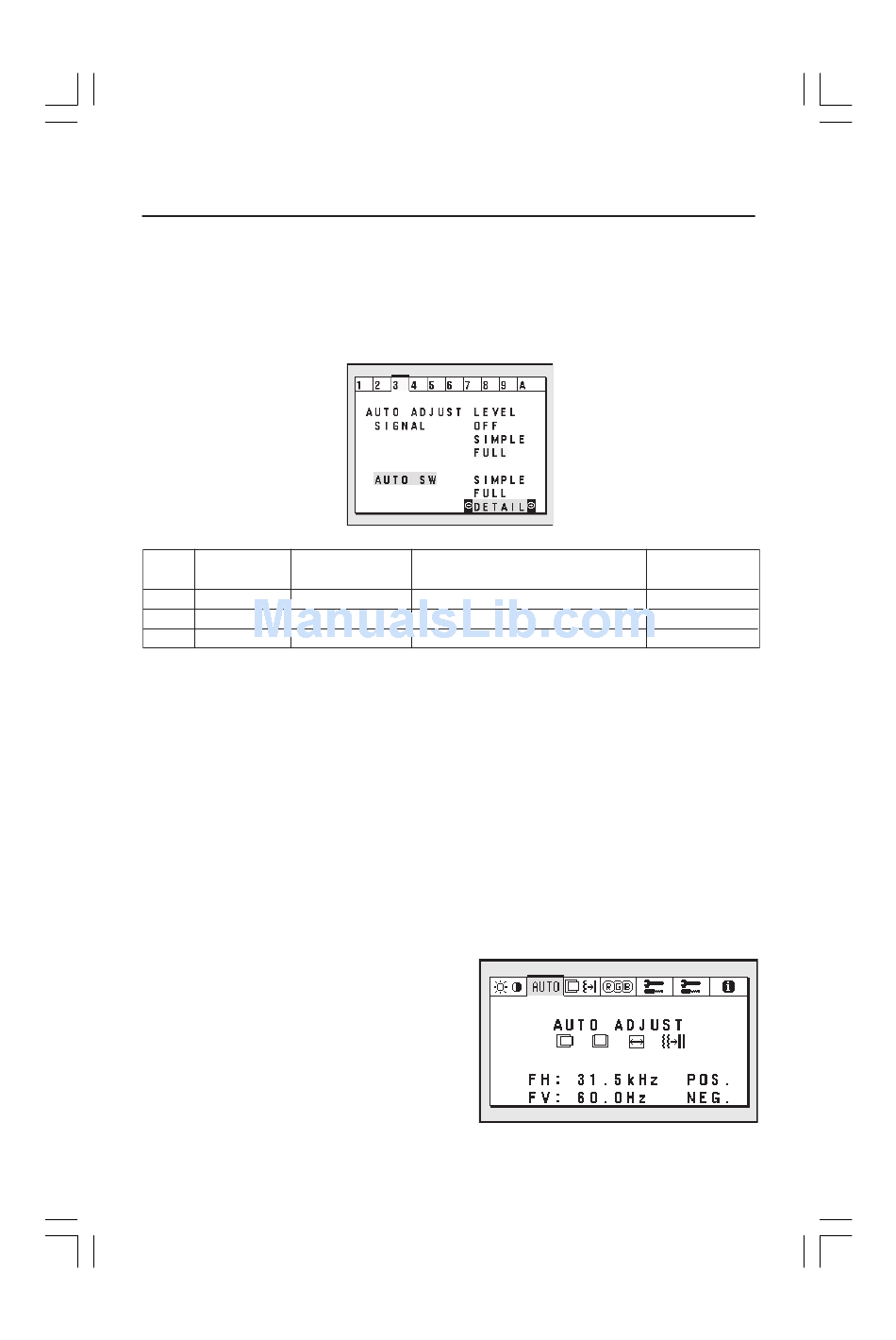

Long Cable Compensation Adjustment

To perform the long cable compensation adjustment, use the following steps:
Set the Auto Adjust Level (Auto SW) to "DETAIL" in the Advanced OSM
"Size" "Fine"
"Position"
SIMPLE O
FULL O
DETAIL O
O: Automatic adjustment is performed.
X: Automatic adjustment is not performed.
*1: Black level, RGB sharpness, RGB delay and RGB position are adjusted using Long Cable Software (included).
To enter the Advanced OSM
• Turn off your monitor.
• Turn on your monitor by pressing the "POWER" and "SELECT" buttons
simultaneously to open the Advanced OSM menu.
To exit the Advanced OSM
• Turn off and restart your monitor.
Perform "AUTO ADJUST" by using
OSM AUTO.
• Press select to adjust.
• For additional information on user
controls and software utilities, visit our
website at www.necmitsubishi.com
LCD2080UX+manual0624.p65
–continued
"Contrast"
Long cable capability *1
X
O
O
7
7
Black Level,
X 1.5 seconds
X 2 seconds
O 10 to 20 seconds
7/9/03, 8:37 AM
Time
