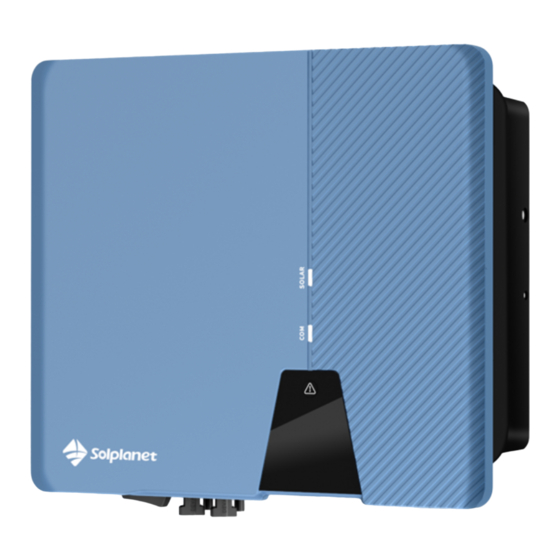

- Page 1 Quick Installation Guide ASW3000-S-G2/ASW3680-S-G2/ASW4000-S-G2 ASW5000-S-G2/ASW6000-S-G2 Android...
-
Page 2: General Information
GENERAL INFORMATION This quick installation guide does not replace the description in the comprehensive operating instructions. The contents of this guide may be updated or revised due to product development. The information in this guide is subject to change without notice. The latest version of this document and the comprehensive manual for installation, commissioning, configuration and decommissioning are to be found in PDF format at www.solplan- et.net. - Page 3 The product must only be used in countries for which it is approved or released by AISWEI and the grid operator. The type label must be permanently attached to the product and must be in legible condition. This document does not replace any regional, state, provincial, federal or national laws, regulations or standards that apply to the installation, electrical safety and use of the product.
- Page 4 ！ DANGER Danger to life due to electric shock when touching live system components in case of a ground fault If a ground fault occurs, parts of the system may still be live. Touching live parts and cables results in death or lethal injuries due to electric shock. •...
-
Page 5: Eu Declaration Of Conformity
(L 174/88, June 8, 2011) and 2015/863/EU (L 137/10, March 31,2015) (RoHS) confirms herewith that the products described in this document are in compliance with the fundamental requirements and other relevant provisions of the above mentioned directives. The entire EU Declaration of Conformity can be found at www.solplanet.net. -
Page 6: Scope Of Delivery
OVERVIEW （1） DC SWITCH （2） DC input （3） COM1&COM2:RS485 （4） COM3:Meter （5） COM4:WiFi/4G （6） Connection point for an additional grounding （7） AC OUTPUT SCOPE OF DELIVERY plug for meter ×1 DC connector 2+2 AC connector ×1 wall bracket (optional) inverter×1 RS485 COM plug×1 mounting screw ×1 document ×1... - Page 7 +60℃ -25℃ IP66 4K4H ≤100% No touching max.4000m by children ≥500mm ≥300mm ≥300mm INVERTER'S MOUNTING 2.5 Nm...
- Page 8 SECOND PROTECTIVE GROUNDING 2.5 Nm AC CONNECTION 6 to 8 mm² 13mm 53mm 12±0.60mm 10 to 14mm...
- Page 9 DC CONNECTION TYPE 1 click 2.5-6mm Φ - 5 8mm √ × TYPE 2 2.5-6mm Φ - 5 8mm...
-
Page 10: Communication Setup
COMMUNICATION SETUP 11.1 COM1&COM2: RS485 8 7 6 5 4 3 2 1 Pin 1 Pin 8 Pin 1=TX_RS485A Pin 2=TX_RS485B Pin 3=NC Pin 4=GND Pin 5=NC Pin 6=NC Pin 7=NC Pin 8=NC 11.2 COM3: Meter RS485A ❷ ❶ RS485B... - Page 11 11.3 COM4： WiFi/4G × √...
- Page 12 Service email: service.LATAM@solplanet.net Aiswei Greater China Service email: service.china@aiswei-tech.com Hotline: +86 400 801 9996 Taiwan Service email: service.taiwan@aiswei-tech.com Hotline: +886 809089212 https://solplanet.net/contact-us/ To download the Solplanet app, please scan the appropriate QR code below. Scan QR code: Scan QR code: Android...
- Page 13 AISWEI Technology(Shanghai) Co., Ltd.
