Quick Start cont.

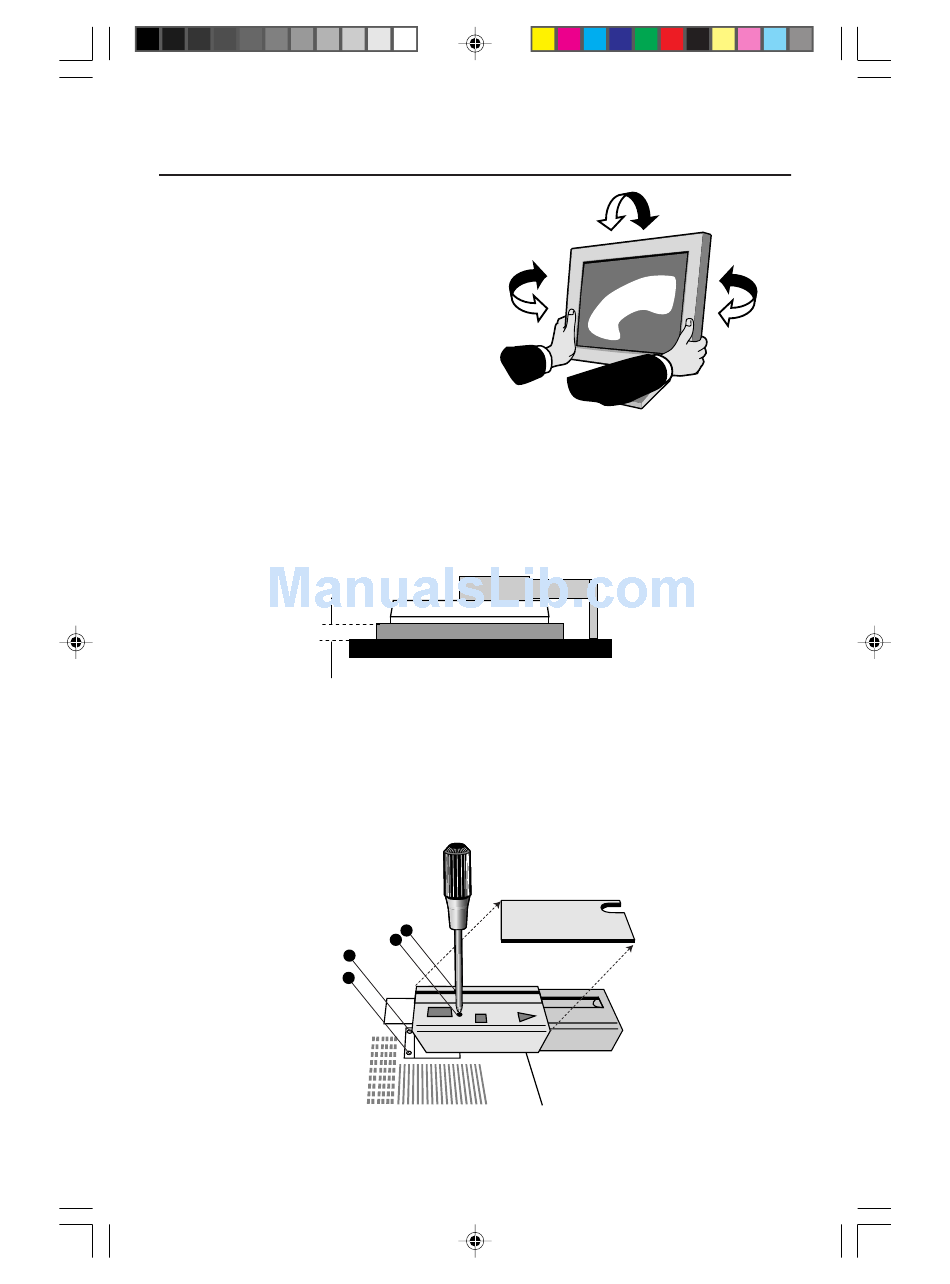

Tilt and Swivel

Grasp both sides of the monitor screen
with your hands and adjust the tilt and
swivel as desired (Figure TS.1).
Remove Monitor Stand for
Mounting
To prepare the monitor for alternate
mounting purposes:
1. Disconnect all cables.
2. Place one hand under bottom of
screen (Figure RL.1), lift up and simultaneously push the button on the
bottom back of the stand raise it to the maximum height (Figure RL.2).
3. Place monitor face down on a non-abrasive surface. (Place the screen
on a 2-inch platform so that the stand is parallel with the surface.)
(Figure S.1)
4. Remove cable cover. Remove the 4 screws connecting the monitor to the
stand and lift off the stand assembly (Figure S.2). The monitor is now
ready for mounting in an alternate manner.
5. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting
method.
78133314.wpc
40mm
Figure S.1
4
3
2
1
Figure S.2
7
9
Figure TS.1
