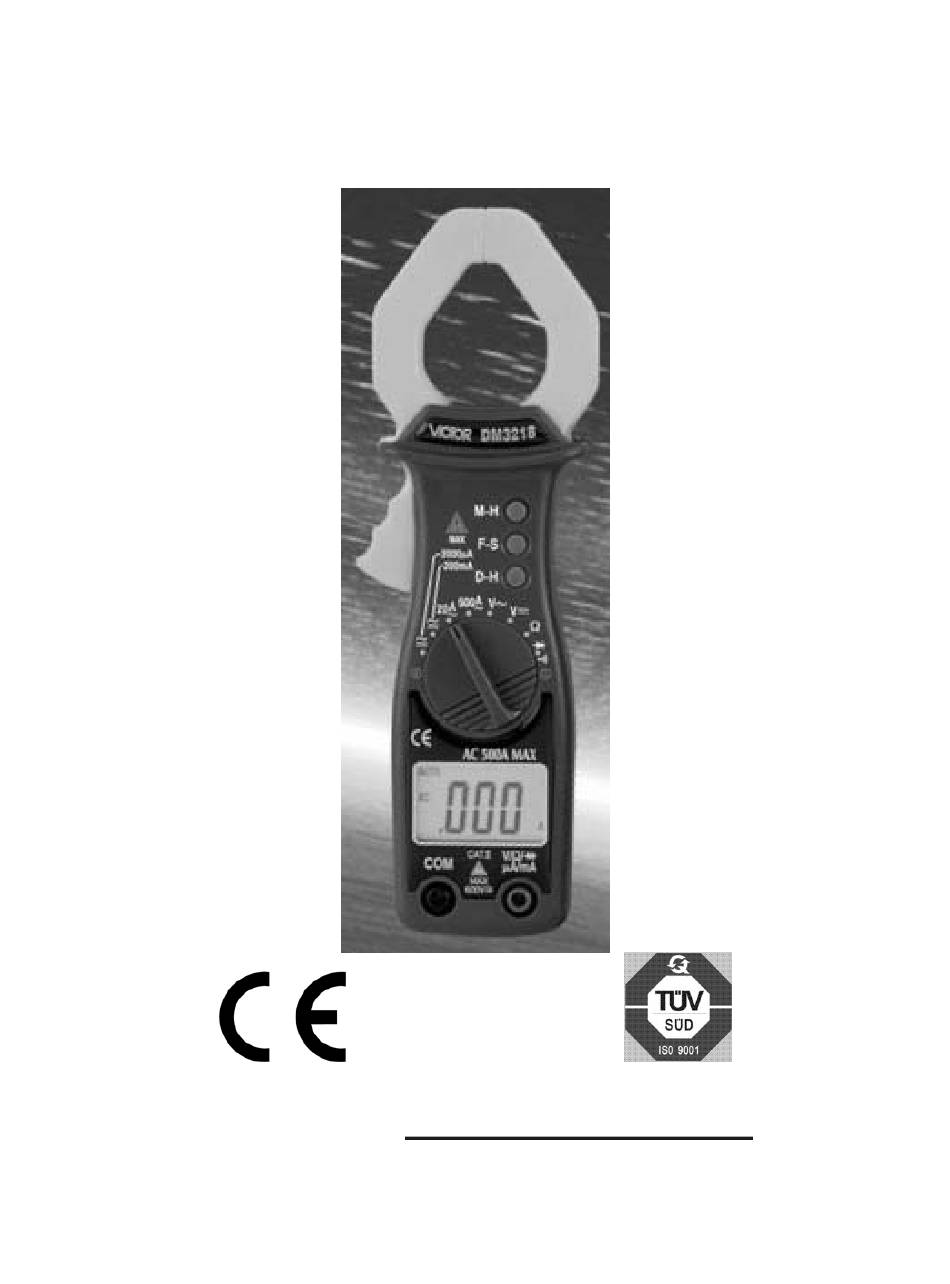

- Page 1 User’s Manual for DM3218 Digital Clampmeter Distributed by www.FiredragonEnt.com...
- Page 2 OVERVIEW 1. SAFETY INFORMATION This digital clamp meter has been manufactured and tested in accordance with IEC10101 Part 1 (Safety Requirement for Electrical Equipment for measurement, control and laboratory use, Safety Class II, Overvoltage category II) Before using the meter please read this manual thoroughly. After reading it, keep it together with the product for reference when necessary.
- Page 3 Range Resolution 10mV 200V 100mV 600V Input Impedance: 10M Overload Protection: 700Vrms or 1000Vp Frequency Range: 40Hz 400Hz Response: Average, calibrated in rms of sine wave Range Resolution 200uA 0.1uA 2000uA 20mA 10uA 200mA 100uA Overload Protection: F200mA/250V fuse Range Resolution 200uA 0.1uA...
- Page 4 Diode & Continuity Range Description lf continuity exists (about less than 50 built-in Ω buzzer will sound) Shows the approx. forward voltage drop of the diode Overload Protection: 250V DC or rms AC PUSHBUTTON INSTRUCTIONS 4-1 M-H: (Max Hold) Meter continues working after pushing this button, the display will hold the maximum data. 4-2 F-S: (Function Select) This button is used to change current measurement between Amps AC or DC Amps mode.
- Page 5 Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or solvents on this instruments. WARRANTY Victor warrants this instrument to be free from defects in material and workmanship for a period of one year. This warranty does not cover expendable items such as batteries or test leads.
