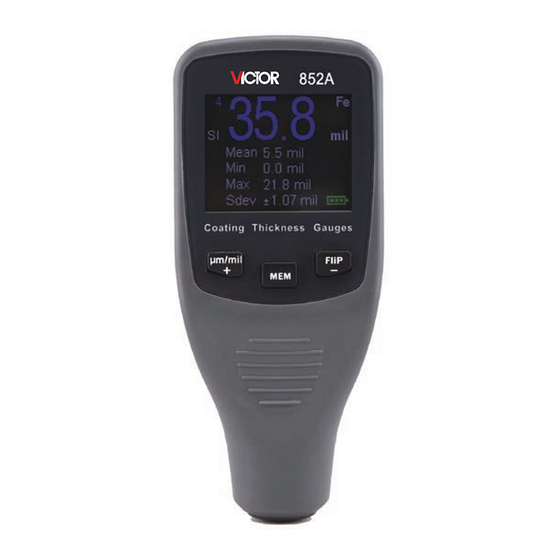

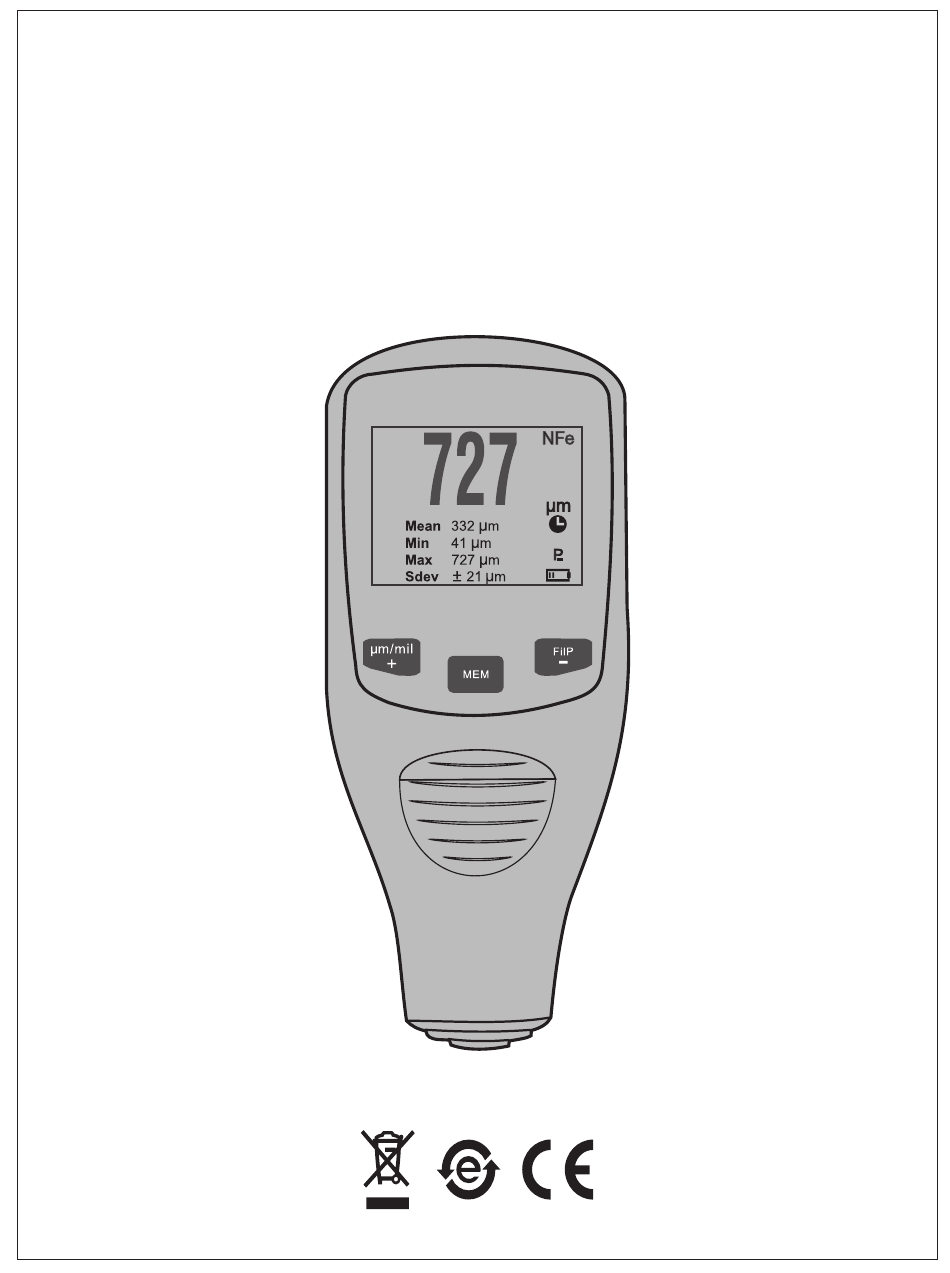

- Page 1 VR-852A Coating thickness gauge User Manual 이 자료는 저작권법에 따라 보호받는 저작물이므로 무단배포 및 무단복제를 금하며, 내용의 전부 또는 일부를 이용하려면 반드시 한국 VictorRuoshui 社 의 서면 동의를 받아야 합니다.
- Page 2 www.VictorRuoshui.co.kr 1. Brief Introduction This handheld electronic thickness gauge is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. It not only indicates thickness of coating or plating but also automatically identifies the base material (Fe means magnetic metals such as iron &...
- Page 3 www.VictorRuoshui.co.kr Important note: Be sure not to slide along the coating or plating surface to avoid scratch on the surface and damage to the probe. For continuous usage, before taking a new measurement, the probe needs to be moved away from the coating or plating surface of last measurement for at least 2 seconds.
- Page 4 www.VictorRuoshui.co.kr becomes shorter indicating the current capacity of the batteries; when icon appears in red and blinks, the batteries are low. Please recharge or replace the batteries in this case, otherwise it may affect measurement accuracy. 2-5. Unit of Measurement Press button “...
- Page 5 www.VictorRuoshui.co.kr * Continuous measurement may cause damage to the probe and measured surface. Please use it with caution! Please refer to below figure: 3. Standard Plastic Films & Calibration The instrument is provided with standard plastic films which can be used to check the measurement accuracy, and also used to cover rough or hot surface during measurement to protect the sensor of instrument from possible damage.
- Page 6 www.VictorRuoshui.co.kr range as specified in user’s manual, press and hold “M” button for 2 seconds to enter calibration procedure, the measured value on main display will blink and buzzer will sound at the same time. Press “+” or “-” (or long press “+” or “-” for fast adjustment) to adjust the value to the actual thickness, Press “M”...
