Quick Start

To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.

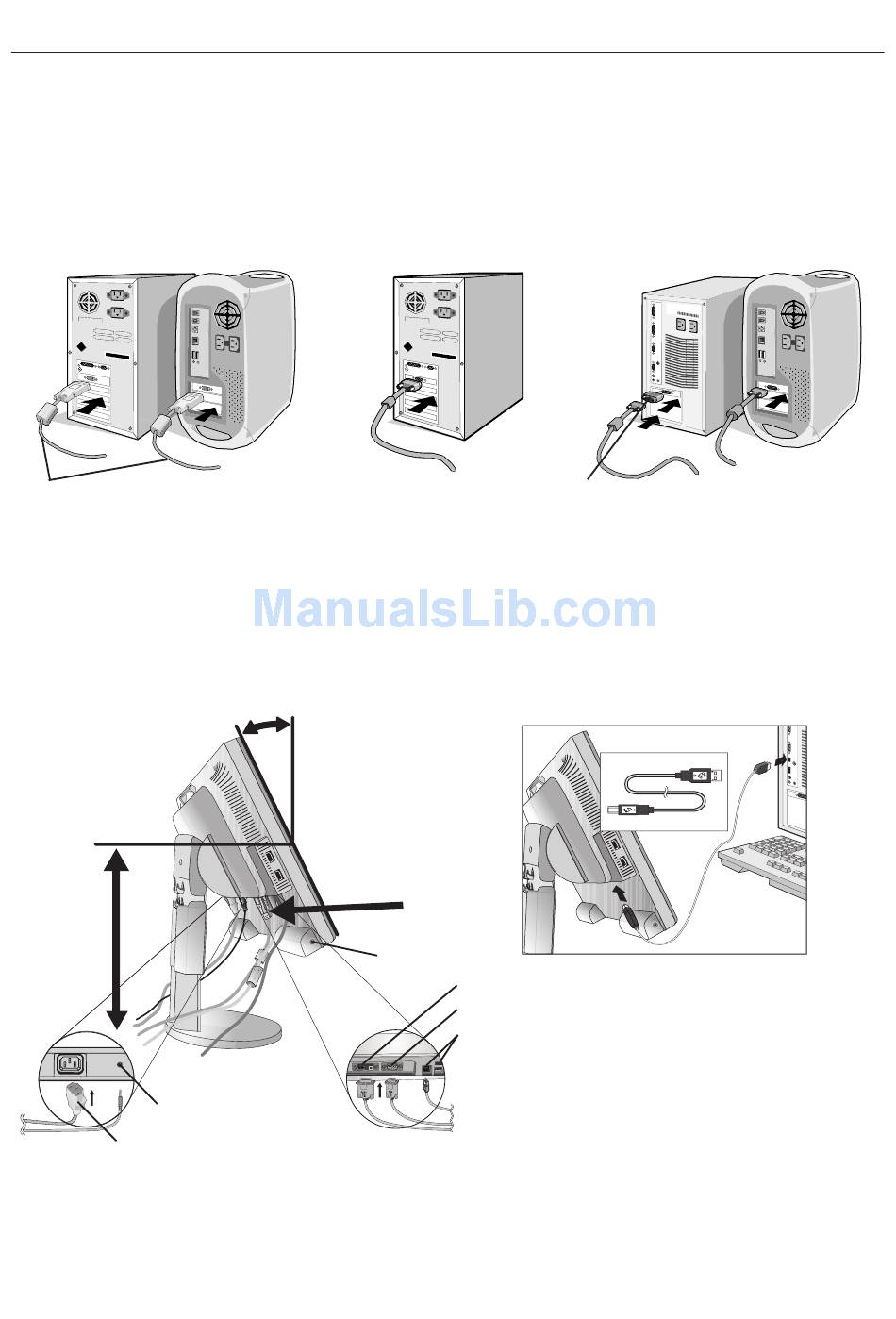

2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to
the Macintosh cable adapter (Figure B.1). Tighten all screws.
DVI signal cable
Figure A.1
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Place hands on each side of the monitor to tilt the LCD panel 30-degree angle and lift up to the highest position
(Figure C.1).
4. Connect all cables to the appropriate connectors (Figure C.1). Connect the Headphone (not included) to the appropriate
connector at the left side of the monitor (Figure C.1). When using the USB cable, connect the B type connector to the
USB upstream port on the right back side of the monitor and the A type connector to the downstream port on the computer
(Figure C.1a). If you can use the cord from the USB device, use one of the downstream ports on the side of the monitor.
Highest
Stand
Position
Audio Input
Power Cord
30˚ Tilt
Figure C.1
Figure A.2
DVI Cable
Headphone
DVI
D-Sub
USB
English-6
Macintosh
Figure B.1
Cable Adapter
(not included)
A Type
B Type
B Type
Figure C.1a
A Type
