Eneo PSA-2400U Hardware Manual

PSA-2400U
Hardware Manual

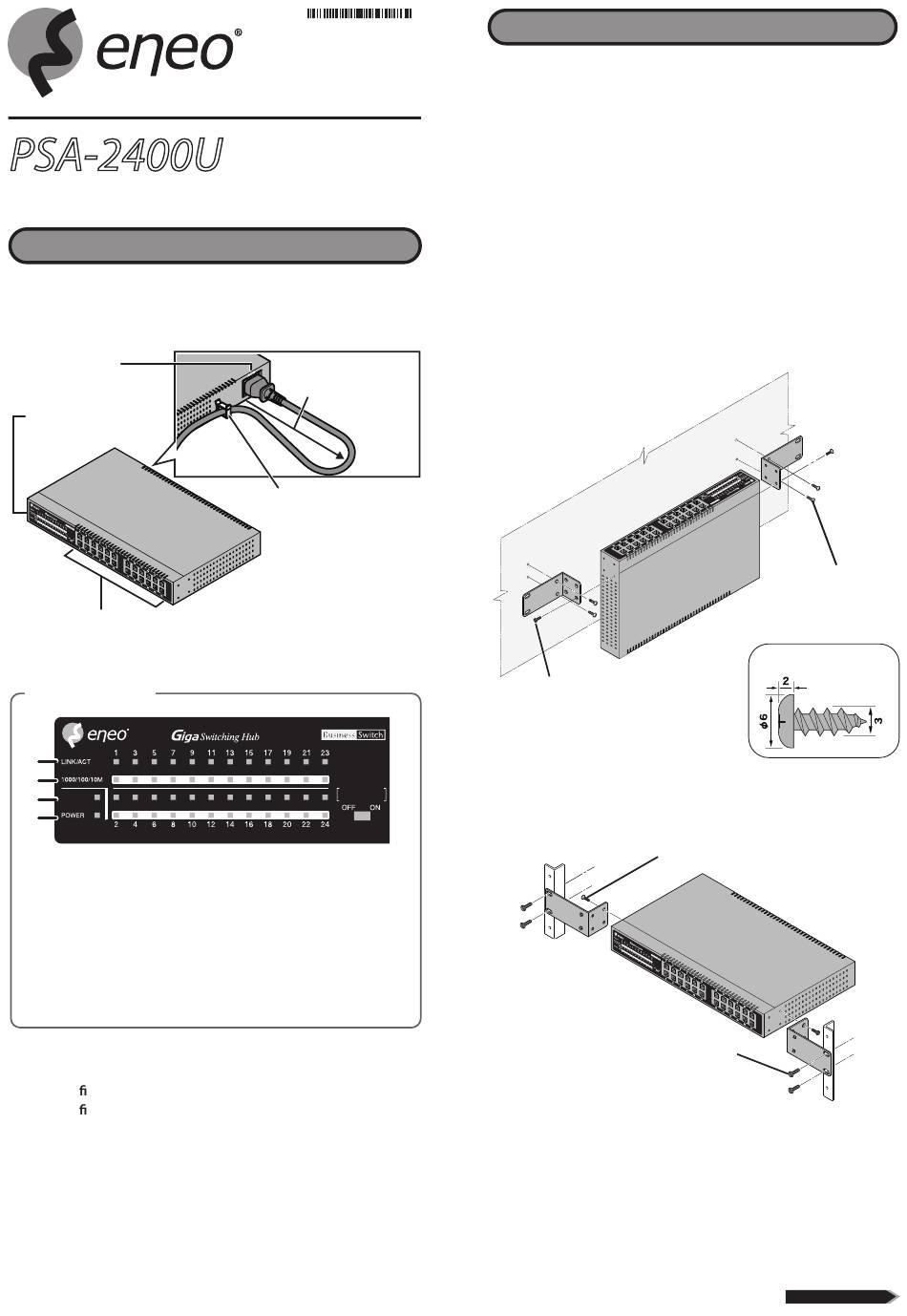

Package Contents

The package contains the items shown below. If any items are missing,
please contact the dealer where you purchased the PSA-2400U.
The appearance of the PSA-2400U may vary from the illustration.
Swiching hub (main unit) ............................................................ 1
AC connector
Connect the supplied power
cord (for 100-240V AC).

LED indicators

See the description below.
LO
OP
PR V.
RE
TO -PO WE
AP PLY R DE
CH VIC
AN GE E
S
LO OP
PR EV
EN TIO
N
100BASE-T/100BASE-TX/10BASE-T ports
These are ports for connecting 100BASE-T/100BASE-TX/10BASE-T devices.
These ports are also used when two hubs are connected in a cascade
configuration. The transmission speed is recognized automatically.
LED Indicators
1
2
3
LOOP PRV.
4
1 LINK/ACTIVE LEDs
These indicate link status and activity for
the ports.
Lit (green): Linked
Flashing (green): Sending or
receiving data
2 1000/100/10M LEDs
These indicate the transmission speed.
Lit (green): Operating at 1000M
Lit (orange): Operating at 100M
Off: Operating at 10M
Power cord .................................................................................... 1
Rubber footpads ........................................................................... 4
Mounting xtures ........................................................................ 2
Mounting xture screws ............................................................ 8
Hardware Manual (this manual) ................................................ 1
Power cable retaining band ...................................................... 1
If any additional information is enclosed on a separate sheet, be sure to
read this information.
35012524-01
To prevent disconnection,
12 cm or more is
recommended.
Power cable
retaining band
RE-POWER DEVICE
TO APPLY CHANGES
LOOP PREVENTION
3 LOOP LED
This flashes (red) during loop blocking.
4 POWER LED
This displays the power ON/OFF status.
Lit (green): Power is turned on.

Installation

Installation Notes

• Do not install on an unstable location such as a wobbly stand or slanted surface.
• Do not place other devices or objects that generate heat on top of this product.
• Arrange the cables neatly to avoid entangling your feet or objects in them.
• Do not block the ventilation holes of the PSA-2400U with another device, walls,
or other objects.
• Be sure to always use the power cord supplied with the PSA-2400U. Cords for
other products will have different specifications, and their use could cause a
breakdown of the PSA-2400U or a fire.

Mounting to a Wall

The PSA-2400U is mounted to a wall using the supplied mounting brackets or the
mounting holes on the bottom. When using the mounting brackets, use the
mounting screws as shown in the figure below, and secure the mounting fixture
and the PSA-2400U.
To mount the unit directly to the wall, attach the screws to the wall first and then
slide the holes on the bottom of the PSA-2400U over the screws.
Before mounting to a wall, check that the wall surface has sufficient strength, and
secure firmly so that the main unit, power cord, and LAN cables do not fall due to
their weight.
Mounting screws
(right and left: 4 each)

Installing on 19-inch Rack

Install as shown in the figure below by using the supplied mounting brackets.
LO
OP
PR
V.
TO -PO RE
AP PLY WE
OP LO
PR
19-inch rack screws (not included)
(right and left: 2 locations)
Screws (not included)
(right and left: 2 each)
Screws (not included)
Mounting screws (right and left: 4 each)
R DE
CH VIC
AN GE E
S
EV EN
TIO N
Proceed to next page
