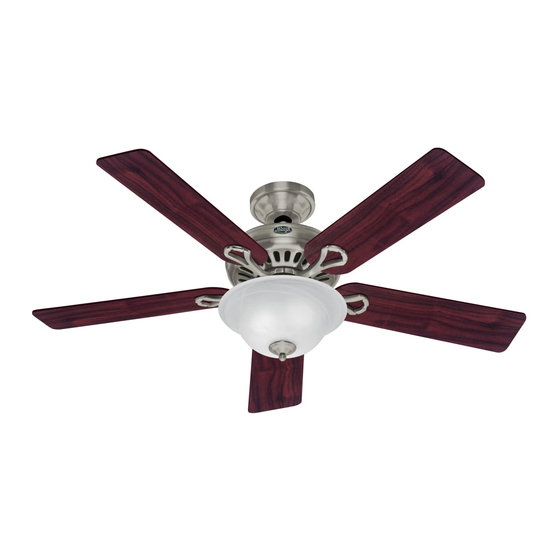

Congratulations on purchasing your new Hunter®
ceiling fan! It will provide comfort and performance
in your home or office for many years. This installation
and operation manual contains complete instructions
for installing and operating your fan.
We are proud of our work and appreciate the
opportunity to supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.

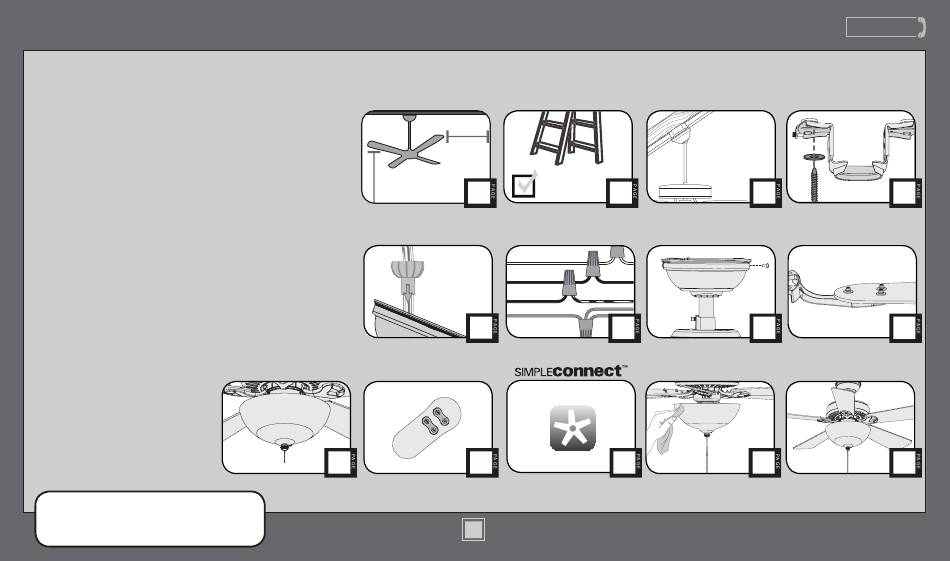

What to Expect with
Your Installation
7 feet
Downrod
Light Kit
Remote Control
13
M3644-01 • 02/01/17 • © 2017 Hunter Fan Company
Tools Needed
30 inches
2
Ladder
3
Wiring
6
9
15
17
1
www.HunterFan.com
Mounting Options
Ceiling Bracket
4
Canopy
Blades
11
Maintenance
& Cleaning
Troubleshooting
?
?
18
1.888.830.1326
5
12
?
20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hunter SIMPLEconnect
Summary of Contents for Hunter SIMPLEconnect
- Page 1 Downrod Wiring Canopy Blades Maintenance Light Kit & Cleaning Troubleshooting Remote Control To register your fan, please visit: www.HunterFan.com/register Save your receipt for proof of purchase. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 2 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 3 The symbols can be used to identify the appropriate hardware for each step. Power Drill 9/64” Drill Bit Screwdrivers (optional) (optional) If mounting to a support structure, you will also need these tools. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 4 You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 5 To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to Refer to warning w.1 on pg. 2 the outlet box associated with the wall switch location. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 6 Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 7 4-5 full turns) until it stops. with pliers. DO NOT can be inserted. from the top of the downrod. HAND TIGHTEN. 8” 3/8” If the setscrew is not tightened securely, the fan may fall. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 8 Put the wires and downrod through the canopy. Let the canopy sit loosely on CANOPY OR WIRES. Place the downrod top of the fan. ball into the slot in the ceiling bracket. Note: Fan style may vary. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 9 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 11 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 12 Align the three blade holes with the three The flared tops of the blade iron posts blade iron posts. Squeeze the blade and the will be fully visible above the blade when blade iron post together. properly assembled. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 13 Go to www.HunterFan.com/FAQs and click the upper switch housing. Failure to properly secure all three switch housing screws could result in the light fixture falling. “How do I install my fan without the light kit?” M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 14 Note: Globe style and number of lights may vary. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 15 Fan OFF button and the Fan ON button for four seconds to pair the remote. To prevent faulty operation, please disconnect power from all other ceiling fans within range while pairing. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 16 To change the fan speed, slowly pull the fan pull-chain switch to select the desired speed. Light Operation: Press and quickly release the ON or OFF button on the remote control to turn the light OFF or ON. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 17 If you have not downloaded the app, do so now. If you are installing multiple plug-in controllers, be sure Visit your app store and search simpleconnect then install. to tap the Controller button that coincides with the correct plug-in control.
- Page 18 Turn power off and back on at the wall (or circuit breaker installation, visit the Info screen in if necessary). the app for FAQs, videos, tutorials, Step 10 must be completed WITHIN THREE MINUTES of and more. restoring power to the fan. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 19 Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly. For questions regarding removing a light kit, call customer service 1-888-830-1326. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
- Page 20 3. Once setup is complete for the first fan, tap the Gear icon on the main screen to navigate to the “Rooms Configured” settings screen. 4. For each additional fan, perform steps 7-10 on this page to complete setup. M3644-01 • 02/01/17 • © 2017 Hunter Fan Company...
