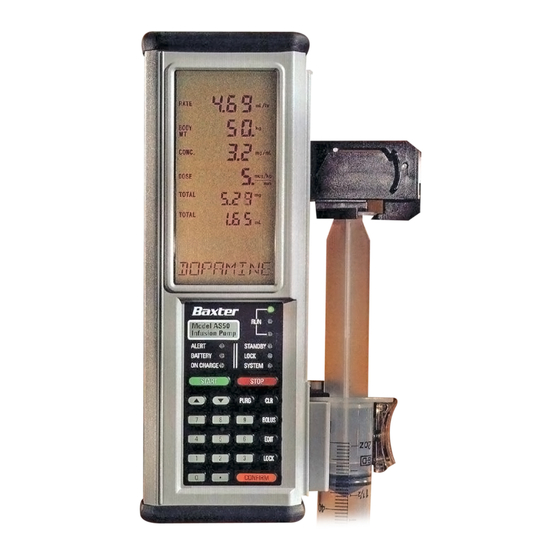

baxter Auto Syringe AS50 Service Manual

Infusion pump
Hide thumbs Also See for Auto Syringe AS50:
Table of Contents

Advertisement

Quick Links

®
Auto Syringe
AS50 Infusion Pump
SERVICE MANUAL
© Copyright 1997, Baxter Healthcare Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Auto Syringe AS50 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for baxter Auto Syringe AS50

Summary of Contents for baxter Auto Syringe AS50

  • Page 1 ® Auto Syringe AS50 Infusion Pump SERVICE MANUAL © Copyright 1997, Baxter Healthcare Corporation. All rights reserved.
  • Page 2 AS50 PUMP SERVICE MANUAL REGISTRATION FORM In order to provide up-to-date service information to our customers, Baxter’s Andover Service Center has instituted a Service Manual Maintenance Program. This program will provide updates, addenda, and service bulletins on a periodic basis to registered users.
  • Page 3 Refer to Appendix E for manual revision history. In the event that two years have elapsed between the most current revision date and product use, the user should contact Baxter Healthcare Corporation to see if additional product information is available.
  • Page 4 Manual Reorder Number AS3AB4001 AS3AB3001 REVISION A 1/99...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 - INTRODUCTION............. GENERAL....................FACTORY SERVICE/ASSISTANCE............1.2.1 Technical Assistance, Service, And Repairs........1-1 1.2.2 Customer Service Related Business..........1-1 1.2.3 Technical Assistance Hotline............CHAPTER 2 - THEORY OF OPERATION..........MECHANICAL..................2-1 2.1.1 Mechanical Drive Assembly............2.1.2 Barrel Clamp Assembly..............
  • Page 6 TABLE OF CONTENTS CHAPTER 4 - FUNCTIONAL TESTS............. BATTERY LIFE CHECK................4.1.1 Replacement Recommendation............. 4-1 FIELD PERFORMANCE CHECK............. 4-2 4.2.1 Purpose..................4-2 4.2.2 Equipment..................4-2 4.2.3 Data Recording................4.2.4 Visual Inspection................4-3 4.2.5 Charging Circuit Check..............4.2.6 Power On Self Test (POST)............4-4 4.2.7 LCD and LED Check..............
  • Page 7 TABLE OF CONTENTS GENERAL....................TROUBLESHOOTING................6.2.1 Tools and Equipment..............6.2.2 Troubleshooting Tips..............AUXILIARY LCD TEST................SYSTEM ERROR CODES................ CHAPTER 7 - DISASSEMBLY/ASSEMBLY PROCEDURES....GENERAL....................DISASSEMBLY PROCEDURES.............. 7-1 7.2.1 End Caps..................7.2.2 Pole Clamp..................7.2.3 Battery Stack Replacement............7-4 7.2.4 Barrel Clamp Assembly..............7-5 7.2.5 Cover and Case Assemblies............
  • Page 8 TABLE OF CONTENTS 8.4.6 ALERTS Group................8-16 8.4.7 CLOCK Group................8-18 8.4.8 IDENT Group................. 8-18 ENTERING TEXT DATA................8-19 FACTORY DEFAULT CONFIGURATION..........8-20 CHAPTER 9 - CONFIGURATION REPLICATION......... GENERAL....................CONFIGURATION REPLICATION PROCEDURE........9-1 9.2.1 Setting up the Source Pump............9.2.2 Setting up the Destination Pump............
  • Page 9 TABLE OF CONTENTS 10.3.8 Power Fault..................10-7 APPENDIX A - SCHEMATICS AND WIRING DIAGRAMS....GENERAL....................APPENDIX B - CIRCUIT BOARD ASSEMBLY DRAWINGS....GENERAL....................APPENDIX C - REPAIR PARTS............GENERAL....................ASSEMBLY PART LISTINGS..............C-1 C.2.1 End Caps..................C.2.2 Pole Clamp Assembly..............C-3 C.2.3 Battery Stack Assembly..............
  • Page 10 TABLE OF CONTENTS - vi -...
  • Page 11 TABLE OF CONTENTS THIS PAGE INTENTIONALLY BLANK - vii -...

  • Page 12: Chapter 1 - Introduction

    Unauthorized repair of a pump before the warranty has lapsed voids the warranty. 1.2 FACTORY SERVICE/ASSISTANCE If factory service is desired, pumps may be returned to Baxter Healthcare for repair. Please call for a return authorization number before shipping any pump to Baxter Healthcare.
  • Page 13 Chapter 1 INTRODUCTION THIS PAGE INTENTIONALLY BLANK 1 - 2...

  • Page 14: Chapter 2 - Theory Of Operation

    THEORY OF OPERATION Chapter 2 2.1 MECHANICAL 2.1.1 Mechanical Drive Assembly 2.1.1.1 Overview The Mechanical Drive Assembly provides several operational functions for the pump. In operation, this assembly: 1. Secures the syringe plunger and linearly pushes the plunger into the syringe barrel; 2.
  • Page 15 Chapter 2 THEORY OF OPERATION Bearing is press fitted to the Force Plate/Insert Assembly to accommodate the other end of the Leadscrew. A Shaft is attached to the Motor Plate Assembly and to the Force Plate/Insert Assembly using two screws. This shaft guides the Plunger Driver back and forth in its range of travel while helping to keep the Plunger Driver Assembly from rotating perpendicularly in relation to the direction of infusion travel.
  • Page 16 THEORY OF OPERATION Chapter 2 • Syringe is Present Mode When the syringe plunger is properly installed in the Mechanical Drive Assembly, the Lever Pin is in the straight portion of the slot on the Slide, the Drive Potentiometer will be activated by the middle spring of the Wiper Spring, and the pump will properly detect the presence of the syringe plunger.

  • Page 17: Barrel Clamp Assembly

    Chapter 2 THEORY OF OPERATION • Lower Plunger Assembly The Plunger Driver Lever rotates in the Plunger Driver Carriage on two Lever Screws that have precise diameters. The Lever Screws act as hubs for the Lever and secure the Lever to the Carriage.

  • Page 18: Pole Clamp Assembly

    THEORY OF OPERATION Chapter 2 The syringe barrel flange is held against the cradle by the tablock bracket. The tablock bracket is raised or lowered by the rotation of the pendulum. One end of the pendulum rides in a slot in the barrel clamp slide. The other end of the pendulum raises the tablock bracket.

  • Page 19: Pole Loop

    Chapter 2 THEORY OF OPERATION The main function of the pole clamp is to attach the pump securely to an IV pole. The pole clamp mounts onto the back of the pump and is held in place by tightening a small thumbscrew.

  • Page 20: Electrical

    THEORY OF OPERATION Chapter 2 2.2 ELECTRICAL 2.2.1 General System Block Diagram Plunger Capture Mechanism Is Mechanically Linked To Drive Position pot Syringe To Lift Wiper If Capture Is Lost Drive Position & Plunger Capture Sensor Strain Gauge Board Lead Screw Force Sensor Secondary Tilt Switch...

  • Page 21: Syringe Barrel Clamp

    Chapter 2 THEORY OF OPERATION mechanism that lifts the wiper on the plunger drive potentiometer if the plunger is not properly captured, this open circuits the potentiometer. The syringe size is determined by a linkage between the barrel clamp and a potentiometer that enables the pump to determine the size of the syringe installed.

  • Page 22: Syringe Plunger Position And Capture Detector

    THEORY OF OPERATION Chapter 2 2.2.3.3 Barrel Position Detector Barrel position detection is provided by two membrane switches connected in series in the barrel clamp assembly. Each switch is activated by pressure of the syringe barrel on its respective half of the barrel cradle. Both switches must be activated to bring “BARREL*” low.

  • Page 23: Battery Pack

    Chapter 2 THEORY OF OPERATION 2.2.8 Battery Pack The battery pack of the pump is a 5 cell 1.5 amp hour Nickel Metal Hydride pack. This gives it a nominal 6 volt operating voltage. Actual battery voltages range from a high of 7.4 volts to 6.1 volts at the low battery threshold.

  • Page 24: I/O Board

    THEORY OF OPERATION Chapter 2 2.2.10 I/O Board The I/O board contains the interface to external electronics for the pump. This includes the battery charge control circuitry and the serial data interfaces. 2.2.10.1 Power Source • Battery Charger The battery charger circuit provides a tapered charge of the battery pack. 2.2.10.2 Zebra Strip Pass Through J10 provides pads on the circuit board for connection to the zebra strip connector to the Syringe Clamp.
  • Page 25 Chapter 2 THEORY OF OPERATION J11-3 is “TXD(OUT).” It is ESD protected by R21, Z7 and C7. It comes from U3B-4 which buffers the signal “RS232_TXD” from J2-6. J11-4 is “RTS*(OUT).” It is ESD protected by Z6 and C6. It comes from U3D-10. U3D-9 connects to “RTS*”...

  • Page 26: Analog Board

    THEORY OF OPERATION Chapter 2 J14-8 is “CTS” and is ESD protected by R17, C24 and U6D. J14-9 is an NC. • VPP[12V](IN) J11-6 is “VPP[12V](IN)”. It is ESD protected by Z1 and C1. C9 provides filtering of line transients. The VPP line is terminated to ground by R4 and isolated from U3F-14 by R9. U3F-15 provides the signal “MAS_EA*”...
  • Page 27 Chapter 2 THEORY OF OPERATION The keyboard is scanned under software control via U11-PB0 to U11-PB5 for the row scanning. The columns are scanned via U12-P1.0 to U12-P1.3. No switches are present at the shaded sections of the table. 2.2.12.2 LED Status Indicators The LED status indicators are located above the keypad.
  • Page 28 THEORY OF OPERATION Chapter 2 The sensor power of the pump is controlled from U11-19, “SENSOR_PWR*”. It controls the gate of Q1 a P-Channel MOSFET. The sensor power on the system is switched on and off to conserve power, especially at low delivery rates. 2.2.12.5 Liquid Crystal Display The LCD display is a custom made STN transflective LCD display panel with alpha- numeric fields and fixed enunciators.

  • Page 29: Software

    Chapter 2 THEORY OF OPERATION 2.3 SOFTWARE 2.3.1 Sensor Calibration Sensor calibration modes include Calibration Review mode and Calibration Set mode. See Chapter 5 for complete instructions regarding sensor calibration. 2.3.1.1 Calibration Review Mode Calibration Review mode allows review of the calibration settings without the risk of altering them.
  • Page 30 THEORY OF OPERATION Chapter 2 3. Pressure Sensor Calibration Review At the start of the pressure sensor calibration sequence the text field displays PRESSENS. The pump begins stepping the motor. After approximately 5 seconds, the digital pressure sensor reading is continuously displayed, and the reading is updated with each motor step. NOTE The motor will not operate and no reading will be displayed unless the plunger capture sensor indicates the presence of a syringe plunger or...
  • Page 31 Chapter 2 THEORY OF OPERATION 2.3.1.1.3 Aborting Calibration Review Calibration review may be aborted at any time by turning off the pump. 2.3.1.1.4 LED Indications During Calibration Review During Calibration Review, the LEDs indicate the following: • The ALERT LED is on when the pump is vertical. •...
  • Page 32 THEORY OF OPERATION Chapter 2 1. Plunger Driver Position Calibration This is accomplished by using calibration standards to input two drive position locations to the pump. The software then utilizes these two reference locations to complete the driver position calibration. With this information, the pump is then able to determine the distance between the plunger driver and the barrel clamp.

  • Page 33: Configuration Replication

    Chapter 2 THEORY OF OPERATION 2. The BATTERY LED is on when the plunger capture detector is detecting a syringe plunger. 3. The STANDBY LED is on when the flange sensor is detecting a syringe flange. 4. The LOCK LED is on when the barrel sensor is detecting a syringe barrel. 2.3.2 Configuration Replication The Configuration Replication feature allows the entire configuration file including protocol libraries and the library access code to be copied from one pump (the source pump)
  • Page 34 THEORY OF OPERATION Chapter 2 • create, modify and delete protocol libraries, and control availability of specific protocol libraries • create, modify and delete protocols • control access to LIBRARY group functions • transfer (replication) configuration from pump to pump •...
  • Page 35 Chapter 2 THEORY OF OPERATION 2.3.3.2.2 Date and Time Display On entry to Configuration Set mode, the pump initially displays the date and time, in the following format: 12.00AM 12/13/95 2.3.3.2.3 Software Version Display Following the date and time display, the pump presents the software version display. The first line of the text display indicates the pump software version.
  • Page 36 THEORY OF OPERATION Chapter 2 CAUTION To prevent corruption of the configuration data, do not turn off the pump or press any key while UPDATING is being displayed. 2.3.3.3 Configuration Groups The pump supports eight configuration groups including: 1. LIBRARY Group 2.
  • Page 37 Chapter 2 THEORY OF OPERATION 2.3.3.3.3 SYRINGES Group The SYRINGES configuration group allows the operator to individually enable and disable various syringe manufacturers and/or syringe sizes offered by them. This group, as follows, contains three syringe manufacturers each offering seven syringe sizes: B-D®...

  • Page 38: Specific Features

    THEORY OF OPERATION Chapter 2 2.3.3.3.6 ALERTS Group The ALERTS group includes the following five options: 1. IDLE ALARM 2. SET NEAR END 3. BOLUS COMPLETE 4. DOSE COMPLETE 5. VOLUME LIMIT 2.3.3.3.7 CLOCK Group The CLOCK group, although not part of the configuration group, allows the operator to set the real-time clock during the configuration process.

  • Page 39: Displaying Additional Program Data

    Chapter 2 THEORY OF OPERATION Complete remote monitoring and control application information is provided in the Auto Syringe® AS50 Infusion Pump Programmer’s Manual. 2.3.4.2 Event Recording Feature The pump has the capability of recording 253 events in EEPROM. The pump maintains two separate logs: the event log and the fail-safe log.
  • Page 40 THEORY OF OPERATION Chapter 2 2.3.6.1 Error Trap Numbering Pump fail-safe errors that are displayed as codes are assigned fixed numbers. Master processor fail-safe error codes will be displayed as ERROR M<code>, where <code> is a six digit number (for example, ERROR M000215). Slave processor fail-safe error codes will be displayed as ERROR L<code>...
  • Page 41 Chapter 2 THEORY OF OPERATION 2.3.6.7 CHARGE DEPLETED Alarm If a CHARGE DEPLETED alarm occurs at power up, the pump will allow the operator to access VB_SENSE calibration by entering “5089”. The pump will skip directly to the VB_SENSE calibration step. 2.3.6.8 FINISH EDITING Alarm The text display, FINISH EDITING, is displayed when additional information is required...

  • Page 42: Chapter 3 - Initial Inspection And Damage Check

    The pump has been thoroughly tested and inspected at the factory prior to shipment and has been found to comply to Baxter’s electrical and mechanical standards. The pump has also been designed to reliably withstand normal shipment and usage conditions. However, abusive handling during shipment may cause either visible or hidden damage.
  • Page 43 Chapter 3 INITIAL INSPECTION AND DAMAGE CHECK THIS PAGE INTENTIONALLY BLANK 3 - 2...

  • Page 44: Chapter 4 - Functional Tests

    To minimize the chances of experiencing a problem with rechargeable batteries, it is advisable to replace them before their service life is expended. Baxter® advises that pump battery replacement be made part of a regularly scheduled maintenance program. Baxter® recommends that the pump’s rechargeable battery be replaced every 16 months.

  • Page 45: Field Performance Check

    Chapter 4 FUNCTIONAL TESTS 4.2 FIELD PERFORMANCE CHECK 4.2.1 Purpose To provide the customer with a procedure to perform a general evaluation of the pump’s safety and performance. • This procedure may be used to comply with JCAHO recommendations for safety and performance testing.

  • Page 46: Visual Inspection

    FUNCTIONAL TESTS Chapter 4 It is recommended that a data sheet be kept each time this procedure is run. The data sheet is located at the end of this chapter. Fill out the pump information at the top of the data sheet before beginning this procedure.

  • Page 47: Power On Self Test (Post)

    Chapter 4 FUNCTIONAL TESTS 4.2.6 Power On Self Test (POST): (*D*) NOTE Read this entire step before turning the pump on. Switch the pump “ON” and verify the following events occur: • The pump sounds a high-low beep; • All segments of the LCD and the LEDs momentarily turn on; •...

  • Page 48: Keypad Check

    FUNCTIONAL TESTS Chapter 4 4.2.8 Keypad Check: (*D*) 1. (*D*) Press and briefly hold down the START and STOP keys one at a time. The pump should sound repeated beeps while each key is held down. NOTE Holding down the START key for a prolonged period of time may cause a “stuck key”...

  • Page 49: Pump Operational Tests

    Chapter 4 FUNCTIONAL TESTS 4.2.10 Pump Operational Tests: (*D*) For all tests listed in this section, the UP ( ), DOWN ( ), EDIT, CLR, CONFIRM, and number keys may be used as necessary to program the pump and to change an existing prescription.
  • Page 50 FUNCTIONAL TESTS Chapter 4 10. (*D* [optional]) If a pressure gauge is being used, record the pressure reading in psi on the data sheet. The reading should be between 12.0 and 20.0 psi. 11. Remove the syringe from the pump. Disconnect pressure gauge if necessary. 4.2.10.2 Near End Alarm Test: (*D*) 1.
  • Page 51 Chapter 4 FUNCTIONAL TESTS 4.2.10.3 Accuracy Test: (*D*) 1. Install an empty B-D® or Monoject® 60 mL syringe in the pump. Set the plunger at the 60 mL mark on the syringe. 2. Program the pump as follows: MODE: mL/hr mode MFG: B-D®...
  • Page 52 FUNCTIONAL TESTS Chapter 4 6. Switch the pump “OFF.” 4.2.10.5 “Fuse Failure” Alarm Test: (*D*) 1. Ensure that the pole clamp and battery are removed from the pump (refer to Chapter 7 for details). Ensure that the battery is connected to the pump. 2.

  • Page 53: Calibration Review

    Chapter 4 FUNCTIONAL TESTS 4.2.11 Calibration Review: (*D*) NOTE If the pump fails any part of this review, the pump must be re- calibrated (refer to Chapter 5). 4.2.11.1 Activating the Calibration Review Mode: 1. Switch the pump “ON” and wait for the pump to complete the POST and prompt for a selection.
  • Page 54 FUNCTIONAL TESTS Chapter 4 6. Remove the fixture from the pump. 4.2.11.3 Plunger Driver Potentiometer and Plunger Capture Checks: This check is performed to verify that the plunger driver position sensor operates properly throughout the entire travel range (1) of the plunger driver from start (2) to end (3) of plunger driver travel.
  • Page 55 Chapter 4 FUNCTIONAL TESTS 4.2.11.4 Tilt Switch Function Check: (*D*) 1. (*D*) Stand the pump upright and observe that the ALERT LED is “ON.” 2. (*D*) Lay the pump horizontally and observe the ALERT LED turns “OFF.” 4.2.11.5 Barrel Clamp and Tab Sensor Checks: (*D*) 1.
  • Page 56 FUNCTIONAL TESTS Chapter 4 6. (*D*) Set the CAS4004801 fixture onto the barrel clamp cradle and repeat steps 3 and 4. The inches number should be between 0.281 to 0.301 inches (0.281 < inches < 0.301). 7. Open the barrel clamp and remove the fixture. 8.
  • Page 57 Chapter 4 FUNCTIONAL TESTS 5. Switch the pump “OFF” and disconnect the charger. 6. Sign and date the data sheet. 4 - 14...

  • Page 58: As50 Functional Test Data Sheet

    FUNCTIONAL TESTS Chapter 4 AS50 FUNCTIONAL TEST DATA SHEET 1 of 2 Pump Serial Number _________________________ Indicate PASS or FAIL, as appropriate, upon completion of each operation. Describe any failures in Comment section and seek appropriate servicing. 4.2.4 Visual Inspection......................... ( ) P ( ) F 4.2.5 Charging Circuit, step 2 ......................
  • Page 59 Chapter 4 FUNCTIONAL TESTS Pump Serial Number _________________________ 4.2.11.3 Plunger Drive step 1 (BATTERY LED is ON)............( ) P ( ) F Potentiometer & step 2 (A/D Count < 3 for TP1)............( ) P ( ) F Plunger Capture step 3 (A/D Count <...

  • Page 60: Chapter 5 - Routine Maintenance

    ROUTINE MAINTENANCE Chapter 5 5.1 GENERAL 5.1.1 Cleaning Interval The pump should be cleaned and disinfected, if necessary, according to frequency of use and hospital protocol. See Section 5.2 for Cleaning and Disinfecting. 5.1.2 Calibration Interval Calibration is recommended every 6 months and recalibration is also required after any procedure involving the removal of the barrel clamp, removal of the plunger driver or opening of the case halves.

  • Page 61: Service Cleaning

    Chapter 5 ROUTINE MAINTENANCE The exterior surfaces of the pump may be cleaned with any of the agents listed in Table 5-1 when used in accordance with manufacturer’s instructions. Some caustic cleaning agents are known to degrade the integrity of the case material. Only those cleaners listed in Table 5-1 used appropriately have been tested with positive results.
  • Page 62 ROUTINE MAINTENANCE Chapter 5 The pump is designed for easy cleaning. The routine cleaning procedure is described under "Routine Cleaning". The Service Cleaning procedure is more thorough than the routine cleaning procedure. Service Cleaning is recommended when conductive, corrosive, or sticky liquids are spilled on the pump. This type of contamination can cause corrosion, binding of moving parts, or frequent syringe related alarms/alert messages.
  • Page 63 Remove the upper plunger driver (see Chapter 7 for details). Surface contamination can be cleaned by wiping with a sponge or cotton swab and any of the Baxter® approved cleaning agents. Do not allow cleaning agents to flow into the drive compartment.

  • Page 64: Calibration Procedure

    ROUTINE MAINTENANCE Chapter 5 5.3 CALIBRATION PROCEDURE 5.3.1 Calibration Overview The pump includes two calibration modes which allow the biomedical/service technician to either set or review calibration settings for several pump sensors. Entering access code 5 0 8 9 initiates the “Calibration Set” mode (covered in this chapter) and permits specific pump sensor settings to be compared against and set according to acceptable calibration standards.

  • Page 65: General Information

    Chapter 5 ROUTINE MAINTENANCE 5.3.4 General Information Read the entire procedure before beginning calibration. When in doubt throughout any portion of the calibration that either the steps exercised might be in error or that the actual results are not matching expected results, shut the pump off and start over.

  • Page 66: Calibration Procedure

    ROUTINE MAINTENANCE Chapter 5 5.3.5 Calibration Procedure 5.3.5.1 Calibration Set-up Plug the charger into a 115 VAC power source and connect the output connector of the charger to the pump’s charger port. 2. Switch the pump “ON” and allow the pump to go through its power-on self-test (POST). 5.3.5.2 Activating Calibration Set Mode NOTE...
  • Page 67 Chapter 5 ROUTINE MAINTENANCE 5.1 Observe the prompt, VERIFY 0.672, on the display. 5.2 Remove the fixture from the barrel clamp. 5.3 Install the calibration fixture (CAS4002801) into the barrel clamp and engage the plunger driver to the fixture. NOTE After installing the fixture, do not touch the plunger face or the fixture.
  • Page 68 ROUTINE MAINTENANCE Chapter 5 CAUTION To prevent corruption of the calibration data, do not turn off the pump while UPDATING is being displayed. 5.3.5.4 Syringe Recognition Detection Calibration Procedure NOTE The syringe support system is relatively compliant and the measurement system is very sensitive. A certain amount of practice may be required to obtain consistent results.
  • Page 69 Chapter 5 ROUTINE MAINTENANCE Observe that CLAMP 0.291 appears on the display. Disregard the A/D count number appearing in Field 3 of the display. Open the barrel clamp and remove the fixture. 10. Set the CAS4004801 fixture onto the barrel clamp cradle and repeat steps 6 and 7. 11.
  • Page 70 ROUTINE MAINTENANCE Chapter 5 • (*D*) If the inches number is not within specification, restart calibration from step 5.3.5.4 and record the “2nd Reading” inches value and “Pass” or “Fail” on the data sheet. 16. Remove the fixture from the pump and install the CAS4005801 fixture. 17.
  • Page 71 Chapter 5 ROUTINE MAINTENANCE 5.3.5.5 Pressure Sensor Calibration Procedure Move the plunger driver to approximately 1/3 the distance from the bottom end of its travel (barrel clamp end). Ensure that the pole clamp is on the pump and mount the pump upside down on the IV pole.
  • Page 72 ROUTINE MAINTENANCE Chapter 5 of this time constraint, this number must be observed and recorded prior to commencement of the 2nd run. Calibrate Zero (0.000 lbs ) - 1st Run 10.1. (*D*) Press CONFIRM and observe the 0.00 LB prompt at the bottom of the display as the motor begins its 1st run.
  • Page 73 Chapter 5 ROUTINE MAINTENANCE 15. Disconnect the charger from the pump. 5.3.5.6 VB SENSE Set-up Procedure CAUTION To eliminate the possibility of causing any damage to the pump, the voltage output from the variable DC power supply must not be adjusted to exceed +7.505 volts at any time during this procedure.
  • Page 74 ROUTINE MAINTENANCE Chapter 5 Observe that CAL VB SENSE appears on the display. Press the arrow key to select Y and press CONFIRM. Ensure the meter reads 7.500 ± 0.005 volts. Verify that the LCD displays VERIFY 7.50 V. Press CONFIRM. Reduce the output of the variable DC power supply until the meter indicates 5.500 ±...
  • Page 75 Chapter 5 ROUTINE MAINTENANCE variable DC power supply to their “OFF” positions. If recalibration is required, check “Fail” on the data sheet. Then reconnect the battery, enter access code 5 0 8 9 , toggle to the desired calibration sequence, and recalibrate as previously specified. 20.

  • Page 76: As50 Calibration Data Sheet

    ROUTINE MAINTENANCE Chapter 5 5.4 AS50 CALIBRATION DATA SHEET Pump Serial Number: ________________________________________________________ PLUNGER DRIVER POSITION CALIBRATION Pass Fail Proc. Step Specification Inches 5.3.5.3 (7) 0.666 < inches < 0.678 5.3.5.3 (9) 2.792 < inches < 2.804 SYRINGE RECOGNITION DETECTION CALIBRATION Pass Fail Proc.
  • Page 77 Chapter 5 ROUTINE MAINTENANCE THIS PAGE INTENTIONALLY BLANK 5 - 18...

  • Page 78: Chapter 6 - Troubleshooting And Repair

    Chapter 6 CHAPTER 6 - TROUBLESHOOTING AND REPAIR 6.1 GENERAL Pumps under warranty must be returned to Baxter® for troubleshooting and repair. Unauthorized disassembly/repair will void your warranty. When the pump is malfunctioning, refer to the troubleshooting information in Table 6-1.

  • Page 79: Troubleshooting Tips

    Chapter 6 TROUBLESHOOTING AND REPAIR 6.2.2 Troubleshooting Tips TABLE 6-1 Symptom Possible Cause Solution Improperly loaded syringe Reload syringe. Constant CHECK SYRINGE alarm (This message indicates two or more mounting points (flange, barrel, plunger) are not correctly positioned.) Pump out of calibration Check calibration and re- calibrate, if necessary.
  • Page 80 TROUBLESHOOTING AND REPAIR Chapter 6 TABLE 6-1 Symptom Possible Cause Solution into unit and observe the charge LED. Charger and/or I/O board may need replacement. Damaged pins in charger Ensure that charger connector connector pins are seated properly. If necessary, replace I/O board.
  • Page 81 Chapter 6 TROUBLESHOOTING AND REPAIR TABLE 6-1 Symptom Possible Cause Solution Pump displays erroneous Malfunctioning LCD Perform Auxiliary LCD Test characters on LCD described in this chapter. If necessary, replace Digital PCB/LCD assembly. FUSE FAILURE message Missing or unplugged battery Check for presence of battery and ensure proper battery connection.
  • Page 82 TROUBLESHOOTING AND REPAIR Chapter 6 TABLE 6-1 Symptom Possible Cause Solution Error code M005005 START key held down too Operator error. long Stuck START key Replace keypad assembly. Error code M035000 or J4 not plugged in properly Ensure proper connection of M035005 Malfunctioning or damaged Replace digital PCB.

  • Page 83: Auxiliary Lcd Test

    Chapter 6 TROUBLESHOOTING AND REPAIR 6.3 AUXILIARY LCD TEST The pump allows a detailed test of the LCD for segment shorts and opens (see Chapter 4 for a detailed illustration of the LCD segments). Switch the pump “ON” and wait for the pump to complete the power-on self test (POST).

  • Page 84: System Error Codes

    TROUBLESHOOTING AND REPAIR Chapter 6 6.4 SYSTEM ERROR CODES Below is a listing of error codes that the pump can generate. Refer to troubleshooting Table 6-1 for corrective action(s) as applicable. This list is provided for reference purposes only. Master Processor Error Description Error...
  • Page 85 Chapter 6 TROUBLESHOOTING AND REPAIR Master Processor Error Description Error Description M006050 tmr_start: Start seconds arg evaluates M010030 dsp_led_set: led arg invalid to 0 M006055 tmr_read: Read pointer NULL M010035 dsp_led_set: color arg invalid M006060 tmr_stop: Stop pointer NULL M010040 dsp_led_set: blink arg invalid M006065 tmr_kill: Kill pointer NULL...
  • Page 86 TROUBLESHOOTING AND REPAIR Chapter 6 Error Description Error Description M013055 slv_tmr_timeout: Slave communications M016015 sys task failed to wake up timeout serial communication overrun M013060 slv_cmd_vbctest: Vbctest command invalid M016020 dynamic check variable bad M014000 msg_send_res_wait: Attempt to send msg to M016025 sys_tsk: bb_run_task failure self...
  • Page 87 Chapter 6 TROUBLESHOOTING AND REPAIR M017040 remote bolus_prog_entries: mL conversion M021050 bolus MG/KG invalid mode error M017045 bolus_start:ml_min mode float conversion M021055 rate_min_max: conc mode rate invalid error M017050 bolus_start:other mode float conversion error M021060 event_log_dose_rate_change: invalid mode M017055 bolus_start: no min data M022000 get_syringe_data: mfr out of range M017060...
  • Page 88 TROUBLESHOOTING AND REPAIR Chapter 6 M027025 msg_send_rsp_wait: response received from M031040 remote_start:Improper message wrong task M027030 kbd_wait: repeat arg invalid M031045 remote_stop:Improper message M028000 cal_vbc_sense TRAP M031050 internal_stop:Improper message M028005 update_cal: failed attempt to write to EEPROM M031055 remote_exit:Improper message M028010 clr_ad_cal: failed attempt to write to EEPROM M031065...
  • Page 89 Chapter 6 TROUBLESHOOTING AND REPAIR M035000 check_batt_status: Force voltage out of range M037050 bolus_number_entry: float to field failed M035005 check_batt_status: Delta Force voltage out of M037055 bolus_number_entry: float to field failed range M035010 text_dsp_check_syringe: Bad check type M037060 bolus_number_entry: float to field failed specification M035015 bolus_tot_wght_dsp: Invalid mode...
  • Page 90 TROUBLESHOOTING AND REPAIR Chapter 6 M039025 get_user_response_hml: should never get M044000 program: SAMPLING_EVENT event did not here occur M039045 edit_unit: arg out of range M044005 select_syr_mfgr: invalid index to syringe mfgr table M039050 set_date_time: bad state M044010 prog_entries: invalid return key from data entry routine M039055 config_group_select: failed attempt to write to...
  • Page 91 Chapter 6 TROUBLESHOOTING AND REPAIR M046030 mtr_tsk: invalid motor interrupt M046120 mtr_tsk: IPDM, too many A/D counts in window M046035 mtr_tsk: ideal pulses - actual pulses >= M046125 mtr_tsk: IPDM, too many pulses in window max_actual_pulses_under M046040 mtr_tsk: actual pulses - ideal_pulses >= M047000 remote_purge ILLEGAL KEY RETURN max_actual_pulses_over...
  • Page 92 TROUBLESHOOTING AND REPAIR Chapter 6 L000008 long watchdog early L000028 unable to latch failsafe / hardware timer L000009 long watchdog late L000029 hardware timer timeout too short L000010 motor_on pulse timeout L000030 unable to reset failsafe from hardware timer L000011 motor step late L000031 excessive encoder pulses / hardware timer test...
  • Page 93 Chapter 6 TROUBLESHOOTING AND REPAIR THIS PAGE INTENTIONALLY BLANK 6 - 16...

  • Page 94: Chapter 7 - Disassembly/Assembly Procedures

    7.1 GENERAL This chapter contains a detailed description of the disassembly and assembly procedure for the Auto Syringe® AS50 Infusion Pump. Contact Baxter Healthcare Corporation, Andover Service Center if you have any questions while servicing the pump. NOTES When performing the procedures of this chapter, exercise extreme caution during disassembly to protect the circuit boards from static discharge.

  • Page 95: End Caps

    Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.1 End Caps • To remove each End Cap (1), lift up the corners of the End Cap (1) and slip them over the molded flanges. During reassembly, ensure that the two feet of each End Cap (2) face towards the back of the pump.

  • Page 96: Pole Clamp

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.2 Pole Clamp NOTES To prevent the pole clamp mounting screw and the stainless steel washer from separating from the Pole Clamp mounting plate, do not remove the retaining ring attached to the mounting screw. The pole clamp cradle is connected to the pole clamp mounting plate with one screw.

  • Page 97: Battery Stack Replacement

    Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.3 Battery Stack Replacement 1. Remove the three black screws (3) at the side of the Battery Cover (2). 2. Place thumb on thumb press of the Battery Cover (2) and apply slight pressure while sliding the Battery Cover (2) away from the pump. Remove the Battery Cover (2). 3.

  • Page 98: Barrel Clamp Assembly

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.4 Barrel Clamp Assembly 7.2.4.1 “Barrel Clamp Assembly” Removal 1. Refer to the side, rear, and exploded views on this page, as necessary, during this and all remaining steps in this section. Open the barrel clamp using either the primary (1) or secondary (2) brake lever.
  • Page 99 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.4.2 Specific Barrel Clamp Assembly Instructions 1. Place a new Barrel Clamp Zebra Strip (1) in the pocket on the pump located beneath the zebra strip support (2). Ensure that, during installation, the metallic strips face toward the top of the pump.
  • Page 100 DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 3. Without moving the pump, position the index fingers of both hands on the secondary brake lever (6) of the Barrel Clamp Assembly (4) and position the thumbs of both hands on the cradle (7) of the Barrel Clamp Assembly. Apply inward and downward pressure against the cradle (7) until the clamp snaps onto the case.
  • Page 101 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.4.3 Barrel Clamp Face 1. Remove the three socket head cap screws (1) securing the Barrel Clamp Slide (2) to the Barrel Clamp Face (3). Observe that the screw removed from the center of the clamp is longer than the other two screws removed. 2.

  • Page 102: Cover And Case Assemblies

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.5 Cover and Case Assemblies (refer to Figures 7-8 and 7-9) CAUTION Three ribbon cables and two flexible cables electrically connect the Cover Assembly (2) to the Case Assembly (3). To prevent any of these cables from sustaining damage, exercise extreme care when separating or joining these assemblies.
  • Page 103 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES CAUTION The flexible conduit cables are extremely delicate and must be handled carefully. Do not bend these cables excessively near their connectors on the Digital PCB. To properly release the flexible cable from J4, the ZIF (zero insertion force) connector, the actuator (white housing) of the connector must be unlocked by sliding it over the conduit towards the top of the cover.
  • Page 104 DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.6 Cover Assembly 1. Remove the End Caps, Pole Clamp, Battery Stack, and Barrel Clamp by following the procedures in sections 7.2.1 through 7.2.4. Separate the Cover Assembly from the Case Assembly by following the procedure in section 7.2.5.
  • Page 105 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 3. Using a small flat-blade screwdriver, push and hold the section of the Cover/Window Assembly (1) near the bottom of the keypad away from the retainer (3). Immediately apply light pressure against the keypad to initially disengage the retainer from the Cover/Window Assembly (1).

  • Page 106: Keypad Assembly

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.7 Keypad Assembly 1. Remove the End Caps, Pole Clamp, Battery Stack, and Barrel Clamp by following the procedures in sections 7.2.1 through 7.2.4. Separate the Top Cover Assembly from the Case Assembly as described in section 7.2.5.

  • Page 107: Analog And Digital Pcb Assemblies

    Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.8 Analog and Digital PCB Assemblies 1. Remove the End Caps, Pole Clamp, Battery Stack, and Barrel Clamp by following the procedures in sections 7.2.1 through 7.2.4. Separate Cover Assembly from Case Assembly described section 7.2.5. Remove the PCB assemblies from the Top Cover/Window Assembly as described in section...

  • Page 108: I/O Board Assembly

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 Then, remove and set aside the Analog PCB Assembly (5) taking care that the Conductive Gasket material (4) does not separate from the PCB. 4. Observe the following: • The Digital/LCD Assembly (1) is held to the Electronic Chassis (3) by the Digital PCB Retainer (6).
  • Page 109 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 1. Remove the End Caps, Pole Clamp, Battery Stack, and Barrel Clamp by following the procedures in sections 7.2.1 through 7.2.4. Separate the Top Cover Assembly from the Case Assembly as described in section 7.2.5. NOTE If the I/O Board Assembly is being replaced, section 7.2.10 must be performed after the replacement is made.
  • Page 110 DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 10. Remove the I/O Board Assembly (5) from the Case Assembly. NOTE Ensure that the RS232 Gasket (18) is present on J14 of the I/O Board Assembly. SQUARE CORNER NOTES: ON/OFF SWITCH IS PART OF I/O BOARD ASSY. CHARGER PORT CONNECTOR IS PART OF I/O BOARD ASSY.

  • Page 111: Setting Of Battery Charging Current

    Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.10 Setting of Battery Charging Current NOTE This section is to be performed whenever the I/O Board Assembly is replaced. 1. Attach an 89 ohm (± .1%, 1 watt) resistor across the terminals of the pump’s battery connector (P12).

  • Page 112: Pole Clamp Hardware

    DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 7.2.11 Pole Clamp Hardware 1. Separate the Top Cover Assembly from the Case Assembly as described in section 7.2.5. 2. Remove the pole clamp hardware (Hex Insert (1), 10-32 x .25 Pan Head Screw (2), and .036 Thick Flat Stainless Steel Washer (3)) from the case.
  • Page 113 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES 7.2.12 Upper Plunger Assembly 1. Using 1/16″ punch equivalent, push the Lever Pin (1) out from the Upper Plunger Assembly (2). 2. Slowly and carefully, pull out the Upper Plunger Assembly (2) until the two channels on the side of the Plunger Driver Slide (3) separate (disengage) from the two side rails (4) on the...
  • Page 114 DISASSEMBLY/ASSEMBLY PROCEDURES Chapter 7 NOTE After reassembly, confirm that the Plunger Driver Assembly functions properly by exercising this assembly several times. Figure 7-16 Stepped Pin Removal 7 - 21...
  • Page 115 Chapter 7 DISASSEMBLY/ASSEMBLY PROCEDURES THIS PAGE INTENTIONALLY BLANK 7 - 22...

  • Page 116: Chapter 8 - System Configuration

    SYSTEM CONFIGURATION Chapter 8 SYSTEM CONFIGURATION 8.1 GENERAL System configuration modes include Configuration Review mode and Configuration Set mode. NOTE For a complete listing of the factory default configurations, see the tables at the end of this chapter. 8.2 CONFIGURATION REVIEW MODE Configuration Review mode allows review of configurable options without risk of altering them.

  • Page 117: Activating Configuration Set Mode

    Chapter 8 SYSTEM CONFIGURATION • enable/disable “Default to Previous” feature for protocol library, protocol, mode, and syringe manufacturer • enable/disable Remote Control feature • enable/disable Protocol Library feature • enable/disable Size Override feature • control occlusion detection sensitivity • control audio volume range •...

  • Page 118: Configuration Set Sequence

    SYSTEM CONFIGURATION Chapter 8 The following example shows a software version display for software version 7.00.04, configuration version Al and configuration checksum of 3AC5. software version V 7.0 0.04 3AC5 configuration version configuration checksum The configuration checksum allows a high-confidence rapid comparison of configuration files between two pumps.

  • Page 119: Configuration Groups

    Chapter 8 SYSTEM CONFIGURATION 8.4 CONFIGURATION GROUPS 8.4.1 LIBRARY Group The LIBRARY configuration group allows the operator to create and modify protocols and protocol libraries, and to perform pump-to-pump configuration replication. To select the LIBRARY group, confirm a Y response to the CONFIG LIBRARY prompt. 8.4.1.1 Library Access Code The pump displays ENTER CODE.
  • Page 120 SYSTEM CONFIGURATION Chapter 8 At the SELECT PROTOCOL prompt, press to select the protocol to be modified, and press CONFIRM to complete the selection. Once a protocol has been selected, the pump displays NAME <protocol-name> where <protocol-name> is the name of the selected protocol. Press CONFIRM to accept the current protocol name, or change the name to any name that is not already assigned to another protocol within the same library.
  • Page 121 Chapter 8 SYSTEM CONFIGURATION Next, the pump displays ALLOW BOLUS with a Y or N response, indicating respectively that bolus delivery is currently allowed or disallowed by the protocol. Press necessary to change the response and press CONFIRM to complete this step. Next, the pump displays a BOLUS SIZE prompt.
  • Page 122 SYSTEM CONFIGURATION Chapter 8 CAUTION To prevent corruption of the configuration data, do not turn off the pump while UPDATING is being displayed. 8.4.1.2.4 MODIFY LIBRARY The MODIFY LIBRARY function allows the operator to rename, enable or disable a protocol library. Immediately after the MODIFY LIBRARY function is selected, the pump displays ENABLE NONE LIBRARY OPTION with a Y or N response, indicating respectively that the option is currently enabled or disabled.
  • Page 123 Chapter 8 SYSTEM CONFIGURATION 8.4.1.2.5 DELETE LIBRARY The DELETE LIBRARY function allows the operator to delete a protocol library. The library to be deleted must be empty, that is, any protocols in the library must first have been deleted. If the pump displays SELECT LIBRARY, press as necessary to select the library to be deleted, and press CONFIRM to complete the selection.
  • Page 124 SYSTEM CONFIGURATION Chapter 8 changes were made to the protocol, the pump displays UPDATING immediately. The mode assigned to a protocol will be available when that protocol is selected during normal programming, even if the mode is not enabled in the MODES configuration group. CAUTION To prevent corruption of the configuration data, do not turn off the pump while UPDATING is being displayed.
  • Page 125 Chapter 8 SYSTEM CONFIGURATION The CREATE LIBRARY function allows the operator to create a new, empty protocol library. The pump displays NAME. Line 2 of the text display is blank. Enter a name that is not already assigned to another library. Press CONFIRM to complete the library name entry. Next, the pump displays ENABLE NONE LIBRARY OPTION with a Y response, indicating that the option is currently enabled.

  • Page 126: Modes Group

    SYSTEM CONFIGURATION Chapter 8 Refer to Chapter 9, CONFIGURATION REPLICATION. 8.4.2 MODES Group The MODES configuration group allows the operator to individually enable and disable each of the 18 infusion modes. Only enabled modes are displayed at the SELECT MODES programming step. To select the MODES group confirm a Y response to the CONFIG MODES prompt.

  • Page 127: Defaults Group

    Chapter 8 SYSTEM CONFIGURATION indicating respectively that syringe is currently enabled or disabled. Only enabled syringes are displayed at the SELECT SIZE programming step and only enabled syringes are recognized by Syringe Recognition. For each selection, press if necessary to change the response and press CONFIRM to complete the setting.

  • Page 128: Misc Group

    SYSTEM CONFIGURATION Chapter 8 8.4.4.2 DFAULT PROTOCOL The DFAULT PROTOCOL option determines the response of the pump to the first arrow key press following the SELECT PROTOCOL programming prompt. Y The pump displays the name of the last used protocol selection if the last used library is selected, else it displays the first protocol selection (in the alphabetical sequence) in the selected library.
  • Page 129 Chapter 8 SYSTEM CONFIGURATION • ENABLE DB9 PORT To select the MISC group, confirm a Y response to the CONFIG MISC prompt. Unless otherwise instructed, for each option or prompt press if necessary to change the response and press CONFIRM to complete the setting. 8.4.5.1 REMOTE CONTROL The REMOTE CONTROL option determines whether remote control operation is allowed.
  • Page 130 SYSTEM CONFIGURATION Chapter 8 Syringe Configuration Setting Size 30,35 10,12 8.4.5.5 AUDIO RANGE The AUDIO RANGE option determines the audio circuit output level. This option allows one of two possible responses: L (low) or H (high). 8.4.5.6 RATE RANGE The RATE RANGE option determines the maximum infusion rate. This option allows one of three possible responses: L (low) maximum rate = 15mL /hr (0.25 mL/min)

  • Page 131: Alerts Group

    Chapter 8 SYSTEM CONFIGURATION press. Press CONFIRM to accept the current setting or enter a new value of 0 to 60 minutes and press CONFIRM to complete the setting. NOTES If the pump goes into a Low Battery condition, the backlight ‘on’ time is temporarily reduced to a maximum of 2 minutes for each key press.
  • Page 132 SYSTEM CONFIGURATION Chapter 8 8.4.6.1 IDLE ALARM The IDLE ALARM option determines whether a PUMP IS IDLE condition will be indicated by an alert or an alarm. This option allows one of two possible selections: Y or N. Y A PUMP IS IDLE condition will be indicated by an alarm. N A PUMP IS IDLE condition will be indicated by an alert.

  • Page 133: Clock Group

    Chapter 8 SYSTEM CONFIGURATION 8.4.6.5 VOLUME LIMIT The VOLUME LIMIT option determines whether the VOLUME LIMIT alarm is enabled. This option allows one of two possible selections: Y or N. Y The VOLUME LIMIT alarm is enabled. N The VOLUME LIMIT alarm is disabled. 8.4.7 CLOCK Group The CLOCK group allows the operator to set the real-time clock.

  • Page 134: Entering Text Data

    SYSTEM CONFIGURATION Chapter 8 8.5 ENTERING TEXT DATA The following rules apply for entering library names, protocol names and the identifier (IDENT) field: • The current character position is indicated by flashing. • A flashing underscore (‘_’) character is used to indicate a blank in the current character position.

  • Page 135: Factory Default Configuration

    Chapter 8 SYSTEM CONFIGURATION 8.6 FACTORY DEFAULT CONFIGURATION Protocol Libraries Library Drug Protocol Default Default Default Bolus NONE Protocol Name Name Name Mode Allowed Conc. Dose Bolus Selection Option (mg/ml) Rate ANALGESC Alfentanil ALFENTAN MCG/KG/MIN 0.05 ---- ---- Remifentanil REMIFENT MCG/KG/MIN 0.05 ----...
  • Page 136 SYSTEM CONFIGURATION Chapter 8 8.6 FACTORY DEFAULT CONFIGURATION (CONTINUED) DEFAULTS Group MODES Group SYRINGES Group Option Setting Option Setting Option Setting LIBRARY ML/MIN B-D® PROTOCOL ML/HR 1mL SLIP TIP MODE MUNITS/MIN 3 mL MUNITS/HR 5 mL PLASTIC UNITS/MIN 10 mL PLASTIC UNITS/HR 20 mL SINGLE DOSE...
  • Page 137 Chapter 8 SYSTEM CONFIGURATION THIS PAGE INTENTIONALLY BLANK 8 - 22...

  • Page 138: Chapter 9 - Configuration Replication

    9.2 CONFIGURATION REPLICATION PROCEDURE TOOLS REQUIRED: Small Phillips® screwdriver Replication Cable (Baxter® P/N 2M8155) 9.2.1 Setting up the Source Pump 1. Ensure that the source pump is turned off. 2. Remove the DB9 port’s cover and connect the replication cable to this port. Secure the cable with the attached thumbscrews.

  • Page 139: Setting Up The Destination Pump

    Chapter 9 CONFIGURATION REPLICATION spaces provided on the Data Sheet at the end of this Chapter. The S/W Version is displayed on line 1. The Configuration Version is displayed on the left side of line 2 and the Configuration Checksum is displayed on the right side of line 2. If you need to review these numbers again, repeat steps 8-10.
  • Page 140 CONFIGURATION REPLICATION Chapter 9 NOTE If the LOCK key is pressed on the source pump while sending, the replication will be interrupted. This will cause a COMM FAULT in the destination pump. 4. When configuration replication is complete (approx. 2 minutes), the destination pump will display UPDATE FINISHED.

  • Page 141: Error Recovery

    Chapter 9 CONFIGURATION REPLICATION 9.2.4 Error Recovery If the destination pump alarms because replication was interrupted, perform the following procedure. 1. Turn off both pumps. 2. Turn on the destination pump. Following the POST, the pump will issue a CONFIG CORRUPT alarm.

  • Page 142: Replication Data Sheet

    CONFIGURATION REPLICATION Chapter 9 REPLICATION DATA SHEET SOURCE PUMP DESTINATION PUMP S/W Version Conf. Conf. S/W Version Conf. Conf. Version Checksum Version Checksum This page may be reproduced. 9 - 5...
  • Page 143 Chapter 9 CONFIGURATION REPLICATION THIS PAGE INTENTIONALLY BLANK 9 - 6...

  • Page 144: Chapter 10 - Alerts And Alarms

    ALERTS AND ALARMS Chapter 10 10.1 GENERAL This chapter contains detailed descriptions of alert and alarm conditions not listed in the pump Operator’s Manual. 10.2 ALERTS 10.2.1 Cal Invalid Cause: invalid calibration reading Audio response: single beep LED response: none Message duration: 2 seconds 1.

  • Page 145: Date Invalid

    Chapter 10 ALERTS AND ALARMS 10.2.3 Date Invalid Cause: realtime clock requires manual setting Audio response: single beep LED response: none Message duration: 2 seconds Issued following the lamp test portion of the power-on self test (POST), if the realtime clock has been reset due to a power interruption, such as disconnection of the battery or a CHARGE DEPLETED condition.

  • Page 146: Name Invalid

    ALERTS AND ALARMS Chapter 10 10.2.7 Name Invalid Cause: “NONE” or all blanks entered for library or protocol name Audio response: single beep LED response: none Message duration: 2 seconds Issued during the MODIFY PROTOCOL, CREATE PROTOCOL, MODIFY LIBRARY or CREATE LIBRARY function if all blanks or “NONE”...

  • Page 147: Alarms

    Chapter 10 ALERTS AND ALARMS 10.3 ALARMS 10.3.1 Cal Sensors Cause: The pump’s calibration data has been corrupted. Indicates a malfunctioning digital PCB. Audio response: single beep LED response: none Message duration: until <5089> code is entered Issued if the pump detects, during the POST, that any of the four sensor functions has not been calibrated.

  • Page 148: Comm Timeout

    ALERTS AND ALARMS Chapter 10 If the alarm occurs before any data is received, it may be cleared by pressing any key. The pump returns to the SELECT FUNCTION prompt, and the RECEIVE function may be selected again. If the alarm occurs while configuration replication is in progress, a keypress will silence the audio portion of the alarm only.

  • Page 149: Config Mismatch

    Chapter 10 ALERTS AND ALARMS A CONFIG CORRUPT alarm condition requires one of two remedies: replication of a complete valid configuration from another pump, or downloading a configuration via the DB9 port. If the key sequence 9,8,0,5 is pressed in response to a CONFIG CORRUPT alarm following the POST, the pump assumes that the operator wishes to perform a replication.

  • Page 150: Fuse Failure

    ALERTS AND ALARMS Chapter 10 automatically selects the RECEIVE function and displays PRESS START TO RECEIVE OR CLR TO QUIT. If CLR is pressed, the pump restarts the power-up sequence. If the Library Index data appears to be corrupt, the pump skips the ENTER CODE prompt and displays PRESS START TO RECEIVE OR CLR TO QUIT.
  • Page 151 Chapter 10 ALERTS AND ALARMS THIS PAGE INTENTIONALLY BLANK 10 - 8...
  • Page 152 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A A.1 GENERAL This appendix contains all of the schematic and wiring diagrams for the pump. A table of contents for this section is shown below: DRAWING NUMBER DESCRIPTION D-AS50-01-350 SCHEMATIC, AS50 PUMP, I/O BOARD (1 sheet) C-AS50-01-351 SCHEMATIC, AS50 PUMP, STRAIN GAUGE BOARD (1 sheet) D-AS50-01-352...

  • Page 153: Appendix Aschematics And Wiring Diagrams

    APPENDIX A SCHEMATICS AND WIRING DIAGRAMS I/O PCB SCHEMATIC D-AS50-01-350 A - 2...
  • Page 154 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A STRAIN GAUGE PCB SCHEMATIC D-AS50-01-351 A - 3...
  • Page 155 APPENDIX A SCHEMATICS AND WIRING DIAGRAMS ANALOG PCB SCHEMATIC D-AS50-01-352 (1 of 4) A - 4...
  • Page 156 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A ANALOG PCB SCHEMATIC D-AS50-01-352 (2 of 4) A - 5...
  • Page 157 APPENDIX A SCHEMATICS AND WIRING DIAGRAMS ANALOG PCB SCHEMATIC D-AS50-01-352 (3 of 4) A - 6...
  • Page 158 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A ANALOG PCB SCHEMATIC D-AS50-01-352 (4 of 4) A - 7...
  • Page 159 APPENDIX A SCHEMATICS AND WIRING DIAGRAMS DIGITAL PCB SCHEMATIC D-AS50-01-353 (1 of 5) A - 8...
  • Page 160 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A DIGITAL PCB SCHEMATIC D-AS50-01-353 (2 of 5) A - 9...
  • Page 161 APPENDIX A SCHEMATICS AND WIRING DIAGRAMS I I I I 2 SCL I I I I 2 SDA TP16 OPEN PCF8576 “000” TLC271 56.2K PCF8576 “001” LCD1 JM236 LCD1 97 LCD1 96 OC452 TP15 HP HLMP-CL00 BRIGHT ORANGE HP HLMP-CL00 LCD1 71 100K LCD1...
  • Page 162 SCHEMATICS AND WIRING DIAGRAMS APPENDIX A U2 4 AND U3 4 U2 3 AND U3 3 U2 12 AND U3 12 I I I I 2 SCL U2 2 AND U3 2 I I I I 2 SDA U2 1 AND U3 1 PCF8576 “002”...
  • Page 163 APPENDIX A SCHEMATICS AND WIRING DIAGRAMS EXPANDED Ι Ι Ι Ι 2C MEMORY Ι Ι Ι Ι C EACH CONTAINS 2K BYTES S1 * TEST S1 * TEST VSS SDA VSS SDA X24164 X24164 Ι2C 1100 Ι2C 1000 S1 * TEST S1 * TEST VSS SDA VSS SDA...

  • Page 164: General

    CIRCUIT BOARD ASSEMBLY DRAWINGS APPENDIX B B.1 GENERAL This appendix contains the circuit board assembly drawings for the pump. A table of contents for this section is shown below: DRAWING NUMBER DESCRIPTION D-AS50-01-350 ASSEMBLY, AS50 PUMP, I/O BOARD C-AS50-01-351 ASSEMBLY, AS50 PUMP, STRAIN GAUGE BOARD D-AS50-01-352 ASSEMBLY, AS50 PUMP, ANALOG BOARD D-AS50-01-353...

  • Page 165: Appendix Bcircuit Board Assembly Drawings

    APPENDIX B CIRCUIT BOARD ASSEMBLY DRAWINGS I/O PCB ASSEMBLY D-AS50-01-350 B - 2...
  • Page 166 CIRCUIT BOARD ASSEMBLY DRAWINGS APPENDIX B R100 STRAIN GAUGE PCB ASSEMBLY C-AS50-01-351 B - 3...
  • Page 167 APPENDIX B CIRCUIT BOARD ASSEMBLY DRAWINGS ANALOG PCB ASSEMBLY D-AS50-01-352 B - 4...
  • Page 168 CIRCUIT BOARD ASSEMBLY DRAWINGS APPENDIX B DIGITAL PCB ASSEMBLY D-AS50-01-353 B - 5...
  • Page 169 APPENDIX B CIRCUIT BOARD ASSEMBLY DRAWINGS THIS PAGE INTENTIONALLY BLANK B - 6...

  • Page 170: General

    REPAIR PARTS APPENDIX C C.1 GENERAL This appendix contains a part listing of the components of the pump. There are three part list types contained in this appendix, by major assembly, alphabetical, and numerical. The numerical and alphabetical lists are cross referenced to the assembly specific parts list by figure and index number.
  • Page 171 APPENDIX C REPAIR PARTS C.2.1 End Caps Table C-A End Caps Figure Part Description Baxter® Part Quantity per ID Number Number Pump End Caps, Black DAS4005481 (Standard) Gray DAS4001481 Blue DAS4002481 Green DAS4003481 Orange DAS4004481 Light Blue DAS4006481 Light Pink...

  • Page 172: Pole Clamp Assembly

    REPAIR PARTS APPENDIX C C.2.2 Pole Clamp Assembly Table C-B Pole Clamp Part Description Baxter® Part Quantity per Number Assembly Pole Clamp Assembly AAS5001500RP The pump is provided with a removable IV pole clamp. The typical usage is for mounting the pump to a vertical pole.

  • Page 173: Battery Stack Assembly

    APPENDIX C REPAIR PARTS C.2.3 Battery Stack Assembly Table C-C Battery Figure Part Description Baxter® Part Quantity ID Number Number Assembly Battery Stack Assembly AAS4001552RP Battery Cover Assembly AAS5001473RP 2-32 x 3/16" Black Pan Head Philips Screws S023203663 Figure C-C Battery C.2.4 Barrel Clamp Assembly...

  • Page 174: Cover Assembly

    REPAIR PARTS APPENDIX C Table C-D Barrel Clamp Figure Part Description Baxter® Part Quantity ID Number Number Assembly Barrel Clamp Assembly AAS5001503RP (Includes items D2-D10) AS50 Pump Caution Decal BAS5001010 Clamp Face Decal BAS5001009 Barrel Clamp Face CAS5001453 Molded Lever End CAS4001490 4-40 x 5/16"...
  • Page 175 APPENDIX C REPAIR PARTS Table C-E Cover Assembly Figure Part Description Baxter® Part Quantity ID Number Number Assembly Cover/Window Assembly AAS5001522RP 2-56 x 9/16" Socket Head Cap Screw S025609600 Plunger Warning Decal BAS5001018 Cover Screw BAS4001653 Digital/LCD PCB Assembly DAS5001353...

  • Page 176: Case Assembly

    REPAIR PARTS APPENDIX C COVER SCREW Figure C-E Cover Assembly C.2.6 Case Assembly C - 7...
  • Page 177 APPENDIX C REPAIR PARTS Table C-F Case Assembly Figure Part Description Baxter® Part Quantity per ID Number Number Assembly Case/IV Pole Loop/Drive Assembly AAS5001531R Battery Warning Decal BAS5001011 10-32 x 3/8" Hex Insert A100301439 RS232 Connector Cover BAS5001475 4-40 x 3/16" Button Head Screw...

  • Page 178: Upper Plunger Assembly

    REPAIR PARTS APPENDIX C NOTES: ON/OFF SWITCH IS PART OF I/O BOARD ASSY. CHARGER PORT CONNECTOR IS PART OF I/O BOARD ASSY. SPEAKER ASSY IS PART OF I/O BOARD ASSY. SQUARE CORNER Figure C-F Case Assembly C.2.7 Upper Plunger Assembly C - 9...
  • Page 179 APPENDIX C REPAIR PARTS Table C-G Upper Plunger Assembly Figure Part Description Baxter® Part Quantity per ID Number Number Assembly Upper Plunger Assembly AAS5001506RP (Includes items G2 and G3) Plunger Driver Slide DAS5001455 Stepped Pin BAS5001406 Plunger Driver Decal BAS5001017...

  • Page 180: Charger Assembly

    REPAIR PARTS APPENDIX C C.2.8 Charger Assembly Table C-H Charger Assembly Part Description Baxter® Part Quantity per Number Assembly Charger Assembly CAS4001900 Figure C-H Charger C - 11...

  • Page 181: Alphabetical Parts List

    APPENDIX C REPAIR PARTS C.3 ALPHABETICAL PARTS LIST Description Baxter® Part Figure Index Unit Number Number Number .036 Stainless Steel Washer A100301429 F-16 10-32 x 1/4" Pan Head Screw S103204613 F-17 10-32 x 3/8" Hex Insert A100301439 2-32 x 3/16" Black Pan Head Screw S023203663 2-56 x 1/4"...
  • Page 182 REPAIR PARTS APPENDIX C C.3 ALPHABETICAL PARTS LIST (CONTINUED) Description Baxter® Part Figure Index Unit Number Number Number End Cap, Orange Rubber DAS4004481 End Cap, Purple Rubber DAS4008481 I/O PCB Assembly DAS5001350 F-11 Instruction Decal BAS5001015 Keypad Assembly AAS5001523RP Lever Pin...

  • Page 183: Numerical Parts List

    APPENDIX C REPAIR PARTS C.4 NUMERICAL PARTS LIST Baxter® Part Description Figure Index Unit Number Number Number A100301249 Barrel Clamp Zebra Strip A100301429 .036 Stainless Steel Washer F-16 A100301439 10-32 x 3/8" Hex Insert AAS4001552RP Battery Stack Assembly AAS5001473RP Battery Cover Assembly...
  • Page 184 REPAIR PARTS APPENDIX C C.4 NUMERICAL PARTS LIST (CONTINUED) Baxter® Part Description Figure Index Unit Number Number Number DAS4002481 End Cap, Blue Rubber DAS4003481 End Cap, Green Rubber DAS4004481 End Cap, Orange Rubber DAS4005481 End Cap, Black Rubber DAS4006481 End Cap, Light Blue Rubber...
  • Page 185 APPENDIX C REPAIR PARTS THIS PAGE INTENTIONALLY BLANK C - 16...

  • Page 186: Appendix D - Product Updates

    PRODUCT UPDATES APPENDIX D D.1 GENERAL This appendix describes major updates to the pump. The updates are listed by serial number and/or software revision number of when the change occurred. In many instances a different part number is assigned for compatibility reasons. To ensure proper fit and operation of parts, make sure that you check all updates that may apply to a particular serial number.
  • Page 187 APPENDIX D PRODUCT UPDATES THIS PAGE INTENTIONALLY BLANK D - 2...

  • Page 188: Appendix E - Manual Revision Notices

    MANUAL REVISION NOTICES APPENDIX E Revision Date General Description of Changes 3/98 Release 1/99 Software version and default configuration changes. E - 1...
  • Page 189 APPENDIX E MANUAL REVISION NOTICES THIS PAGE INTENTIONALLY BLANK E - 2...

  • Page 190: Appendix F - Repair

    REPAIR HISTORY APPENDIX F F - 1...
  • Page 191 APPENDIX F REPAIR HISTORY F - 2...
