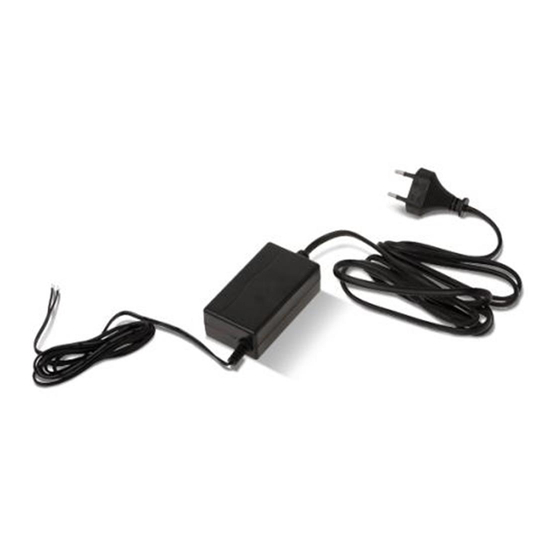

Switching power supply/battery charger providing 1.1a @ 14v

Advertisement

For
Switching power supply/Battery charger
indoor
use only
The IPS12015 switching adapter/battery charger has been designed to the high standards of
quality, reliability and performance adopted by INIM Electronics. The Declaration of Conformity can
be viewed at URL www.inim.biz.
The IPS12015 switching adapter provides a stabilized output voltage of 14V and a maximum
current of 1.1A.
The output is overload and short-circuit protected.
A
Switching adapter / Battery charger
B
Mains cable (cable length: 1.25m)
C
Connector for mains cable
D
Output wires (cable length: 1.45 m)
E
Negative terminal (black with white strips)
F
Positive terminal (black)
Current consumption
Maximum output current
Operating temperature
Dimensions (W x H x D, without cables)
Weight (with cables)
Output voltage Ripple
Terminal type
IPS12015
providing 1.1A @ 14V
A
D

Technical features

Input voltage
Output voltage
EN IEC 62368-1
Isolation class
AC input
DC output
C
B
230V~ (-15%/+10%) 50/60Hz
0.22A (max)
14V
1.1A
from -5 to +40 °C
95 x 28 x 42 mm
0.158Kg
<1%
II
ES3, PS3
ES1, PS1
E
F
(±4%)
