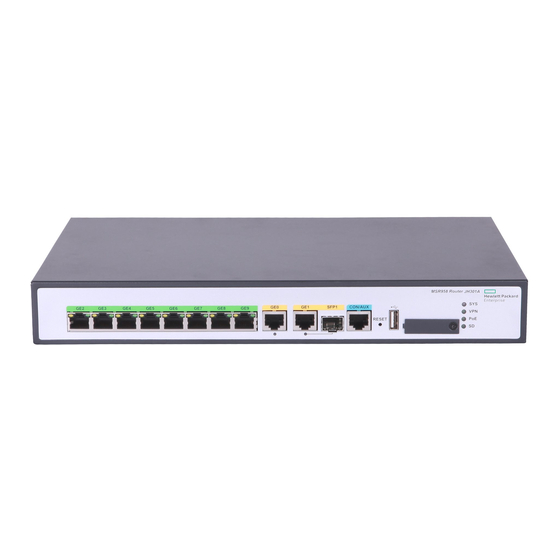

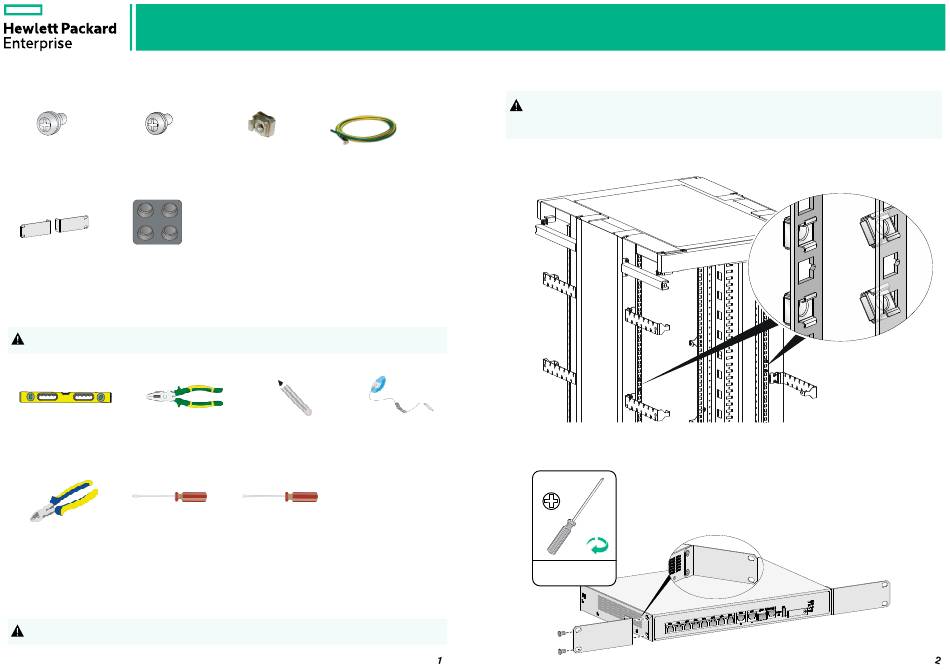

HPE FlexNetwork MSR958 Routers Quick Start-6W100
Installation accessories
M6 screw
M4 screw
Mounting
Rubber feet
brackets
Installation tools
The installation tools are not provided with the router. Prepare them yourself.
!
Ruler
Wire-stripping pliers
Diagonal pliers
Flathead screwdriver
Applicable products
HPE MSR958 Routers (JH300A/JH301A).
!
Grounding
Cage nut
cable
ESD wrist strap
Marker
Phillips screwdriver
Rack-mounting the router
The router is not provided with mounting brackets. Purchase a JH317A
!
Mounting brackets yourself.
Install cage nuts.
Attach the mounting brackets to the router.
M6
3.0±0.3 N.M
Part number:5200-1205
