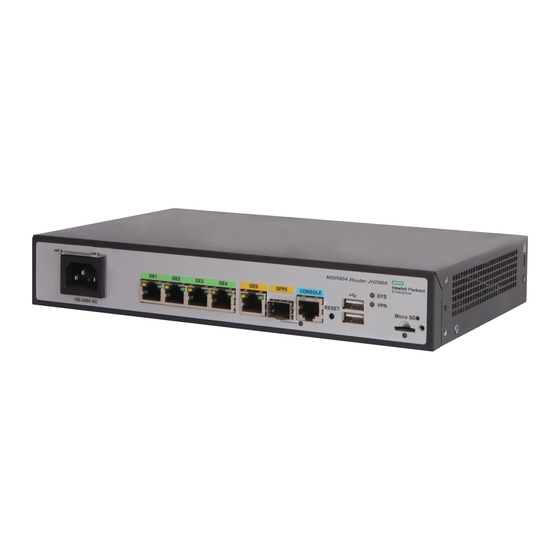

HPE FlexNetwork MSR954 Routers Quick Start-6W103
Introduction to installation accessories
4G antenna
WLAN antenna
M6 screw
M4 screw
(user supplied)
(user supplied)
Installation tools
!
The installation tools are not provided with the router. Prepare them yourself.
Wire-stripping pliers
Ruler
Diagonal pliers
Drill
Flathead screwdriver
Applicable products
HPE MSR954 Routers (JH296A/JH297A/JH298A/JH299A/JH373A).
!
Cage nut
Grounding cable
(user supplied)
Wall anchor kit
Mounting brackets
(user supplied)
Rubber hammer
ESD wrist strap
Marker
Phillips screwdriver

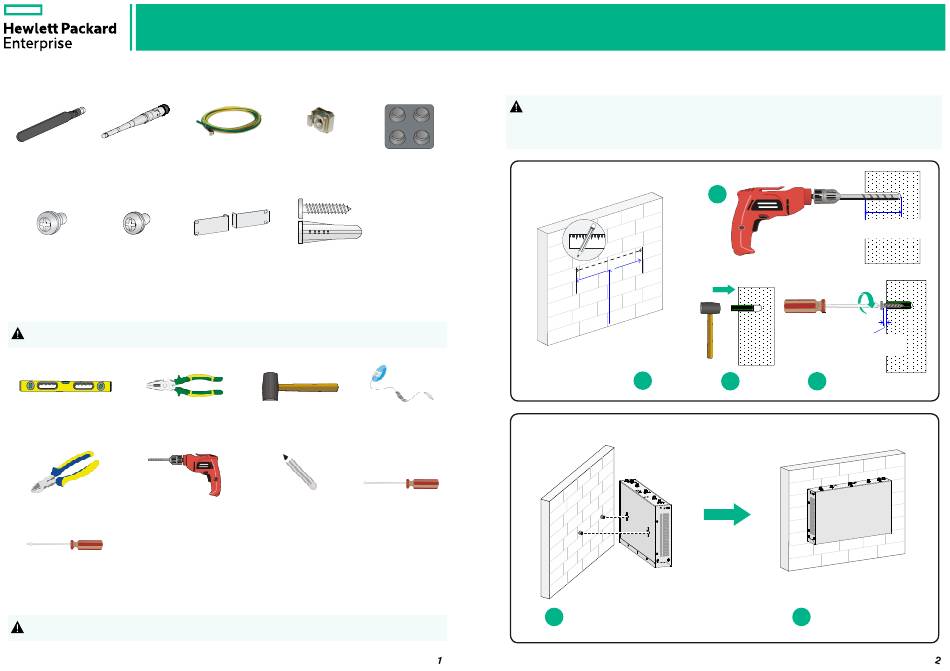

Wall-mounting the router
When you mount the router on a wall, make sure the Ethernet ports face
!
downwards and the two sides with ventilation holes are perpendicular to the
ground.
Rubber feet
160 mm (6.30 in)：JH296A/JH297A/JH298A/
JH299A
240mm(9.45in)：JH373A
5
2
1
3
4
6
Part number:5998-8749
≥ 22 mm (0.87 in)
≥ 1.5 mm
(0.06 in)
