PowerBass PS-DF110T Application Manual

Single subwoofer downfiring bass system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

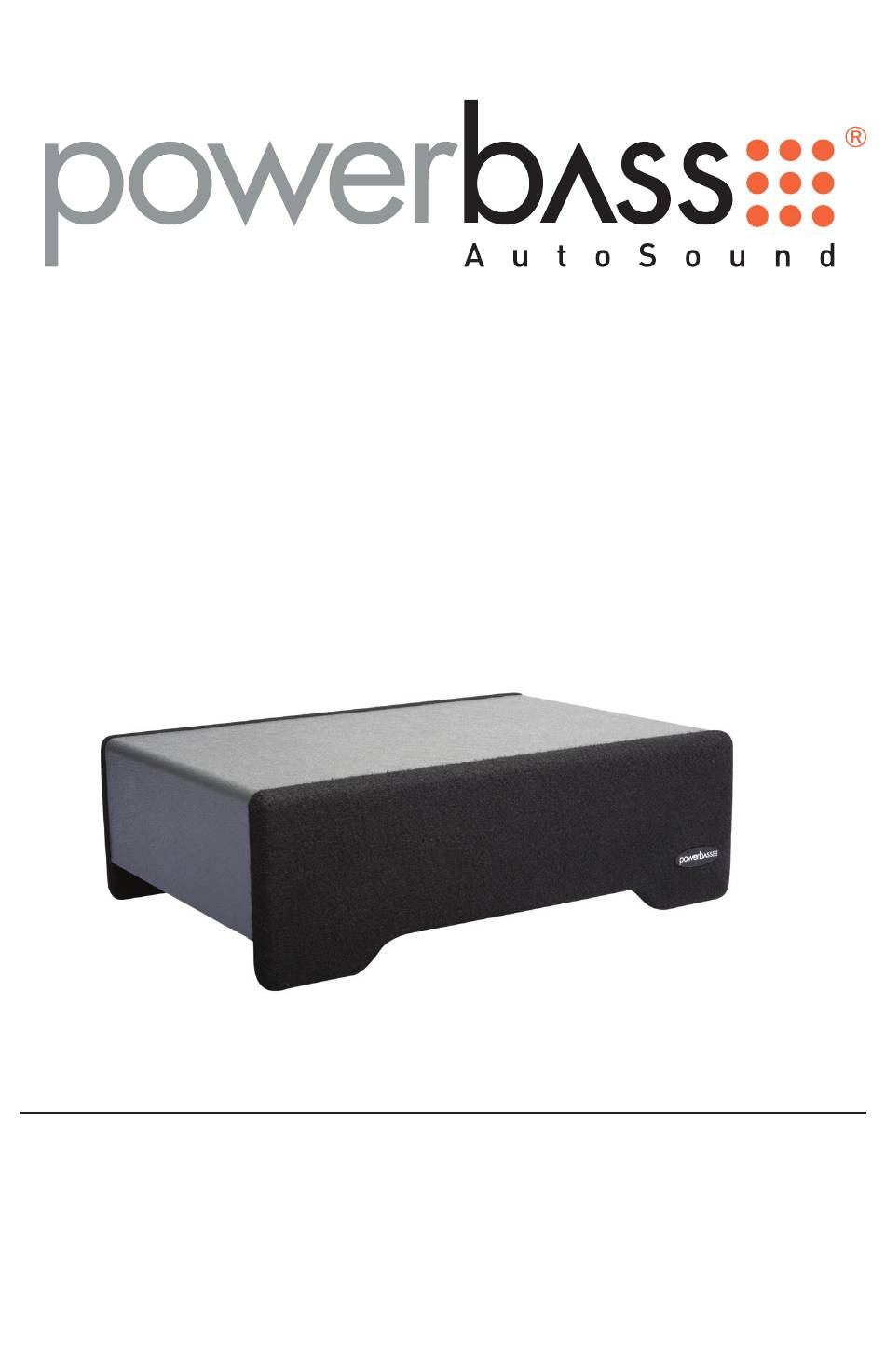

PS-DF110T
SINGLE SUBWOOFER DOWNFIRING BASS SYSTEM
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass
Autosound speakers ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-DF110T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass PS-DF110T

Summary of Contents for PowerBass PS-DF110T

  • Page 1 PS-DF110T SINGLE SUBWOOFER DOWNFIRING BASS SYSTEM Application Guide Please read through this manual to familiarize yourself with your new speakers. Should your PowerBass Autosound speakers ever require service, you will need to have the original dated receipt.
  • Page 3 170 dB. Please observe all local sound ordinances while listening to your PowerBass Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the...
  • Page 4 POWERBASS AUTOSOUND LOADED ENCLOSURE FEATURES Air Suspension Bass: Chosen because of its ability to reproduce good low frequency response in a small area, this small footprint sealed enclosure is constructed of 5/8 non-resonant material. One Piece Injection Molded Cone: This design ensures low distortion bass reproduction and voice coil alignment.
  • Page 5 Installation of PowerBass Autosound Speakers requires experience with a variety of mechanical and electrical procedures. This manual only provides general installation and operating instructions. If you have any reservations about your installation skills or lack the proper tools, please contact your local PowerBass Autosound dealer for assistance.
  • Page 6 • Check before drilling any mounting holes Your PowerBass Downfiring Subwoofer system needs to be installed some place where it can operate efficiently and not endanger the occupants of the vehicle. The location and orientation of your enclosure will affect the quality and quantity of the bass.

  • Page 7: Wiring And Connections

    WIRING AND CONNECTIONS The PowerBass Downfiring subwoofer system consists of a single 4-ohm voice coil woofer. Check to see that your amplifier is optimized to drive this load. A single spring loaded push terminal cup provides a quick and easy connection from your bass amplifier to your subwoofer system.

  • Page 8: Crossover Settings

    SOUND CHECK RECOMMENDED POWER The PS-DF110T is designed to handle up to 275 watts RMS (continuous) and 550 watts maximum (peak) of input power. Therefore an outboard amplifier optimized at 4-ohms will be necessary to drive this system. You will want to use an amplifier powerful enough to provide listening comfort. Generally speaking, an amplifier with the same or slightly higher power rating than the RMS power handling should be selected.

  • Page 9: Care And Cleaning

    Mounting Bracket Mounting Model Bracket PS-DF8T PS-DF110T 12.4”/315mm 17.8”/451mm 5.6”/143mm CARE AND CLEANING The enclosure is constructed of the same non-resonant material used for premium quality home audio speakers, but covered in a combination of vinyl and carpet instead of veneer. A damp cloth is best to wipe down any dirt on the vinyl surface.

  • Page 10: Warranty Notes

    PowerBass and the CEA want you listening for a lifetime! This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc. Copyright 2015 PowerBass USA, Inc.
  • Page 11 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 12 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
