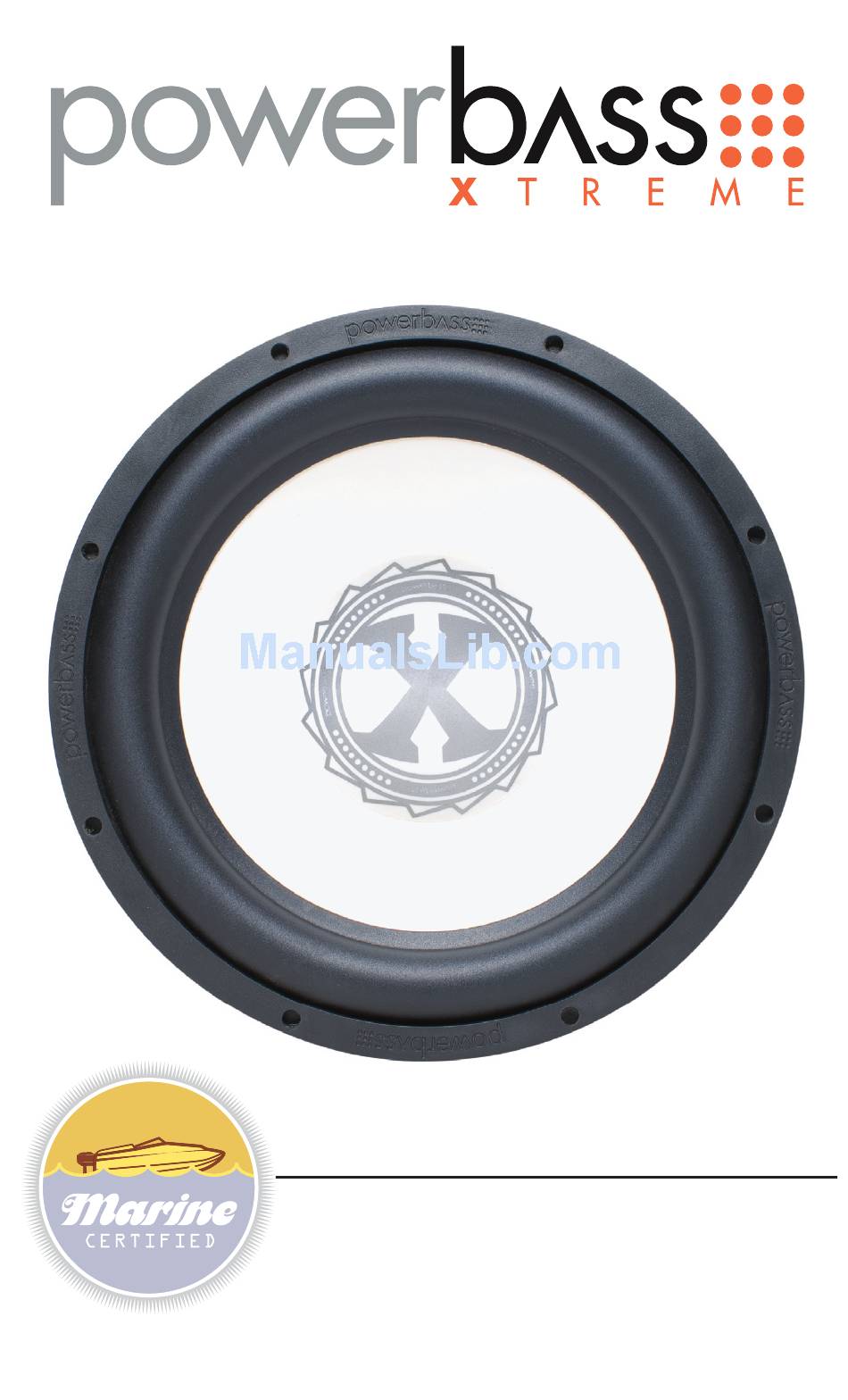

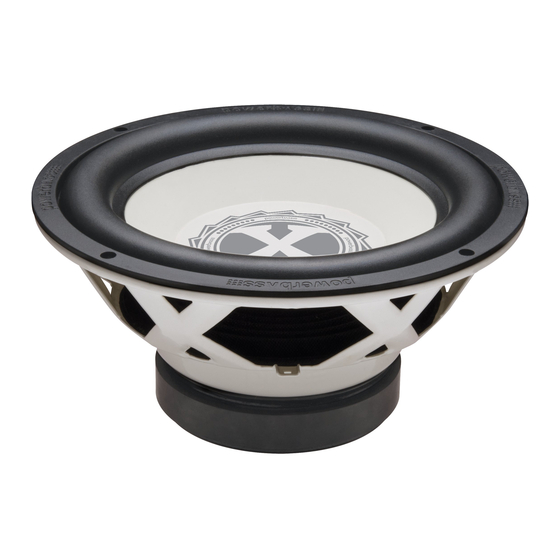

- Page 1 XL-104MF XL-124MF Marine Woofer Application Guide...
- Page 2 ∇ WARNING ∇ Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Xtreme Speakers are capable of producing sound pressure levels well over 160 dB. Please observe all local sound ordinances while listening to your PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing...
- Page 3 XL MARINE CERTIFIED WOOFER FEATURES FreeAir Design: Optimized for use in infinite baffle applications such as a boat hull or car trunk. Polypropylene Injected Cone: Chosen for its strong yet lightweight body this water- proof woofer cone has UV inhibitors to minimize cracking and fading. Powder Coated White Basket: This method of painting provides resistance to chip- ping, scratching and rust—while giving a uniform, durable high-quality finish.
-
Page 4: Wiring Guidelines
WIRING GUIDELINES It is highly recommended that you seek an authorized PowerBass dealer to properly setup, wire and install your marine woofer(s) for optimum performance. Your XL Marine Woofer is a 4-ohm Single Voice Coil subwoofer. There are multiple ways to wire your woofer(s) depending on your amplifier and system configuration. -
Page 5: General Installation Tips
Although this application guide explains how to install a PowerBass Xtreme marine woofer in a general sense, it may not show the exact installation method for your particular situation. If you feel unsure about personally in- stalling the speaker system, don’t attempt the installation yourself. -
Page 6: Preparing For Installation
(stainless steel) mounting hardware. INSTALLATION APPLICATION Your PowerBass XL marine coaxial woofer is specifically designed for boating and water sport applications. The XL Marine Woofer is capable of reproducing impressive levels of bass. Whether you choose a FreeAir or a sealed enclosure, the XL Marine Woofer opens up a whole new range of installation options for marine audio enthusiasts. - Page 7 FreeAir MOUNTING These specially designed PowerBass FreeAir woofers allow them to work effectively in infinite baffle applications. This does not mean, however, that the driver doesn’t require an enclosure. What it means is that the enclosure can be of very large volume, such as a boat hull or car trunk.
- Page 8 If a sealed enclosure is too large to fit into a specific area of a vessel, it is possible to decrease the recommended box volume by using 1.5 pounds per cubic feet of low density, high heat specific box stuffing material. PowerBass recommends Fiberglass, Dacron, Poly-Fill or long fiber wool for stuffing the enclosure. (Decreasing the box enclo- sure however should not exceed 20% of the recommended size.) When using any type...
- Page 9 BOX CONSTRUCTION (SEALED): Building an enclosure for marine applications requires special care. The material used for enclosure walls should be solid, dense and free of voids or warps. Your enclosure should be made ¾” or 19mm material, Marine Grade Plywood resists warping and rot in harsh water environments.
-
Page 10: Speaker Location
After connecting your new PowerBass XL marine speakers to the sound system you are ready to carry out a listening test. Please listen the first time at a low volume setting and check to make sure everything is operating properly. -
Page 11: Recommended Enclosures
1728. [W x H x D) / 1728]. Please contact your authorized PowerBass Autosound dealer for other designs and specifications. (Even though these subwoofers can be used in a vented enclosure, PowerBass recommends an infinite baffle chamber for optimum performance and sound quality.) - Page 12 Warranty is void if the product’s serial number has been removed or defaced. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc.
- Page 13 Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent) at PowerBass’s discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this product under the following situations: •...
- Page 14 Product Disposal Certain international, national and/or local laws and/or regulations may apply regarding the disposal of this product. For further detailed information, please con- tact the retailer where you purchased this product or the PowerBass Importer/Distributor in your country.
- Page 15 Page left intentionally blank...
- Page 16 Powerbass Xtreme (PBX) - A division of Powerbass USA, Inc. 2133 S. Green Privado - Ontario, CA 91761 Tel (909) 993-5399 Fax (909) 993-5393 Visit us on the web: www.powerbassusa.com...
