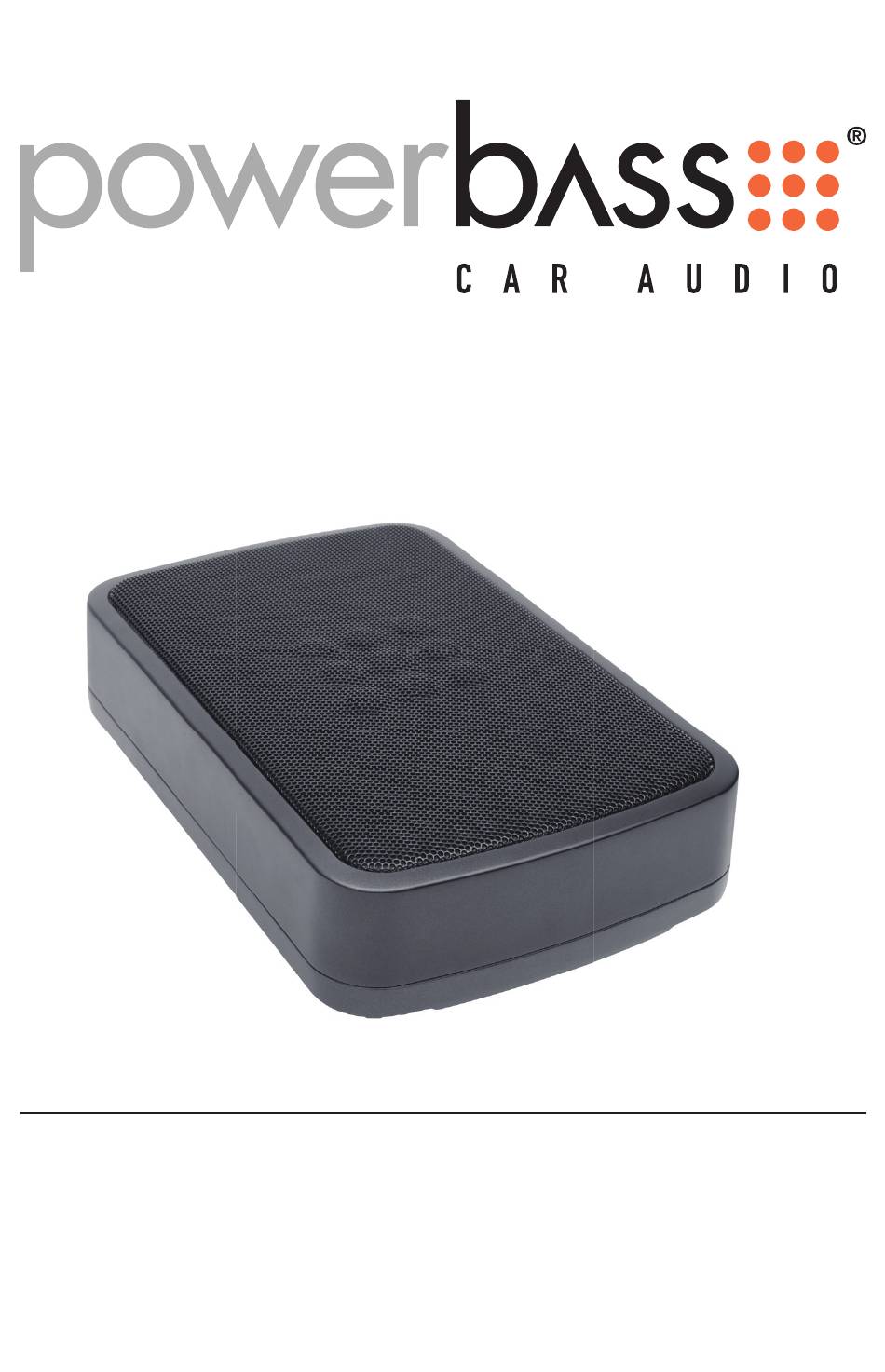

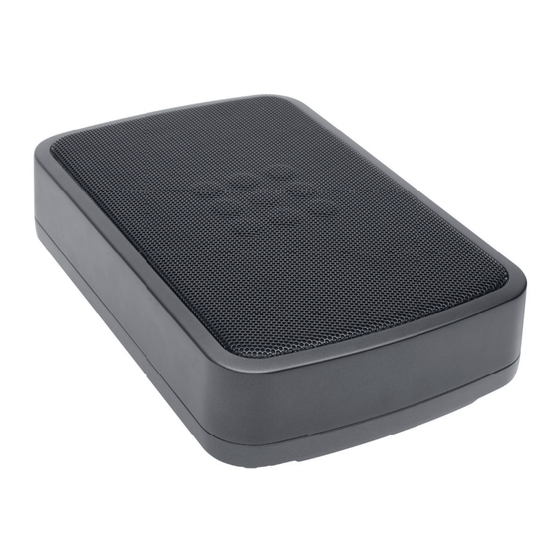

PB-US62
COMPACT AMPLIFIED SUBWOOFER
Owners Manual
Please read through this manual to familiarize yourself with your compact amplifi ed subwoofer. Should
your PowerBass speaker system ever require service, you will need to have the original dated receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-US62 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PowerBass PB-US62

Summary of Contents for PowerBass PB-US62

  • Page 1 PB-US62 COMPACT AMPLIFIED SUBWOOFER Owners Manual Please read through this manual to familiarize yourself with your compact amplifi ed subwoofer. Should your PowerBass speaker system ever require service, you will need to have the original dated receipt.
  • Page 3 At PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this great SPEAKER investment. For maximum performance we recommend that you have your new PowerBass Auto- sound product installed by an Authorized PowerBass Autosound Dealer.
  • Page 4 POWERBASS COMPACT AMPLIFIED SUBWOOFER BUILT-IN HIGH POWERED AMPLIFIER: Contains a high power Class D monaural amplifier complete with chassis mounted mounted adjustable Low Pass Filter and Bass Boost controls for sonic integration into most existing factory or aftermarket car stereo systems and engineered perfectly to power the subwoofer.
  • Page 5 Notify your local PowerBass dealer immediately should you notice any damage prior to installing the unit. Be sure to keep the carton and packing material until your system is operational. The original boxes will do the best job of protecting your speaker system if they need to be transported.
  • Page 6 Fig.1 Possible locations for installation...
  • Page 7 ENCLOSURE DIMENSIONS AND SPECIFICATIONS 2.75" (70mm) 8.0" 203mm) 12.0" (305mm) NOTE: The speaker system must be secured to protect the enclosure from moving. Before final mounting, be sure to check the sound one last time and make sure the enclosure is properly placed to produce the desired bass output.
  • Page 8 REM (Remote) The amplifier in your PB-US62 enclosure can be turned on by applying 12 volts to this lead. This can be on the rear of the source unit (radio) in the form of an output or remote output. If this is not available you can wire up to the ACC position on the ignition key switch.
  • Page 9 GND (Ground Input Connection) A good quality ground is required for the amplifier to operate a peak performance. This should be attached directly to the chassis of the vehicle. Make sure that all of the paint is sanded or scraped away to ensure a good quality ground connection.

  • Page 10: Power Connection

    POWER WIRING AND SIGNAL CONNECTIONS POWER CONNECTION BATT+ The amplifier should be wired directly to the vehicle battery If factory grommets are not available install grommets yourself to protect the cable from sharp metal edges. REM Run 18ga wire (not included) to the radio lead or remote output. This wire is responsible for turning the amplifier on and off.

  • Page 11: Input Signal

    (CHOOSING THE HIGH OR LOW INPUTS) The PB-US62 amplifer input signal connects to the head unit’s High Level (speaker wire) output OR Low Level (RCA) output—provided the radio is so equipped with Line Out. A dedicated subwoofer or low level signal will deliver the best performance.
  • Page 12 Fig.4 High Level Connections...
  • Page 13 Low Level Input and RCA Interconnect Wiring (fig 5) For radios that have RCA line outputs. You will need to connect the low-level RCA style inputs from the PB- US62 to the line-outputs from the radio (source) via an RCA interconnect commonly called a “stereo patch cord”.

  • Page 14: Set-Up Adjustments

    SET UP ADJUSTMENTS Your PB-US62 uses several controls to provide sonic integration with virtually any vehicles unique acoustic properties. Please read the following section carefully to familiarize yourself with the function of each control. The following adjustment sequence is recommended to properly tune your PB-US62.
  • Page 15 Fig.10 Remote Level Controller Remote Level Controller Your PowerBass STA enclosure includes a wired Remote Level Subwoofer control module. To connect the Remote Subwoofer Gain control to the amplified enclosure, simply insert a RJ45 ethernet jack into the REMOTE gain port. Mount the module within easy reach or under your dash. (Fig 10)

  • Page 16: Troubleshooting Tips

    PowerBass Importer/Distributor in your country. This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohibited without the express consent of PowerBass USA, Inc.
  • Page 17 Now it’s time to consider how you can maximize the fun and excitement your equipment offers. PowerBass and the Consumer Electronics Association (CEA) want you to get the most out of your equipment by playing at a safe level. One that lets the sound come through loud and clear without annoying, blaring or distortion- and, most importantly, without affecting your sensitive hearing.
  • Page 18 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
  • Page 20 PowerBass Autosound – A division of PowerBass USA, Inc. 2133 S. Green Privado – Ontario, CA 91761 Tel. (909) 923-3868 – Fax (909) 923-8048 www.powerbassusa.com...
