ZENNER ZSU Stealth Ultrasonic Meters
Product Description

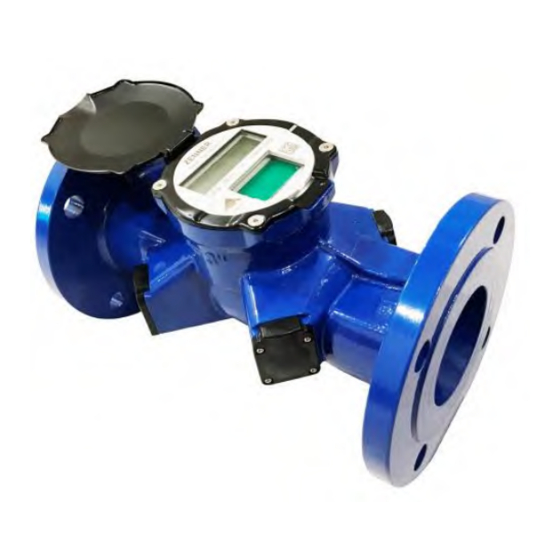

ZENNER ZSU Ultrasonic Bulk Water Meters are
designed for cold water applications up to 122°
F.
Intended purpose
For the consumption measurement of drink-
ing water up to 122°F.
For the consumption measurement of non-
potable water up to 122°F.
Comment
This installation manual is intended for qualified
meter installers only. Basic installation steps are
therefore not described. In order to ensure a
proper flow measurement, the meter must be
completely filled with water at all times.
ZENNER USA
15280 Addison Rd #240, Addison, TX 75001
Phone (972) 386-6611, Fax (972) 386-1814
www.zennerusa.com
Installation Manual

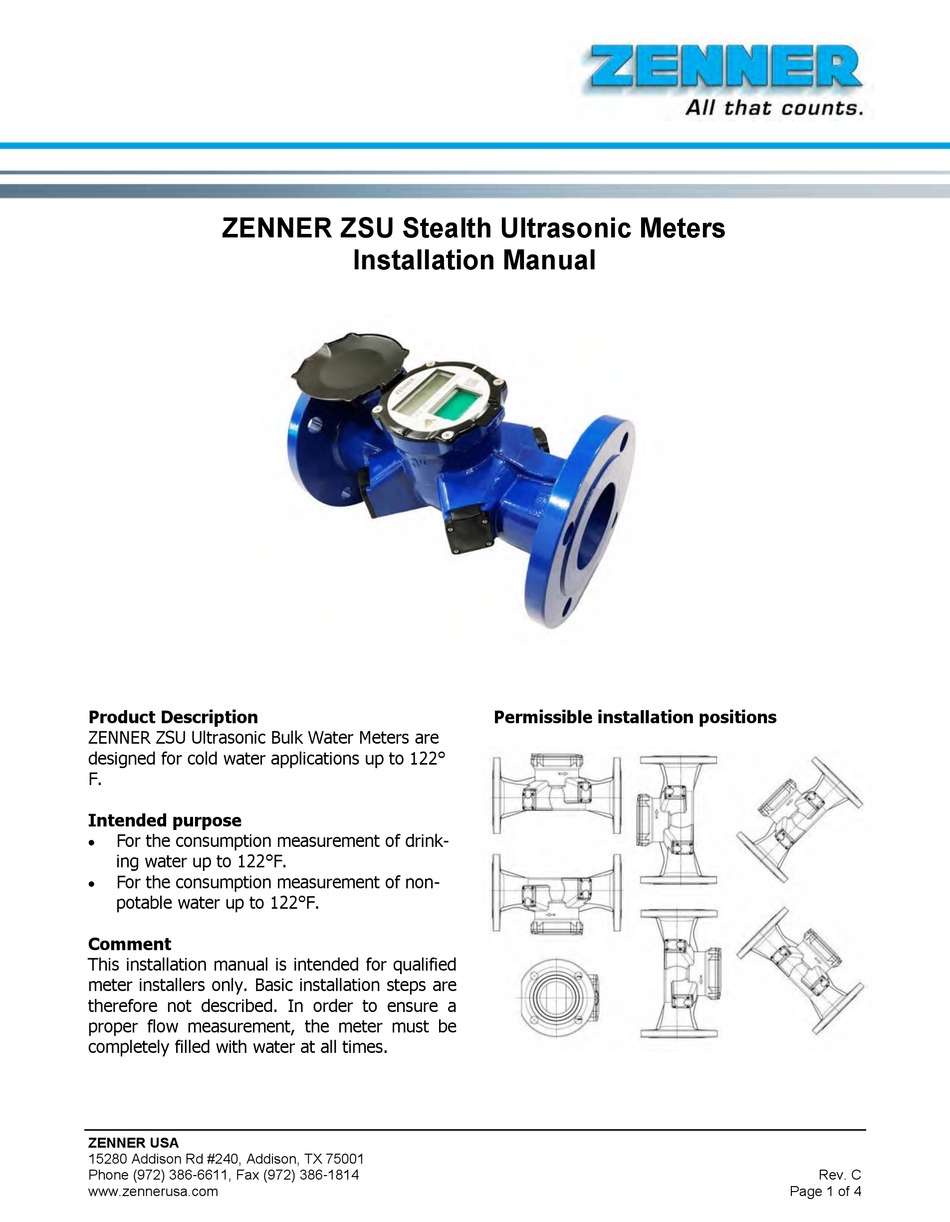

Permissible installation positions
Rev. C
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Zenner ZSU02
Summary of Contents for Zenner ZSU02
- Page 1 ZENNER ZSU Stealth Ultrasonic Meters Installation Manual Product Description Permissible installation positions ZENNER ZSU Ultrasonic Bulk Water Meters are designed for cold water applications up to 122° Intended purpose For the consumption measurement of drink- ing water up to 122°F.
-
Page 2: Activating The Meter
+122°F . To prevent damage during the installation process, ensure that the meter is slowly filled with water. ZENNER USA 15280 Addison Rd #240, Addison, TX 75001 Phone (972) 386-6611, Fax (972) 386-1814 Rev. C www.zennerusa.com... -
Page 3: Display Description
Data transfer display: Symbol is only date and length of exceedance. activated for the connected NDC module ZENNER USA 15280 Addison Rd #240, Addison, TX 75001 Phone (972) 386-6611, Fax (972) 386-1814 Rev. C www.zennerusa.com... - Page 4 MODEL ZSU02 ZSU03 ZSU04 ZSU06 ZSU08 ZSU10 ZSU12 Nominal diameter Inches 2" 3" 4" 6" 8" 10" 12" Overall length Inches 17 3/4 19 11/16 Height Inches 5 5/8 7 1/2 8 3/4 10 5/8 12 5/8 15 3/16 18 1/8...
- Page 5 READING ZENNER ULTRASONIC METER LCD DISPLAYS CUBIC FEET REGISTRATION ZENNER Ultrasonic Meter Reading Example for Maximum LCD Display LCD Display Shown at Left Registration 5/8" to 1" ZSUR Residential 1 2 3 4 5 6 .7 8 9 123,456.789 Cubic Feet 999,999.999 Cubic Feet...
- Page 6 READING ZENNER ULTRASONIC METER LCD DISPLAYS CUBIC METER REGISTRATION ZENNER Ultrasonic Meter Reading Example for Maximum LCD Display LCD Display Shown at Left Registration 5/8" to 1" ZSUR Residential 1 2 3 4 5 .6 7 8 9 12,345.6789 Cubic Meters 99,999.9999 Cubic Meters...
- Page 7 READING ZENNER ULTRASONIC METER LCD DISPLAYS U.S. GALLON REGISTRATION ZENNER Ultrasonic Meter Reading Example for Maximum LCD Display LCD Display Shown at Left Registration 5/8" to 1" ZSUR Residential 1 2 3 4 5 6 7 .8 9 1,234,567.89 US Gallons 9,999,999.99 US Gallons...
