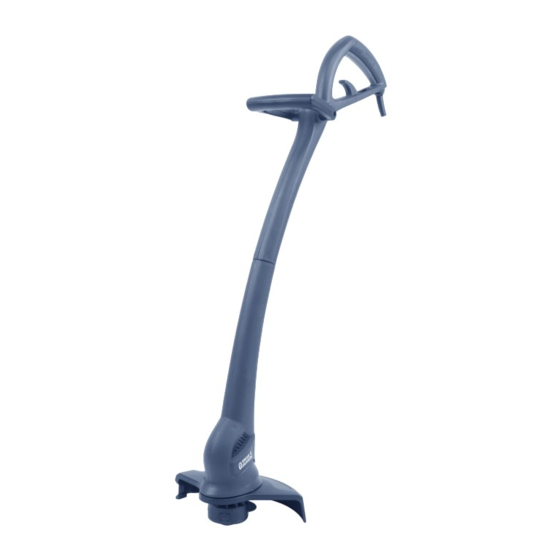

GRASS TRIMMER
350W
GT350
Important
- Please read these instructions fully before operating or maintaining your grass trimmer
These instructions contain important information that will help you get the best
from your grass trimmer, protecting your power tool investment.
INSTRUCTION
MANUAL
AFTERSALES SERVICE
01904 727505
MON-FRI 9am-5pm SAT/SUN 11am-4pm
www.spearandjackson-power.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spear & Jackson GT350
Summary of Contents for Spear & Jackson GT350
- Page 1 GRASS TRIMMER AFTERSALES SERVICE 01904 727505 350W MON-FRI 9am-5pm SAT/SUN 11am-4pm GT350 www.spearandjackson-power.com Important - Please read these instructions fully before operating or maintaining your grass trimmer These instructions contain important information that will help you get the best from your grass trimmer, protecting your power tool investment.
- Page 2 THANK YOU! Dear Customer, Thank you for choosing a Spear and Jackson grass trimmer. Spear and Jackson was founded in 1760 in the city of Sheffield, which is world famous for the production of steel, cutlery and garden and hand tools. Through continuous innovation and the use of new technologies and materials, Spear and Jackson has gained an enviable reputation as a supplier of reliable, high performance and high quality products designed to make your work in the...
-
Page 3: Table Of Contents
CONTENTS Safety Information Description of symbols General safety Safety warnings Personal safety Operational safety Maintenance and storage safety Intended use Box Content / Parts Assembly Safety guard assembly Front handle assemble Plant protector assemble Connect to main supply Operation General operation Bump line feeding Switching on/off Trimming... -
Page 4: Safety Information
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine DESCRIPTION OF SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the grass trimmer. IMPORTANT! Warning! Cutting device continues to rotate after the motor... -
Page 5: General Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine GENERAL SAFETY ELECTRICAL SAFETY IMPORTANT! Power tool plugs must match the outlet. ■ Keep this instruction manual in a safe Never modify the plug in any way. Do ■... -
Page 6: Personal Safety Y
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine you are tired or under the influence of Disconnect the plug from the power source ■ drugs, alcohol or medication. A moment of and/or the battery pack from the power tool inattention while operating power tools may before making any adjustments, changing result in serious personal injury. -
Page 7: Operational Safety
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine OPERATIONAL SAFETY Use the product only in daylight or good The product should be supplied via a ■ ■ artificial light. residual current device (RCD) with a tripping current of not more than 30 mA. -
Page 8: Intended Use
SAFETY INFORMATION Please read these instructions fully before operating or maintaining your machine supply or the battery pack) and check for damage after use. Disconnect the product from the power ■ supply (i.e. remove the plug from the power supply or the battery pack) before carrying out maintenance or cleaning work. - Page 9 BOX CONTENT PARTS Pigtail 0.35m cable Main handle On/off Switch Cable retainer Front handle Guard Screw x3 Cutting head If there are any parts missing, please call the customer helpline on 01904 727505 www.spearandjackson-power.com AFTER SALES SUPPORT 01904 727505...
-
Page 10: Assembly
ASSEMBLY Safety guard assembly i. Align the guard (6) to the trimmer head and place it over it. ii. Secure the guard with the screws. Front handle assembly i. Loosen the knob and remove it together with the bolt from the auxiliary handle. ii. -
Page 11: Connect To Main Supply
ASSEMBLY Connect to main supply i. Make sure the on/off switch is in its off position. ii. Connect the short cord (pigtail nr 1) to the extension cord delivered as part of the twin pack. iii. Double the extension cord, about 3cm from the end. Lead the loop through the hole on the rear safe guard and hook the loop over the cord strain relief. -
Page 12: Operation
OPERATION General operation i. Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. ii. Double check that accessories or cutting device are properly fixed. -
Page 13: Switching On/Off
OPERATION Switching on/off i. Press the on/off switch (3) to turn the product on. ii. Release the on/off switch (3) to turn the product off. Trimming i. Ensure the knife protector label is removed before use. Ensure you wear gloves when removing this label. ii. -
Page 14: Tips
OPERATION Tips i. For best results, do not cut wet grass because it tends to stick to the cutting head and guard, prevents proper discharge of grass trimmings, and could cause you to slip and fall. ii. Do not allow the spool cover to drag on the ground or other surfaces. -
Page 15: Maintenance
MAINTENANCE This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Replacing the spool NOTE: Before replace the spool, make sure the mains plug is disconnected from the unit. -
Page 16: Uk Plug
MAINTENANCE i. Hold the loose ends of the line together with one hand, find the center of the line with the other hand and hook this center loop into the groove on the spool. ii. Wind the line following the directional arrows on the spool housing and hook the two ends into the side grooves. -
Page 17: Storage
MAINTENANCE Storage i. Store the product and its accessories in a dry, frost-free place. ii. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. Transportation i. Switch the product off and disconnect from power supply before transporting it anywhere. -
Page 18: Technical Data
TECHNICAL DATA Model GT350 Input voltage rating 240V , 50Hz Input power 350W No load speed 9000min Trimming line Ø 1.2 mm, length 8m Cutting capacity 250mm Weight 1.58kg Dimensions 92x50x27cm Part number Accessories GT015-21 Front handle GB/T818-2000 Front handle bolt... -
Page 19: Troubleshooting
TROUBLESHOOTING Product does not start • Not connected to power supply • Power cord or plug is defective • Other electrical defect to the product • If any of the parts are defective, such as On/Off switch / motor etc. Please contact after sales support at 01904 727505. -
Page 20: Warranty
WARRANTY If your device develops a fault, please don’t hesitate to contact our customer service department on 01904 727505, we can solve 80% of problems via the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights. -
Page 21: Ec Declaration Of Conformity
Unit A&B Escrick Business Park Escrick,York YO19 6FD Declare that the product Electric grass trimmer Factory No: N1F-GT-250/350-C Model No: GT350 Function: Cut and trim grass Serial number : xxxxx Complies with the following directives: EMC Directive: 2014/30/EU Machinery Directive: 2006/42/EC...
