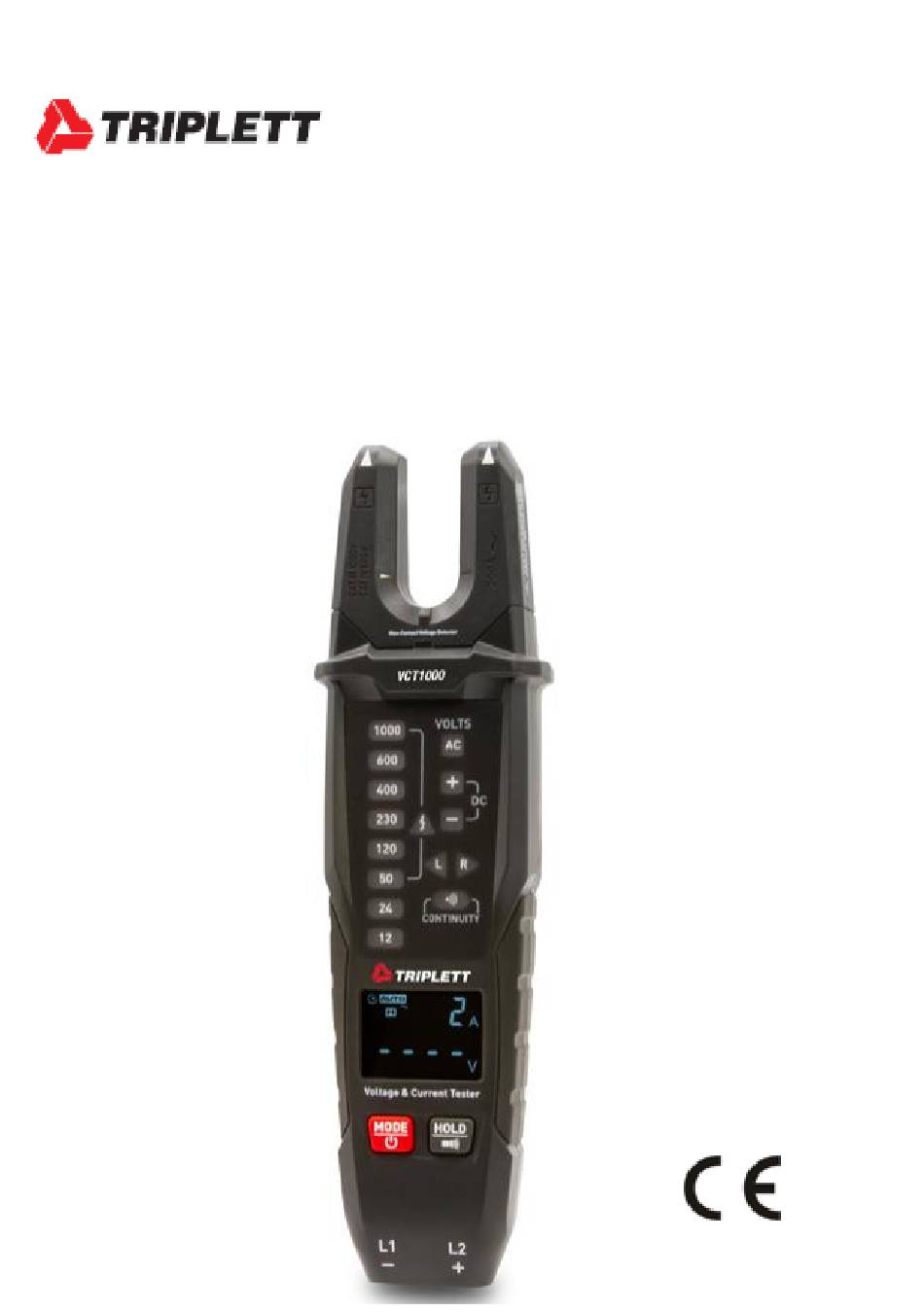

- Page 1 User Manual VCT1000 Voltage and Current Tester with Phase Rotation Indication and Non-Contact AC Voltage Detection...
- Page 2 Introduction Congratulations on your purchase of the Triplett VCT1000 Voltage and Current Tester with Phase Rotation Indication and Non-Contact AC Voltage Detection. This meter is feature packed and includes: • 2000 count EBTN (Enhanced Black Twisted Nematic) display for easy viewing in any lighting condition •...
- Page 3 or damaged batteries can cause cauterization on contact with the skin; use suitable hand gloves in such cases. Ensure that the batteries are not short-circuited. Do not throw batteries into the fire. WARNINGS • Read understand and follow safety rules and operating instructions in the manual before using this tester.

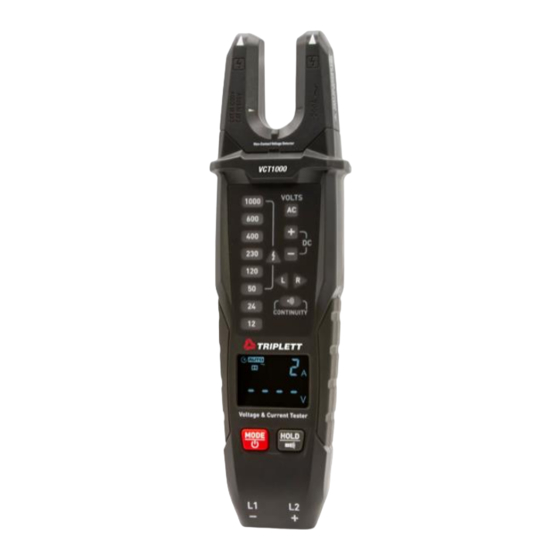

- Page 4 Meter Description Non-Contact Voltage (NCV) Detector Sensor Open Jaw Clamp Non-Contact Voltage (NCV) Indication LED LED Indicators for Voltage Display LED Indicator for AC Voltage LED Indicator for Positive (+) DC Voltage LED Indicator for Negative (-) DC Voltage LED Indicator for Warning Voltage LED Indicator for Right Rotation Direction 10.
- Page 5 LCD Description Auto Power OFF (APO) ON Indicator Auto Range Mode Alternating Current (AC A Symbol) Negative Sign (-) Direct Current (DC A Symbol) Measurement Display (Current, % and Frequency) Percent Symbol (Duty Cycle) Hz Symbol (Frequency) Amperes (Amps) Symbol 10.
-
Page 6: Test Preparation
16. Alternating Voltage Symbol (AC V) 17. Right Phase Indicating Symbol (R) 18. Live Voltage Present Symbol (30V) 19. Left Phase Indicating Symbol (L) 20. Low Battery Indicator 21. DATA HOLD Symbol Operation Test Preparation **NOTE: Prior to every test, please ensure that the instrument is in perfect condition: •... - Page 7 AC Current Measurements • Put a single conductor/wire in between the opening of the open jaw clamp and the LCD will display the current measurement value. • Place the wire in the correct position of the open jaw current clamp otherwise the measurement will be inaccurate. •...
- Page 8 Voltage Measurements Connect both test probes with power source. The voltage is displayed via LEDs below the measured voltage value will light up, the different indicating signals of the voltage detector (including the ELV limit indication) are not to be used for measuring purposes, the voltage is also shown on the LCD display.
- Page 9 Phase Sequence, Rotation (Rotary Field) Measurements **NOTE: Effective for voltages greater than 80Vrms. • The voltage testers are equipped with a double- pole rotary field indicator. • The rotary phase indication is always active, the symbols “R” or “L” are always displayed, however the rotary direction can only be determined within a thee-phase system, here the instrument indicates the voltage between two external...
- Page 10 Resistance Test • The Tester measures low ohm resistances between 1Ω and 1999Ω at a resolution of 1Ω. • Note for Resistance test to make sure the UUT (Unit under test) is not live. Continuity Test • Note for Continuity test to make sure the UUT (Unit under test) is not live.
- Page 11 Cleaning Prior to cleaning, remove voltage test from all measurement circuits. If the instruments are dirty after daily usage, it is advisable to clean them by using a damp cloth and a mild household detergent. Never use acid detergents or dissolvents for cleaning. After cleaning, do not use the voltage tester for a period of approx.
- Page 12 Specifications VCT1000 Display EBTN (2000 count) AC/DC Voltage Range 6 to 1000V Accuracy ±3% Resolution 12, 24, 50, 120, 230, LED Voltage Indicators 400, 690, 1000V AC/DC AC Bandwidth 40 to 400Hz AC Current 200A ACA Accuracy ±3.5% AC Bandwidth...
- Page 13 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This...
