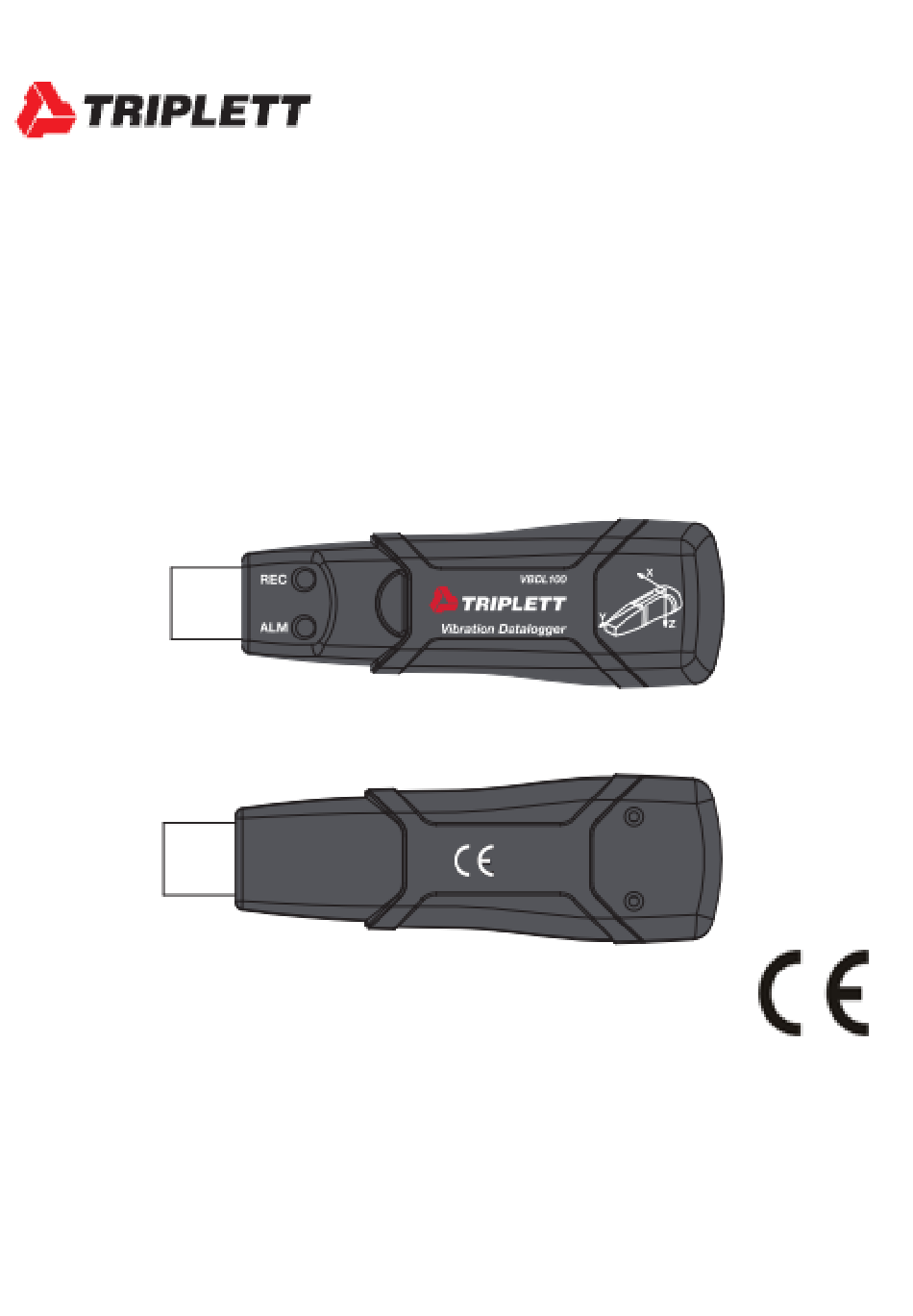

- Page 1 User Manual VBDL100 Vibration Datalogger...
- Page 2 The user can easily configure the logging rate, high/low alarm and start‐ mode, and download the stored data by plugging the VBDL100 into a PC's USB port and running the supplied PC software. Measurement data can be plotted, printed and exported for use with other applications such as word processors and spreadsheets.
- Page 3 Mounting the VBDL100 The VBDL100 fits securely in the supplied mounting pedestal. Unscrew the pedestal latch and snap the VBDL100 into the pedestal. Secure the latch and follow one of the mounting methods below. There are three mounting methods for affixing the pedestal to the area under test:...
-
Page 4: Led Status Indication
LED Status Indication *To save power, the VBDL100’s LED flashing cycle can be changed via the supplied software. **To save power, alarm LEDs for temperature can be disabled via the supplied software. NOTE: When the battery is low, all operations will be disabled automatically. - Page 5 ROM drive, then find and double‐click on the SETUP.EXE file included on the program disk. Follow the on‐screen prompts as shown below to complete the installation. Before running the datalogger software, please connect the VBDL100 to the PC and install the USB Driver software as described in the next section.
-
Page 6: Installing The Usb Driver
Simply click INSTALL to continue. To install the driver manually, plug the VBDL100 into an available USB port on the PC. If this is the first time that the VBDL100 is connected to the particular port on the PC, the following screen will appear: Make sure the program disk is still in the PC CD‐ROM drive. - Page 7 RUNNING THE DATALOGGER SOFTWARE With the VBDL100 inserted in the PC’s USB port, double‐click the program icon (located on the desktop) to launch the program. The main software screen will appear. Instructions for using the Datalogger Software are contained in the HELP Utility available from the HELP menu in the software program.
-
Page 8: Battery Replacement
Battery Replacement The VBDL100 does not lose its stored readings when the battery expires or when the battery is replaced. The data logging process will however be stopped and cannot be re‐started until the battery has been replaced and the logged data has been downloaded to PC. -
Page 9: Specifications
Specifications Acceleration Range: ± 18g Resolution: 0.00625g Accuracy ± 0.5g Frequency Range 0 to 60Hz 4MB Flash stores 168042 Normal recording records Datalog Memory 112028 Motion Detection records per axis. Selectable sampling interval: From 50ms up to 24 Logging rate hours Time stamped peak acceleration and freefall;... - Page 10 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
