Multitech RouteFinder RF600VPN Reference Manual page 6

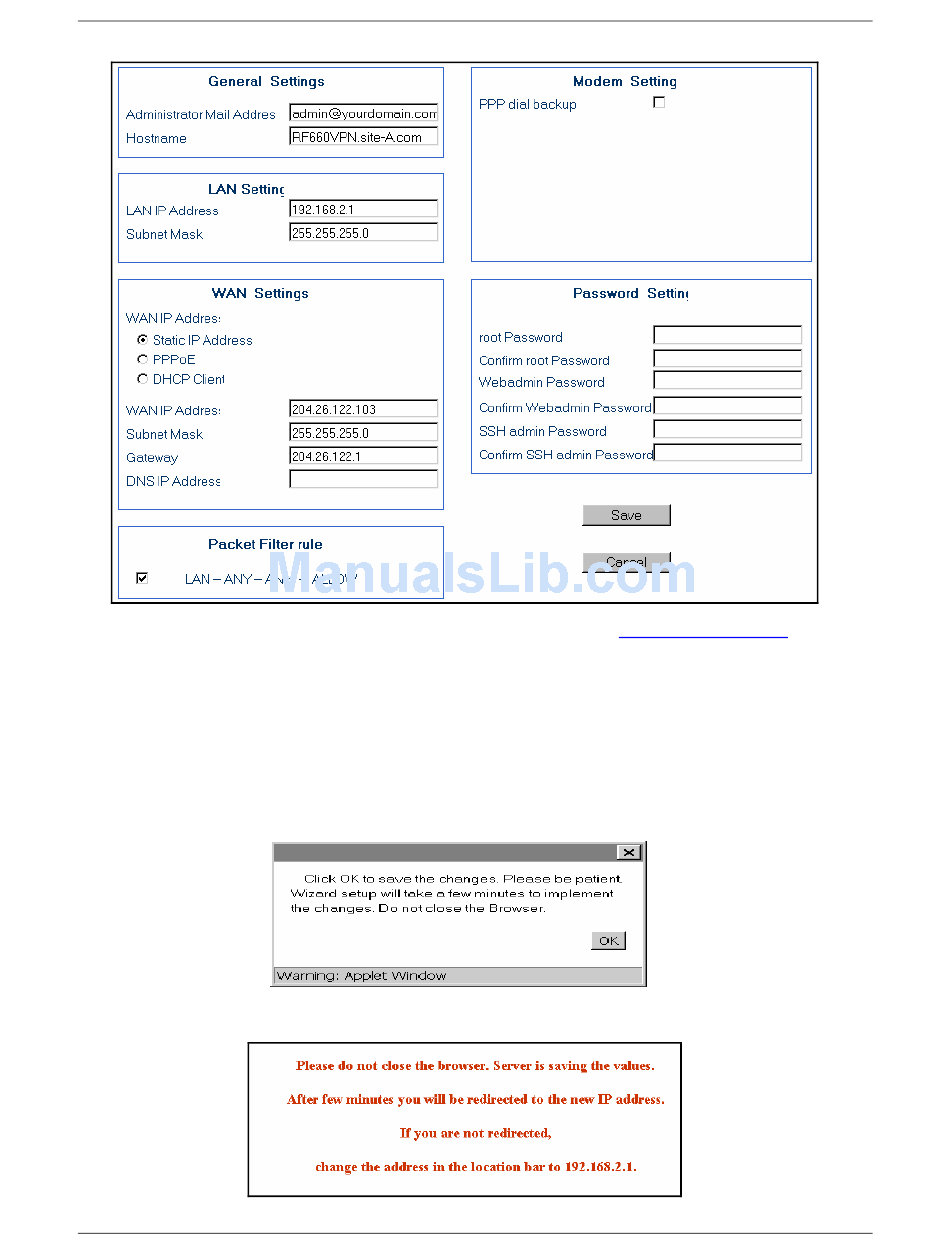

8. Click on Wizard Setup.
a) Enter the Administrator Email Address (can be anything). (Example: admin@yourdomain.com)
b) Enter the Host name for the RouteFinder (can be anything). (Example: RF660VPN.site-A.com)
c) LAN IP Address and Subnet Mask are set to the defaults. This should be acceptable for Site A.
d) Enter the WAN IP Address. This is the PUBLIC STATIC IP address. (Example: 204.26.122.103)
e) Change the Gateway IP address; this is the IP address of the router that connects to the Internet. (Example:
204.26.122.1)
f) Place a checkmark in the box for the Packet Filter Rule: LAN-ANY-ANY-ALLOW. This will enable this rule.
g) Specify any changes to the passwords that you feel are necessary.
h) Click Save to save the settings you just entered.
i) The following screen will display to save changes. Click OK.
j. The following screen will display. Saving your settings will take a few minutes. Since you kept the LAN IP
address the same, it is not necessary to change this system to a new IP address.
Multi-Tech Systems, Inc. RF760/660/600VPN DNAT and Aliasing Reference Guide (S000285C)
Remote Client-to-LAN Configuration Using DNAT and Aliasing
6
