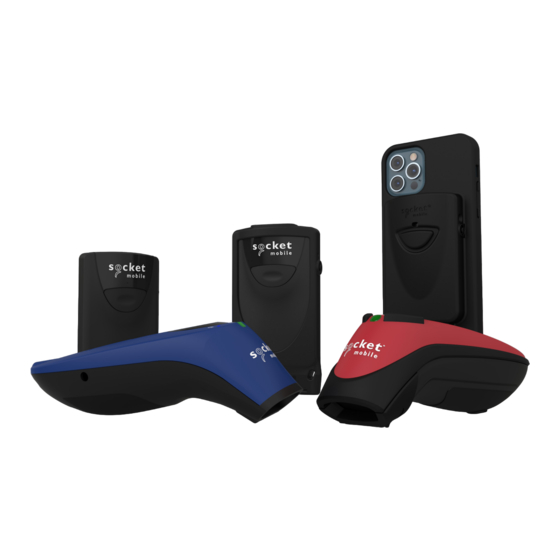

PROGRAMMING GUIDE
LINEAR BARCODE PLUS QR CODE - D720, D820, DS820, S720 AND S820
Model: D720
Model: S720
Model: S820
Model: DS820
Model: D820

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D720 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Socket D720

Summary of Contents for Socket D720

  • Page 1 PROGRAMMING GUIDE LINEAR BARCODE PLUS QR CODE - D720, D820, DS820, S720 AND S820 Model: D720 Model: S720 Model: S820 Model: DS820 Model: D820...

  • Page 2: Table Of Contents

    Table of Contents Companion App Resets Bluetooth Connection Mode Prefix/Suffix Vibrate/Beep Modes Active Modes Presentation Modes HID Keyboard Language Settings HID Keyboard Language Settings Automatic Reconnection Bluetooth Connection Roles Data Mode-For SPP Mode Only Programming 1D Symbologies Codabar Code 32 Code 39 19-20 Code 93...

  • Page 3: Companion App

    Companion App Download the Socket Mobile Companion app to set-up your barcode scanner. Available for Scan QR Code with your device to visit the Companion app download page, or go to socketmobile.com/support/companion...

  • Page 4: Resets

    Resets Make sure the scanner is not connected to a host computer or device before scanning a command barcode. Factory Reset Configures the scanner to factory defaults. The scanner powers off after scanning this barcode. Pairing Reset If the scanner is paired with a device, unpair it before trying to connect to a different device. Step 1: Scan barcode (for serial number that begins 1931 and above only).

  • Page 5: Bluetooth Connection Mode

    Scan command barcode(s) to configure the scanner. iOS Application Mode for Apple Devices (default) *Required for Apple iOS applications developed with Socket Mobile SDK. Application Mode (Auto Connect-SPP) for Windows or Android 8.0 and later *Configures the scanner to Serial Port Profile.

  • Page 6: Prefix/Suffix

    Prefix/Suffix You can configure the scanner to automatically add a prefix and/or suffix to each scan of data. Scanner is allowed 1 prefix and 2 suffixes. For custom prefix and suffix, contact support@socketmobile.com. Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command.

  • Page 7: Vibrate/Beep Modes

    Vibrate/Beep Modes Make sure the scanner is not connected to a host computer or device before scanning a command barcode. Vibrate “On” (default) Enable the scanner to vibrate to indicate a successful scan. Vibrate “Off” Disable the scanner from vibrating to indicate a successful scan. Beep “On”...

  • Page 8: Active Modes

    Active Modes Scan one of the barcodes to reconfigure the scanner to remain powered on for a longer time. These settings drain the battery faster. Please ensure the scanner is charged daily. 2 hours (default) Scanner powers off in 2 hours when idle/inactive while connected and 5 minutes when disconnected.

  • Page 9: Presentation Modes

    For model D720 and S720 only. These settings drain the battery faster. Please ensure the scanner is charged daily. Mobile Mode (default) Reverts back to manual scan mode. For model D720 and S720 only. #FNB 41FBA50000# Auto Mode (recommended) Configures the scanner to switch to presentation mode when power is detected on the charging pins.

  • Page 10: Hid Keyboard Language Settings

    HID Keyboard Language Settings Scan only when the scanner is in Basic Mode (HID profile). These barcodes are to configure the scanner for different languages using Microsoft Windows keyboard layout. English (Default) English UK French German Italian...

  • Page 11: Hid Keyboard Language Settings

    HID Keyboard Language Settings Japanese Polish Spanish Swedish ANSI Emulation ANSI Emulation can be slower on Windows systems.

  • Page 12: Automatic Reconnection

    Automatic Reconnection All Bluetooth Connection Modes are OK. Important! After scanning this command barcode, power off and power on the scanner to make sure it is configured properly. Enable Automatic Reconnection from scanner (default) Configure the scanner to automatically initiate a connection to the last paired computer/device after the scanner is powered on.

  • Page 13: Bluetooth Connection Roles

    Bluetooth Connection Roles Advanced users only. Basic Mode (HID) Keyboard Changes a scanner in HID-Peripheral mode to HID-Keyboard mode. For Mac OS, Apple iOS, and other smart devices. Basic Mode (HID) Peripheral Changes a scanner in HID-Keyboard mode to HID-Peripheral mode. For some MS Windows or Android mobile devices.

  • Page 14: Data Mode-For Spp Mode Only

    Data Mode-For SPP Mode Only Advanced users only. Packet Mode (default) Configures the scanner to transmit decoded data in packet format. Raw Mode - Android and Windows only Configures the scanner to transmit decoded data in raw (unpacketed) format.

  • Page 15: Programming

    Programming What is a 1D barcode? Linear, 1 dimensional barcodes are a row of parallel lines of varying thickness. The information is stored in the widths of the bars and spaces. 1D barcodes are used in retail products. What is a 2D barcode? 2D barcodes are a pattern of black and white blocks arranged in a square or rectangles.

  • Page 16: 1D Symbologies

    1D Symbologies...

  • Page 17: Codabar

    Codabar To enable or disable Codabar, scan the appropriate barcode below. Enable Codabar Disable Codabar (default) Set Lengths for Codabar The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Codabar may be set for any length, one or two discrete lengths, or lengths within a specific range.
  • Page 18 Code 32 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate barcode below to enable or disable converting Code 39 to Code 32. Note: Code 39 must be enabled in order for this parameter to function. Enable Convert Code 39 to Code 32 Disable Convert Code 39 to Code 32 (default) Enable this parameter to add the prefix character “A”...
  • Page 19 Code 39 To enable or disable Code 39, scan the appropriate barcode below. Enable Code 39 (default) Disable Code 39 Code 39 Full ASCII is a variant of Code 39 which pairs characters to encode the full ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate barcode below. Enable Code 39 Full ASCII Disable Code 39 Full ASCII (default)

  • Page 20: Code 39

    Code 39 Set Lengths for Code 39 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Code 39 may be set for any length, one or two discrete lengths, or lengths within a specific range.
  • Page 21 Code 93 To enable or disable Code 93, scan the appropriate barcode below. Enable Code 93 Disable Code 93 (default) Set Lengths for Code 93 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.

  • Page 22: Code 128

    Code 128 To enable or disable Code 128, scan the appropriate barcode below. Enable Code 128 (default) Disable Code 128 EAN-8 To enable or disable EAN-8, scan the appropriate barcode below. Enable EAN-8 (default) Disable EAN-8...
  • Page 23 EAN-13 To enable or disable EAN-13, scan the appropriate barcode below. Enable EAN-13 (default) Disable EAN-13...

  • Page 24: Gs1 Databar Limited

    GS1 DataBar Limited To enable or disable GS1 DataBar Limited, scan the appropriate barcode below. Enable GS1 DataBar Limited Disable GS1 DataBar Limited (default)

  • Page 25: Interleaved 2 Of

    Interleaved 2 of 5 To enable or disable Interleaved 2 of 5, scan the appropriate barcode below. Enable Interleaved 2 of 5 (default) Disable Interleaved 2 of 5 Set Lengths for Interleaved 2 of 5 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.

  • Page 26: Msi

    To enable or disable MSI, scan the appropriate barcode below. Enable MSI Disable MSI (default) Set Lengths for MSI The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits. Lengths for MSI can be set for any length, one or two discrete lengths, or lengths within a specific range.
  • Page 27 MSI Check Digits These check digits at the end of the bar code verify the integrity of the data. At least one check digit is always required. Check digits are not automatically transmitted with the data. One MSI Check Digit (default) Two MSI Check Digit Scan this symbol to transmit the check digit with the data.

  • Page 28: Upc-A

    UPC-A To enable or disable UPC-A, scan the appropriate barcode below. Enable UPC-A (default) Disable UPC-A UPC-A Preamble Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A symbol. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0”...
  • Page 29 UPC-A System Character (default) System Character & Country Code Scan the appropriate barcode below to transmit the symbol with or without the UPC-A check digit. Transmit UPC-A Check Digit (default) Do Not Transmit UPC-A Check Digit...

  • Page 30: Upc-E

    UPC-E To enable or disable UPC-E, scan the appropriate barcode below. Enable UPC-E (default) Disable UPC-E UPC-E Preamble Preamble character (System Character) can be transmitted as part of a UPC-E symbol. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character or transmit no preamble.
  • Page 31 UPC-E System Character & Country Code Scan the appropriate barcode below to transmit the symbol with or without the UPC-E check digit. Transmit UPC-E Check Digit (default) Do Not Transmit UPC-E Check Digit...

  • Page 32: Code

    UPC-E1 To enable or disable UPC-E1, scan the appropriate barcode below. Note: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 Disable UPC-E1 (default) UPC-E1 Preamble Preamble character (System Character) can be transmitted as part of a UPC-E1 symbol. Select one of the following options for transmitting UPC-E1 preamble to the host device: transmit system character or transmit no preamble.
  • Page 33 UPC-E1 System Character & Country Code Transmit UPC-E1 Check Digit (default) Do Not Transmit UPC-E1 Check Digit Convert UPC-E1 to UPC-A Enable this parameter to convert UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit).

  • Page 34: Decode Upc/Ean Supplementals

    Decode UPC/EAN Supplementals Supplementals are appended characters (2 or 5) according to specific code format conventions (e.g., UPC A+2, UPC E+2). Several options are available: • If Decode UPC/EAN with Supplemental characters is selected, the scan engine does not decode UPC/EAN symbols without supplemental characters.
  • Page 35 Decode UPC/EAN Supplementals Enable 978/979 Supplemental Mode...

  • Page 36: 2D Symbologies

    2D Symbologies Make sure the scanner is not connected to a host computer or device before scanning a com- mand barcode. To enable or disable, scan the appropriate bar code.

  • Page 37: Aztec

    Aztec Enable (default) Disable #FNB00F508C60408FFF13E010000# #FNB00F508C60408FFF13E000000# Data Matrix Enable (default) Disable #FNB00F508C60408FFF024000000# #FNB00F508C60408FFF024010000# Han Xin Enable Disable #FNB00F509C60408FFF8048F010000# #FNB00F509C60408FFF8048F000000#...

  • Page 38: Micropdf417

    MicroPDF417 Enable (default) Disable #FNB00F507C60408FFE3000000# #FNB00F507C60408FFE3010000# PDF417 Enable (default) Disable #FNB00F507C60408FF0F010000# #FNB00F507C60408FF0F000000# Micro QR Code Enable (default) Disable #FNB00F508C60408FFF13D010000# #FNB00F508C60408FFF13D000000# QR Code Enable (default) Disable #FNB00F508C60408FFF025010000# #FNB00F508C60408FFF025000000#...

  • Page 39: Code

    Sample Barcodes For testing only. Aztec Codabar Code 39 Code 93 Code 128 Data Matrix EAN 8/JAN EAN 13/JAN GS1 Databar Han Xin Interleaved 2 of 5 Matrix 2 of 5 MaxiCode MicroPDF417 Micro QR Code...
  • Page 40 Sample Barcodes PDF 417 QR Code UPC-A UPC-E...

  • Page 41: Environmentally Friendly

    Environmentally Friendly Socket Mobile is a responsible global citizen that works actively to mitigate global climate change and to minimize our products’ long-term impact on the environment. These principles inform our decisions and are reflected in our actions. Our shipping boxes are uncolored and free of dying chemicals to make them recyclable.
