MT2834MR6 Splitter Cable

Product Update
PN 82058420, Rev. A
2/1/00
When you use an MT2834MR6 modem, there is one RJ11 connector for each modem on the card.
To use MT2834MR6 modems, you need a special cable for the RS232 connectors. Three of these
cables ship with the MT2834MR6 modems. Each cable has one male DB25 connector on one end
and two female DB25 connectors on the other end.

RJ11 Jack

MT2834MR6
[1]
Modem A
[2]
Modem B
[3]
Modem C
[4]
Modem D
[5]
Modem E
[6]
Modem F

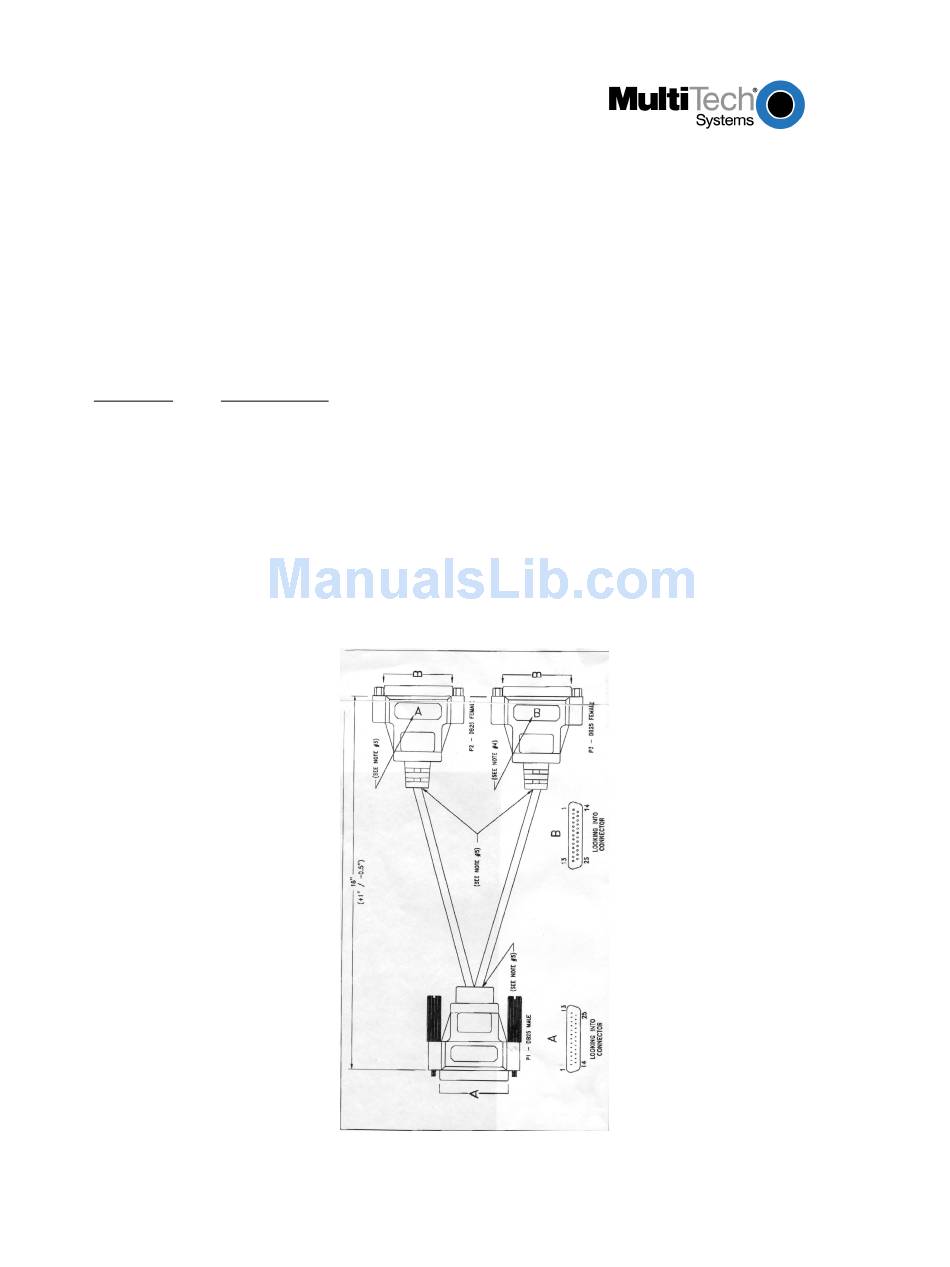

The MT2834MR6 Splitter Cable (also called the "Y Cable") is shown below.
Figure 1. MT2834MR6 Splitter Cable
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MT2834MR6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Multitech MT2834MR6

  • Page 1 PN 82058420, Rev. A 2/1/00 When you use an MT2834MR6 modem, there is one RJ11 connector for each modem on the card. To use MT2834MR6 modems, you need a special cable for the RS232 connectors. Three of these cables ship with the MT2834MR6 modems. Each cable has one male DB25 connector on one end and two female DB25 connectors on the other end.
  • Page 2 The MT2834MR6 Splitter Cable (Multi-Tech PN 45880110) pinout is shown below. J1 (not labeled) J3 (labeled A*) To CC4800 Rack To Terminal Server 1 ------------------------------------ 7 2 ------------------------------------ 2 3 ------------------------------------ 3 4 ------------------------------------ 4 5 ------------------------------------ 5 6 ------------------------------------ 6...
