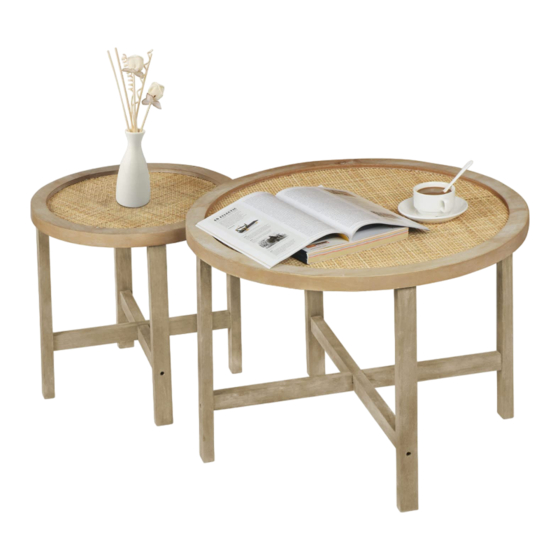

- Page 1 Item No.: T0012 Contact Us: service@anmytek.com California Side Table Set of 2 ASSEMBLY AND CARE GUIDE 2 PEOPLE 2 x 1 m 30 MIN ASSEMBLY TIME REQUIRED FOR ASSEMBLY FLOOR SPACE REQUIRED Contact Us: service@anmytek.com...
-
Page 2: Safety Precautions
Item No.: T0012 Contact Us: service@anmytek.com SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of thisproduct. -
Page 3: Assembly Diagram
Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY DIAGRAM ① ② ② ③ ② ② ④ ⑤ ⑥ ⑦ ⑥ ⑧ ⑥ ⑥ AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please feel free to contact us via the following email: Email: service@anmytek.com... - Page 4 Item No.: T0012 Contact Us: service@anmytek.com Screw 16 PCS 3.5x12mm Screw 8 PCS 3.5x35mm Wooden Dowel 8 PCS Footpad 8 PCS Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly. Some extra hardware may also have been included.
-
Page 5: Assembly Steps
Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 1 Attach 2 x legs (2) to part (3) using 2 x wooden dowels (C), 2 x screws (B) with a screwdriver. Step 2 Attach 2 x legs (2) to part (4) using 2 x wooden dowels (C), 2 x screws (B) with a screwdriver. - Page 6 Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 3 Attach assembled legs to the top panel (1) using 8 x screws (A) with a screwdriver. Fix 4 x footpads (D) to legs. Step 4 Final assembly for the large one.
- Page 7 Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 5 ⑦ ⑥ ⑥ Attach 2 x legs (6) to part (7) using 2 x wooden dowels (C), 2 x screws (B) with a screwdriver. Step 6 ⑧ ⑥ ⑥ Attach 2 x legs (6) to part (8) using 2 x wooden dowels (C), 2 x screws (B) with a screwdriver.
- Page 8 Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 7 ⑥ ⑥ ⑧ ⑥ ⑥ ⑦ ⑤ Attach assembled legs to the top panel (5) using 8 x screws (A) with a screwdriver. Fix 4 x footpads (D) to legs.
- Page 9 Item No.: T0012 Contact Us: service@anmytek.com ASSEMBLY STEPS Step 9 Final assembly. Contact Us: service@anmytek.com...
