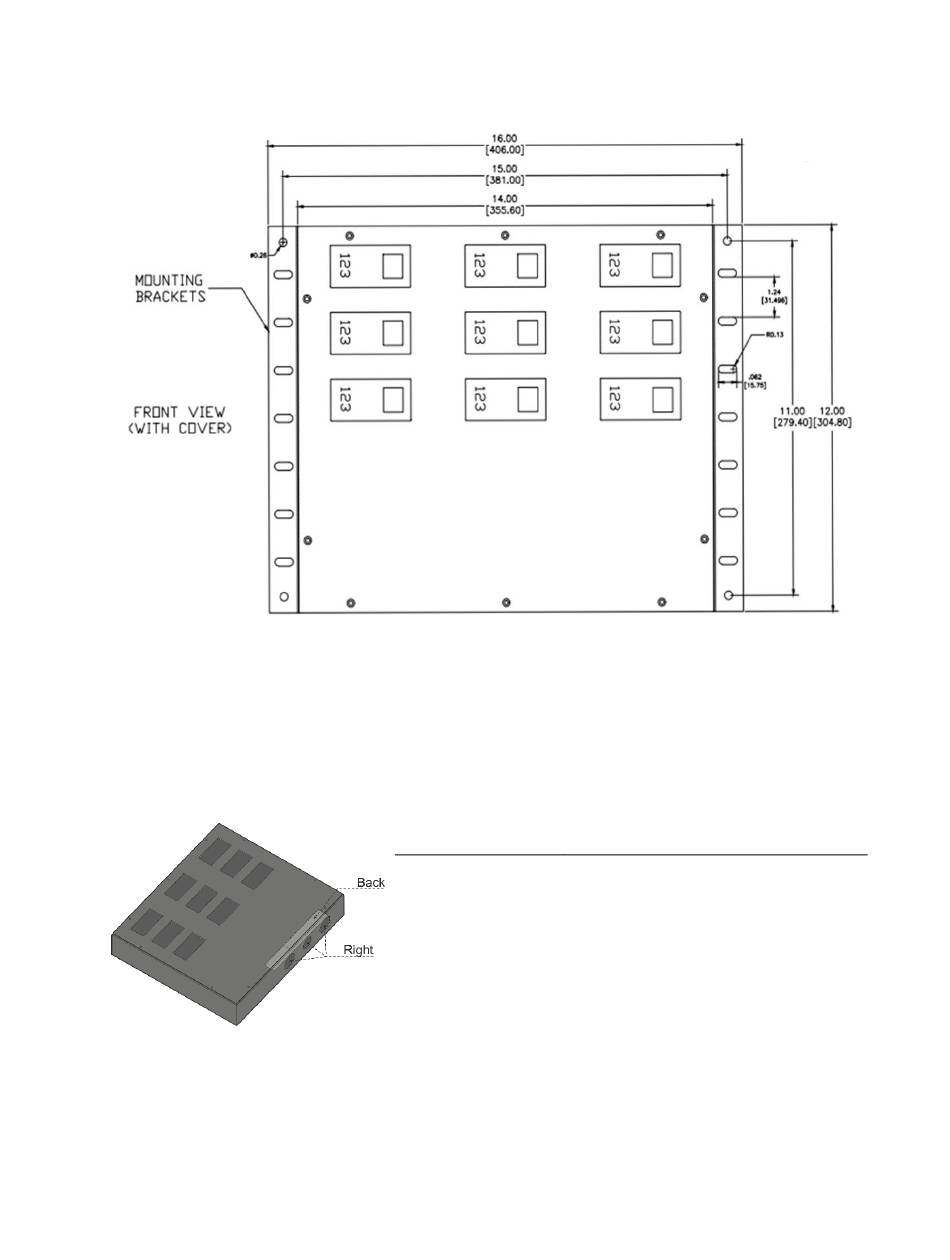

Enclosure dimensions
Wire exits
The BGS72 has openings for wire exits in the back and on the right side of the enclosure
allowing it to be mounted in a variety of positions relative to the equipment being monitored.
© 2021 Packet Power, LLC
Packet Power Multi-Circuit Monitor BGS72 User Manual V2.0
Wire exit location
Back opening
Right side conduits
Description
1 x 7" (25 x 78 mm) opening
2 x 1.38" (35 mm) diameter knockouts
1 x 1.10" (28 mm) diameter knockout
Page 12 of 30
