Packet Power BG04 Quick Start Manual

BG04 Multi-circuit Power Monitor
Quick Start Guide
This is a summary of how to install a Packet Power BG04 multi-circuit monitoring device.

IMPORTANT

1. Installation should be conducted by a qualified professional according to local electrical codes.
2. Protective equipment should be used when handling a current transducer (CT) on a live conductor.
3. Do not make adjustments to the BG04's internal wiring.
4 If you believe the BG04, CTs, or leads have been damaged, do not attempt to repair or use them.

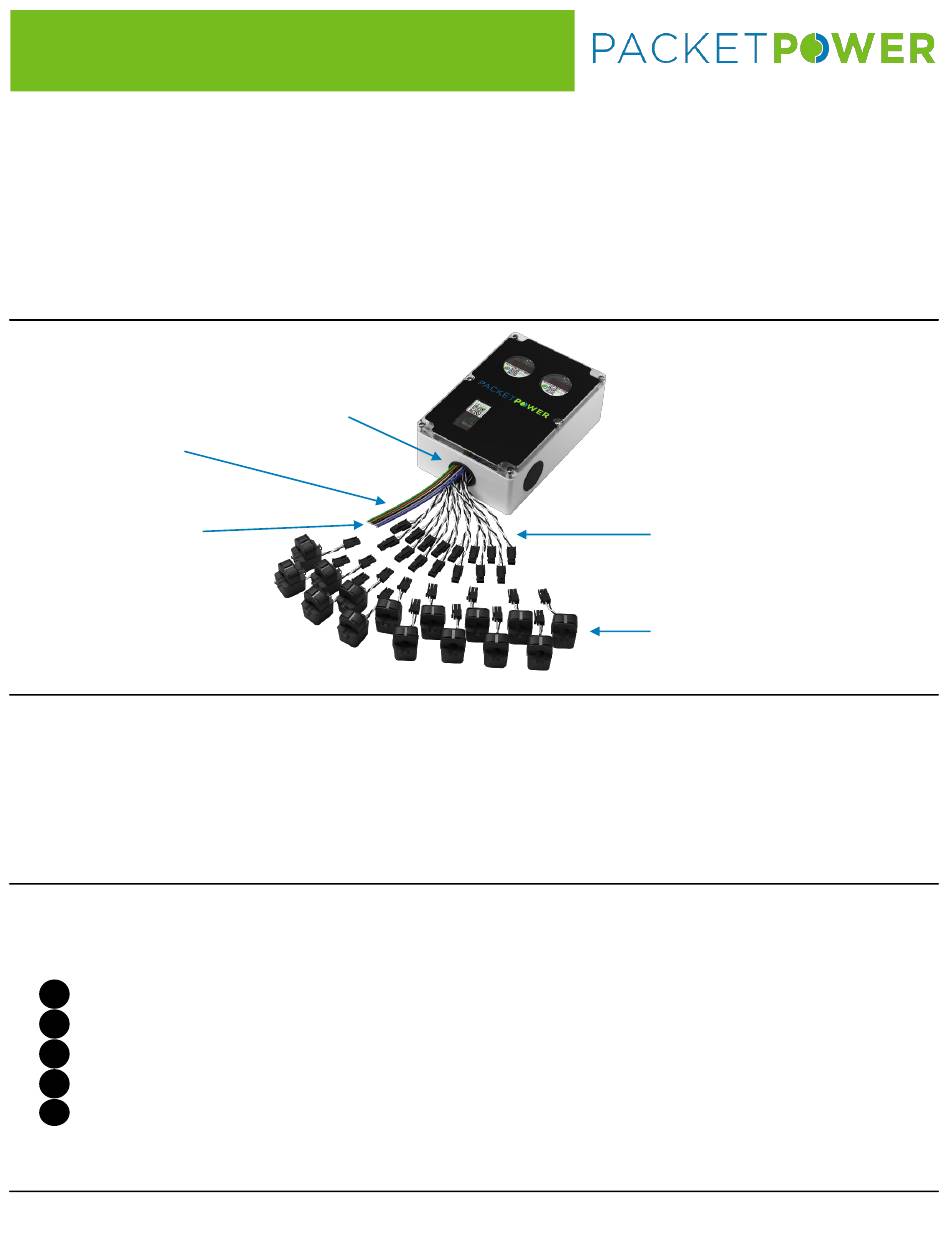

COMPONENTS

Ground wire
Voltage lead(s)

TOOLS NEEDED

12" adjustable wrench
12" adjustable claw pump pliers
#2 Phillips screwdriver (minimum 4" shaft)
#5 drill bit
#5 screws

INSTALLATION STEPS

The BG04 does not need to be configured prior to use.
1
Mount BG04 to wall or device using attached mounting tabs
2
Run CT leads from the BG04 to device being monitored
3 Connect CTs to the conductors
4 Connect CT tails to the CT leads coming from the BG04
5
Run the voltage leads to the voltage source and connect by line and ground
Once power is supplied, the BG04 will automatically begin to transmit data.
© 2019 Packet Power LLC
Chase nipple
with lock nut
-- to tighten chase nipple
-- to tighten lock nut around chase nipple
-- to remove device cover if needed
-- to make mounting holes in wall
-- to attach mounting tabs to wall
See next page for more detail by step.
www. packetpower.com/support

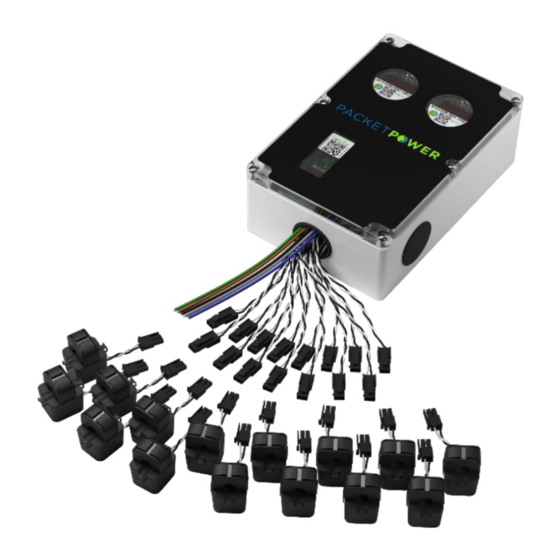

BG04 Multi-circuit monitor
CT leads with quick connectors
Current Transducers (CTs)
with quick connector
BG04 QS V1
