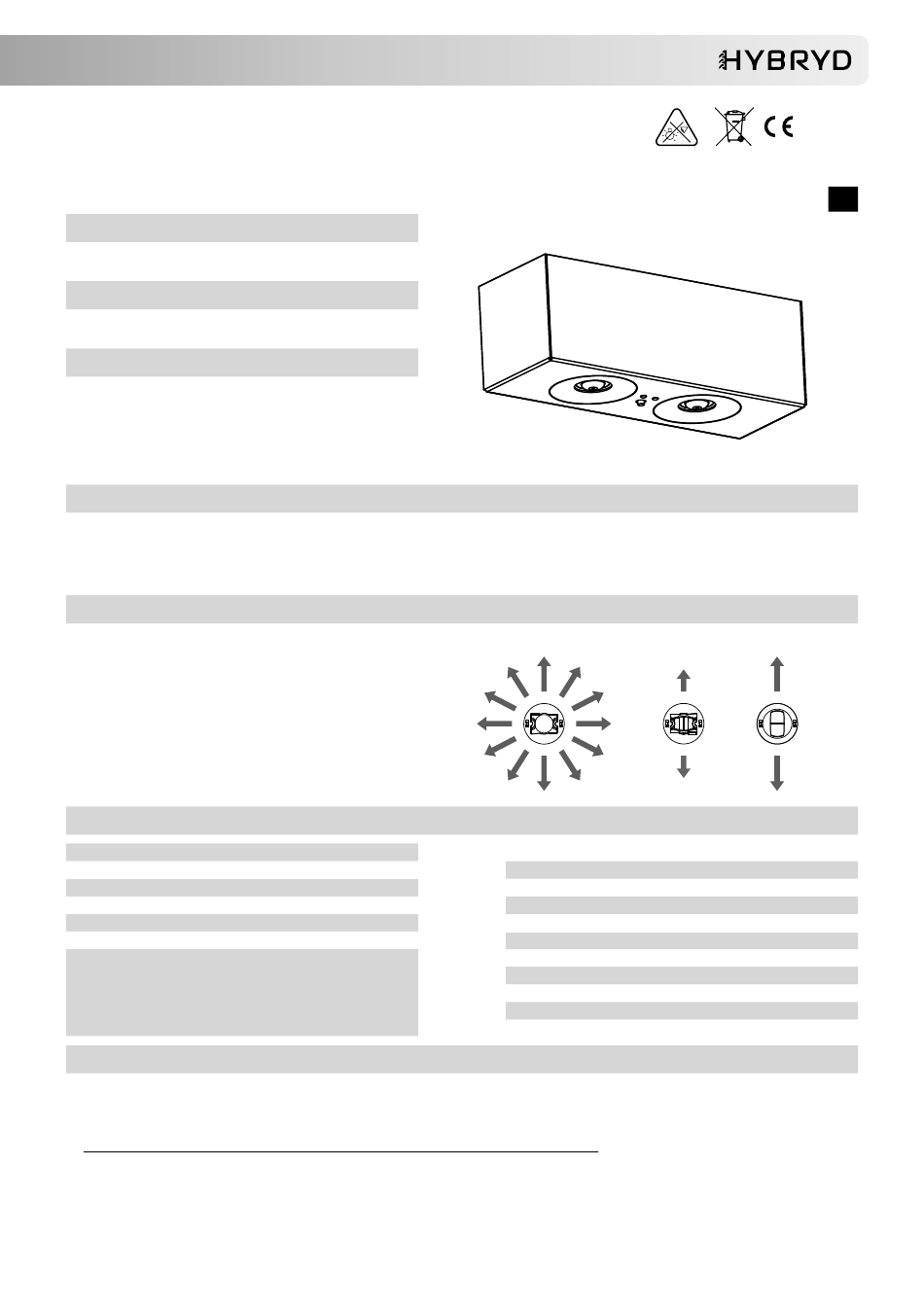

HYBRYD CRYSTAL LED Installation And Maintenance Manual

Autonomous emergency lighting luminaire
CRYSTAL LED
MOUNTING TYPE
Directly to the wall or ceiling. For other mounting types see: „Mounting
accessory" in product data sheet
OPERATING MODE
NON-MAINTAINED – luminaire operates in emergency
NM –
mode after power supply failure
SYSTEM VARIANT
ST – STANDARD – tests commissioned manually
AUTOTEST – internal components, battery and light source
AT –
tests being performed automatically
CENTRALTEST – internal components, battery and light
CT – source tests being performed on command from the main
unit of central management system
TESTS
The microcontroller-based control and test unit performs automatically (AT) or on order from the central management system (CT) or by manual execution
(ST) two types of tests:
TEST A – internal components and light source test lasting 60 seconds – performed every 30 days for the AT system variant
TEST B – internal components, light source and operation duration test (till the battery is fully discharged) – performed every 360 days for the AT system variant
OPTICS
(AR) symmetrical light distribution in all directions, recom-
AREA –
mended for use in places of considerable height or to illu-
minate fire points
AREA (AP) symmetrical light distribution in all directions, ensur-
–
PLUS ing adequate illumination on a large area
(RO) light distribution mainly along the escape route, rec-
ROAD –
ommended for use in high corridors
(RP) light distribution mainly along the escape route
ROAD
– with a much greater range than for the ROAD optics, for
PLUS
small heights
TECHNICAL DATA
Supply voltage
Protection class
Ingress protection
Light source type
Light colour temperature
Light source power
Minimum luminous flux (2W / 4W / 6W)
SAFETY
•
During the installation and usage of emergency luminaires, follow the national safety rules as well as generally accepted technical rules
•
Supply voltage should never be removed from the permanent phase by any external switches, relays or contactors (BMS, wall switch, etc.)
•
During usage of emergency luminaires keep a register of inspection reports
•
Luminaire installation or maintenance has to be preceded by turning off the power supply and battery
•
Ensure that all foreign bodies are removed before the luminaire power is switched on
•
The luminaire is to be used undamaged and in accordance with specifications
THE ABOVE-MENTIONED LUMINAIRE IS A FIRE PROTECTION EQUIPMENT AND THEREFORE FALLS WITHIN RELEVANT STANDARDS AND REGULATIONS.
IMM - CRYSTAL LED - ST_AT_CT - EN V03
INSTALLATION AND MAINTENANCE MANUAL
230V AC 50/60Hz
I
IP40
LED modules
1)
5700K
2W, 4W, 6W
AR 220 / 417 / 642 lm
AP
175 / 331 / 508 lm
RO 177 / 368 / 563 lm
RP 127 / 351 / 537 lm
AREA / AREA PLUS ROAD
Light source lifespan
Battery type / voltage
Battery capacity
Battery recharging time
Emergency operation time
Ambient temperature range
Supply cable cross-section area
Supply cable diameter
Communication cable diameter (CT)
Suitable for through wiring
Non-exchangeable, but serviceable light source
1)
IP40
EN
ROAD PLUS
> 50 000h
Ni-MH, Ni-Cd / 4,8V
1,0; 2,5; 4,0Ah
< 24h
1h; 2h; 3h
+5 – +35˚C
0,5 – 2,5mm
2
≤ 13mm
≤ 7mm
YES
1/4
