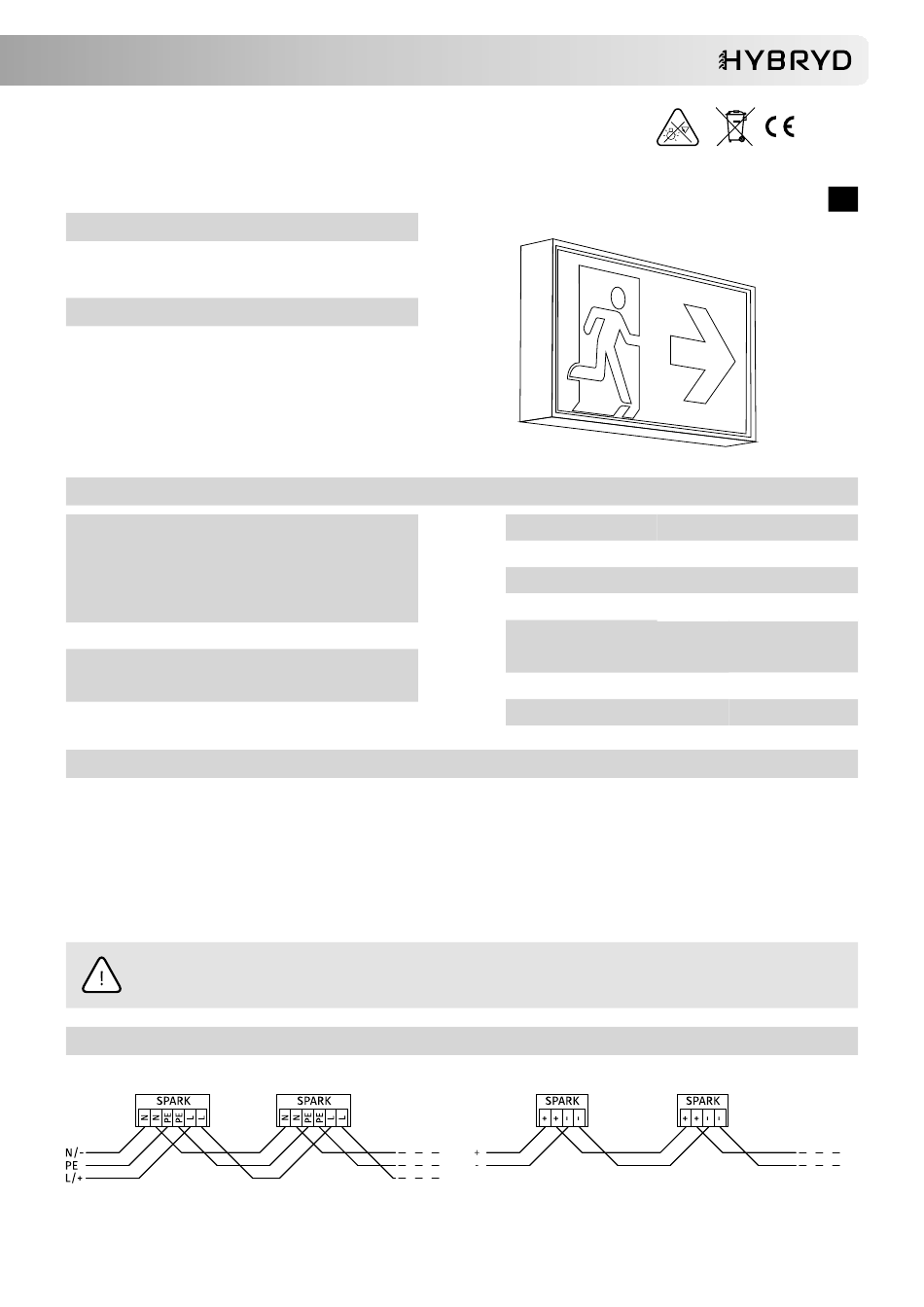

HYBRYD SPARK SGN Installation And Maintenance Manual

Centrally supplied emergency exit sign luminaire
SPARK SGN LED
MOUNTING TYPE
W1 – back to the wall
For other mounting types see: „Mounting kits" in product data sheet
SYSTEM VARIANT
luminaire supplied from HVCBS (230V AC/216V DC), without
CB –
address module
luminaire supplied from the HVCBS (230V AC/216V DC), with
CBAM –
built-in address module and operating mode selection.
LV – luminaire supplied with 24V DC
LVAM – luminaire supplied with 24V DC from the LVDBS system,
with built-in address module and operating mode selection
TECHNICAL DATA
Supply voltage
Ingress protection
Protection class
Light source type
SAFETY
•
During the installation and usage of emergency luminaires, follow the national safety rules as well as generally accepted technical rules
•
Supply voltage should never be removed from the permanent phase by any external switches, relays or contactors (BMS, wall switch, etc.)
•
During usage of emergency luminaires keep a register of inspection reports
•
Luminaire installation or maintenance has to be preceded by turning off the power supply and battery
•
Ensure that all foreign bodies are removed before the luminaire power is switched on
•
The luminaire is to be used undamaged and in accordance with specifications
The above-mentioned luminaire is a fire protection equipment and therefore falls within relevant standards and regulations.
NOT OBEYING THE SAFETY INSTRUCTIONS AND RECOMMENDATIONS CAN CAUSE LIFE THREAT OR EVEN DEATH
WIRING DIAGRAM
IMM - SPARK SGN LED - CB_CBAM_LV_LVAM - EN V03
230V AC 50/60Hz
CB
80–275V DC
230V AC 50/60Hz
CBAM
170-275V DC
LV/LVAM
10–32V DC
IP40
CB/CBAM I
LV/LVAM III
LED strip
1)
Not obeying this instruction manual can result in luminaire damage and loss of warranty
CB/CBAM
INSTALLATION AND MAINTENANCE MANUAL
Light source temperature
Colour rendering index
Light source supply power
Light source lifespan
Ambient temperature range
Supply cable cross-section area
Suitable for through wiring
Non-exchangeable but serviceable light source;
1)
IP40
5000 K
70
2W
> 50 000h
CB/CBAM -10 – +55˚C
LV/LVAM -25 – +60˚C
0,5 – 2,5mm
TAK
TE – extended temperature range
2)
LV/LVAM
EN
2
1/4
