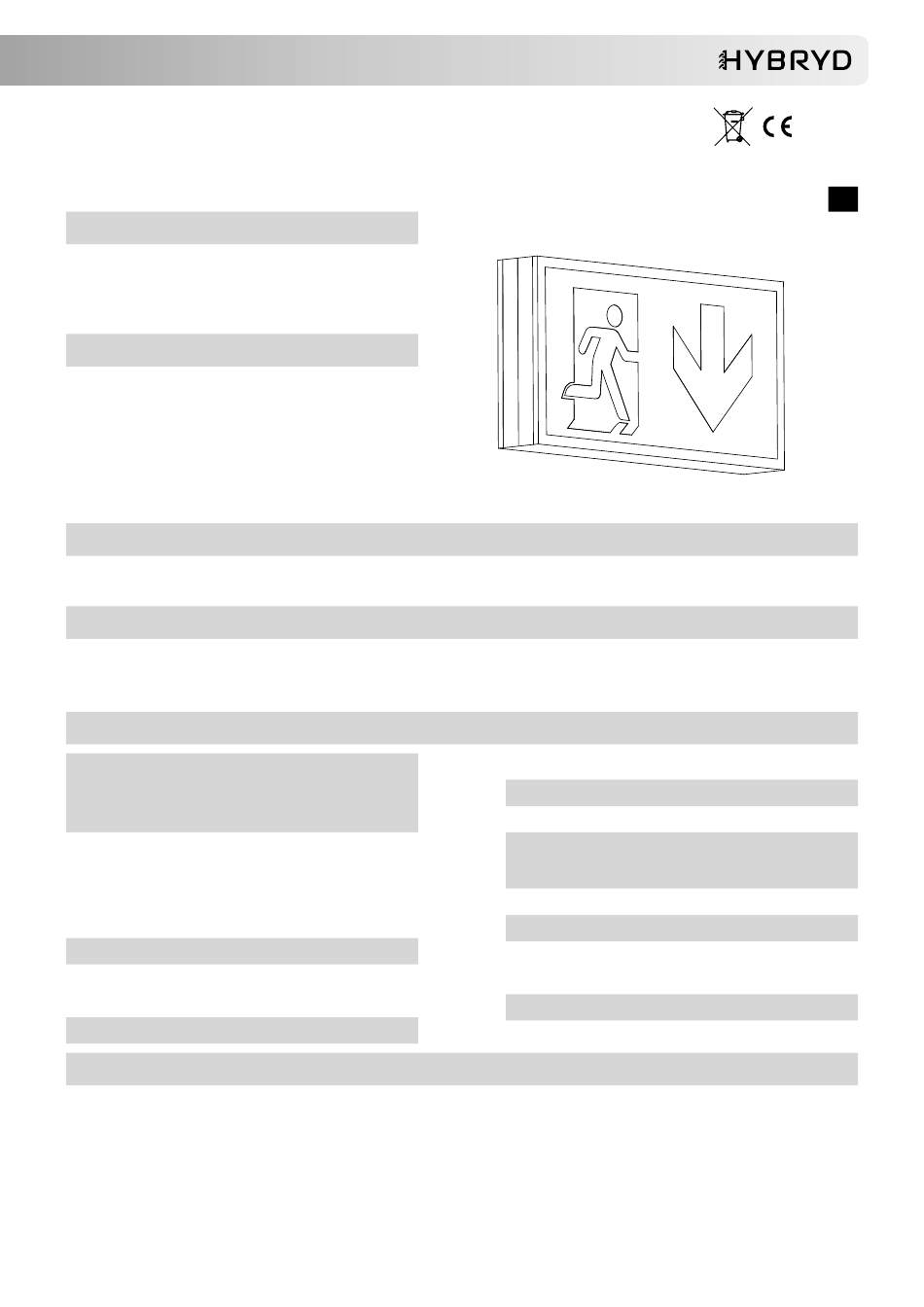

HYBRYD ALU SGN LED Installation And Maintenance Manual

Centrally supplied emergency exit sign luminaire
ALU SGN LED
MOUNTING TYPE
directly to the ceiling (for suspended mounting -
C2 –
separate accessory C202)
W1 – back to the wall
W2 – side to the wall (semaphore)
SYSTEM VARIANT
luminaire supplied from HVCBS (230V AC / 108V DC
CB –
/ 216V DC), without address module
luminaire supplied from the HVCBS (230V AC/216V
CBAM – DC), with built-in address module and operating
mode selection
luminaire supplied with 24V DC from the LVDBS
LVAM – system, with built-in address module and
operating mode selection
LIGHTING TYPE
NM – NON-MAINTAINED – luminaire operates in emergency mode after power supply failure
M – MAINTAINED – lighting provided all the time, in case of power supply failure switches automatically into emergency mode
SIZE OF EXIT SIGN
30x15 – ISO 7010 compliant exit sign with the dimensions of 30x15 cm and a viewing distance of 30 meters
40x20 – ISO 7010 compliant exit sign with the dimensions of 40x20 cm and a viewing distance of 40 meters
60x30 – ISO 7010 compliant exit sign with the dimensions of 60x30 cm and a viewing distance of 60 meters
TECHNICAL DATA
Supply voltage
Current
@216V DC
consumption
@24V DC LVAM
Power factor
Protection class
Ingress protection
SAFETY
• During the installation and usage of emergency luminaires, follow the national safety rules as well as generally accepted technical rules.
• During usage of emergency luminaires keep a register of inspection reports.
• Luminaire installation or maintenance has to be preceded by turning off the power supply.
• Ensure that all foreign bodies are removed before the luminaire power is switched on.
• The luminaire is to be used undamaged and in accordance with specifications.
• The luminaire designed for use inside the building.
The above-mentioned luminaire is a fire protection equipment and therefore falls within relevant standards and regulations.
IMM - ALU SGN LED - CB_CBAM_LVAM - EN V05
CB 230V AC 50/60Hz, 80-275V DC
CBAM 230V AC 50/60Hz, 170-275V DC
LVAM 10-32V DC
30x15, 40x20 60x30
CB 24mA 26mA
CBAM
28mA 30mA
115mA 160mA
0.4
CB/CBAM I
LVAM III
IP40
INSTALLATION AND MAINTENANCE MANUAL
Light source type
Light source temperature
Colour rendering index
Light source supply power
Light source lifespan
Supply cable cross-section area
Ambient temperature
Suitable for through wiring
¹ Non-exchangeable but serviceable light source;
)
IP40
LED strips
1)
5000K
70
30x15
2)
2W
40x20
60x30 3W
> 50 000h
0.5 – 2.5mm
2
CB/CBAM -10 – +55 C
0
LVAM -25 – +60 C
0
YES
Sign dimensions
2)
EN
1/6
