Universal Mount w Adapter Plate DS2000S
INSTALLATION
CONTENTS:
2 - U-bolts
1 - Adapter plate
4 - Flanged hex nuts
1 - Pipe & foot assembly
SCAN
FOR
MORE
PRODUCT
INFORMATION
Winegard Company
2736 Mt. Pleasant St.
Starlink is a trademark of Space Exploration Technologies Corp. All trademarks, registered trademarks and logos
are the property of their respective owners and are not affiliated with Winegard Company.
Not provided: 7/16" wrench, lag bolts
stud
a
lag holes
b
(5/16"x 3" lag screw
recommended)
If siding is heavy enough, the
outer holes can also be used
to help secure the base.
1.0" – 1.5"
auxiliary
pipe dia.
or Starlink
d
WARRANTY
OR CALL
800-288-8094
|
Burlington, IA 52601
1

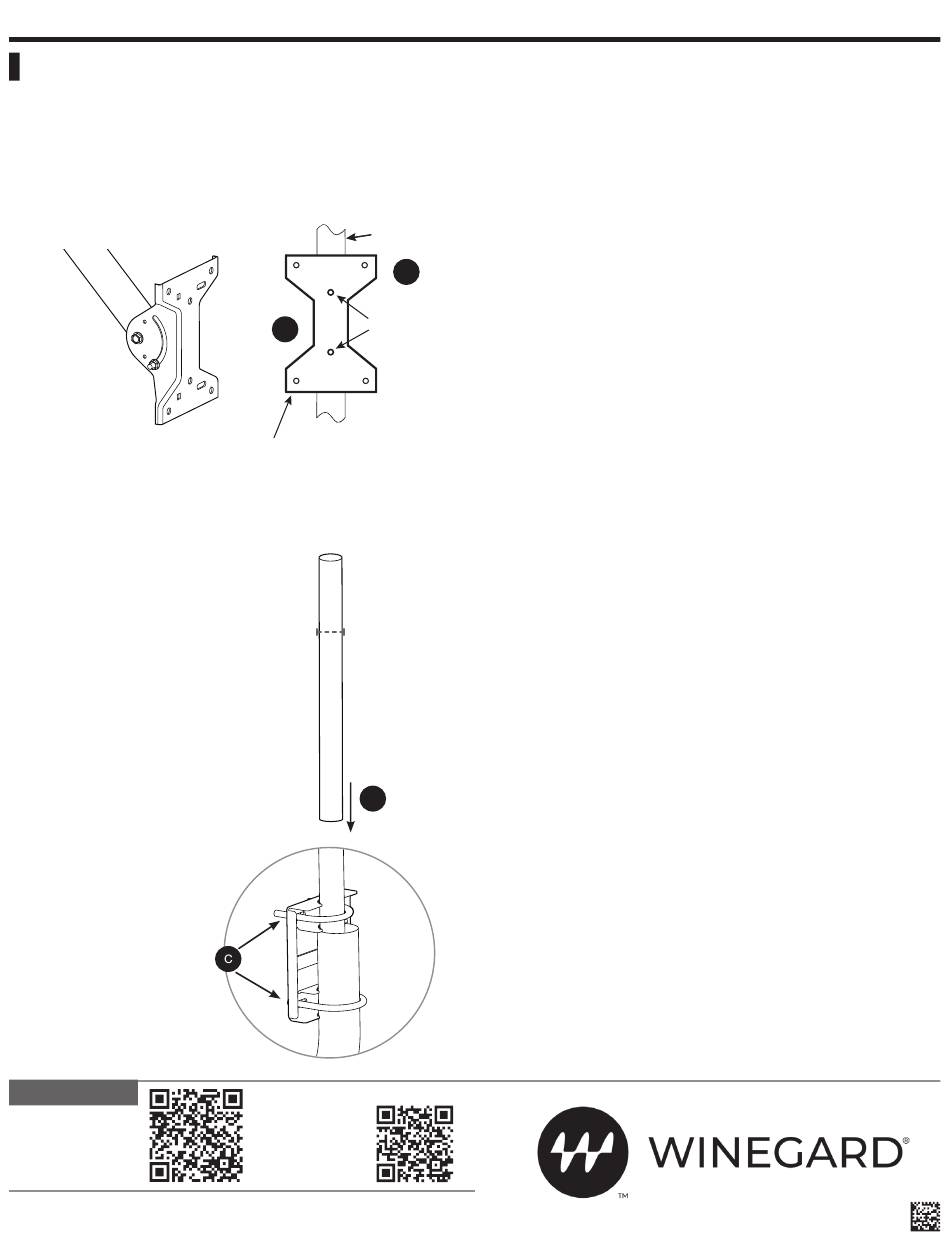

LOCATE a stud in the area to be
installed.
2
DRILL a small pilot hole to help start
threading the lag bolts (5/16"x 3"
recommended) (a).
3
APPLY silicone sealant to the back of
the base to seal holes (b).
4
USE the lag bolts to tighten the base to
the wall. Make sure the mast is plumb.
5
INSERT the U-bolts through the slots
in the adapter plate and secure loosely
with the nuts (c).
6
POSITION the adapter plate facing
UP, and place the bottom U-bolt over
the antenna mount pipe (c). Tighten
the two bottom U-bolt nuts.
7
SLIDE the auxiliary pipe through the
upper U-bolt and into the antenna mount
pipe as far as possible (d). The second
guide rests on the top edge of the pipe
mount. Tighten the nuts on the upper
U-bolt until the pole is secure. Verify the
bottom U-bolt is also secure.
WARNING: INSTALLATION OF THIS PRODUCT
NEAR POWER LINES IS DANGEROUS. For
your safety, follow the installation instructions.
See back for grounding instructions
Printed in U.S.A. © 2022 Winegard Company
Quick Start Guide
Rev 9-22 2452507
