INSTALLATION OF ANTENNAS NEAR POWER LINES IS DANGEROUS.
FOR YOUR SAFETY, FOLLOW THE INSTALLATION INSTRUCTIONS.
INSTRUCTIONS
NOTE: This mount is designed to fit on the
side of a house. Either end of the mast can be
attached to the base, depending on how much
clearance is required for the antenna.
NOTE: Lag bolts not supplied.
NOTE: Not recommended for antennas with a
boom length longer than 40".
STEP 1. Locate a stud in the area to be installed.
STEP 2. Drill a small pilot hole, to help start
threading the lag bolts (5/16 x 3" recommended).
STEP 3. Apply silicone sealant to back of the
base to seal holes.
STEP 4. Using lag bolts tighten the base to the
wall. Make sure mast is plumb.
WINEGARD

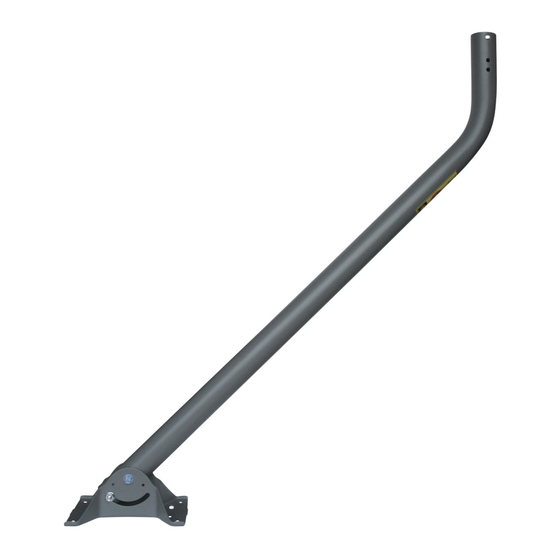

Pipe Mount Kit
Model DS-3000
WARNING
Tighten securely when
mast is plumb.
Winegard Company
3000 Kirkwood St., Burlington, IA 52601-2000
Printed in U.S.A. © Winegard Company 1998
®
If siding is heavy enough
these holes can also be
used to help secure the
base.
Make sure mast is plumb.
Stud
Lag Holes (5/16 x 3" lag
screw recommended)
Do not overtighten.
You can deform the mast.
