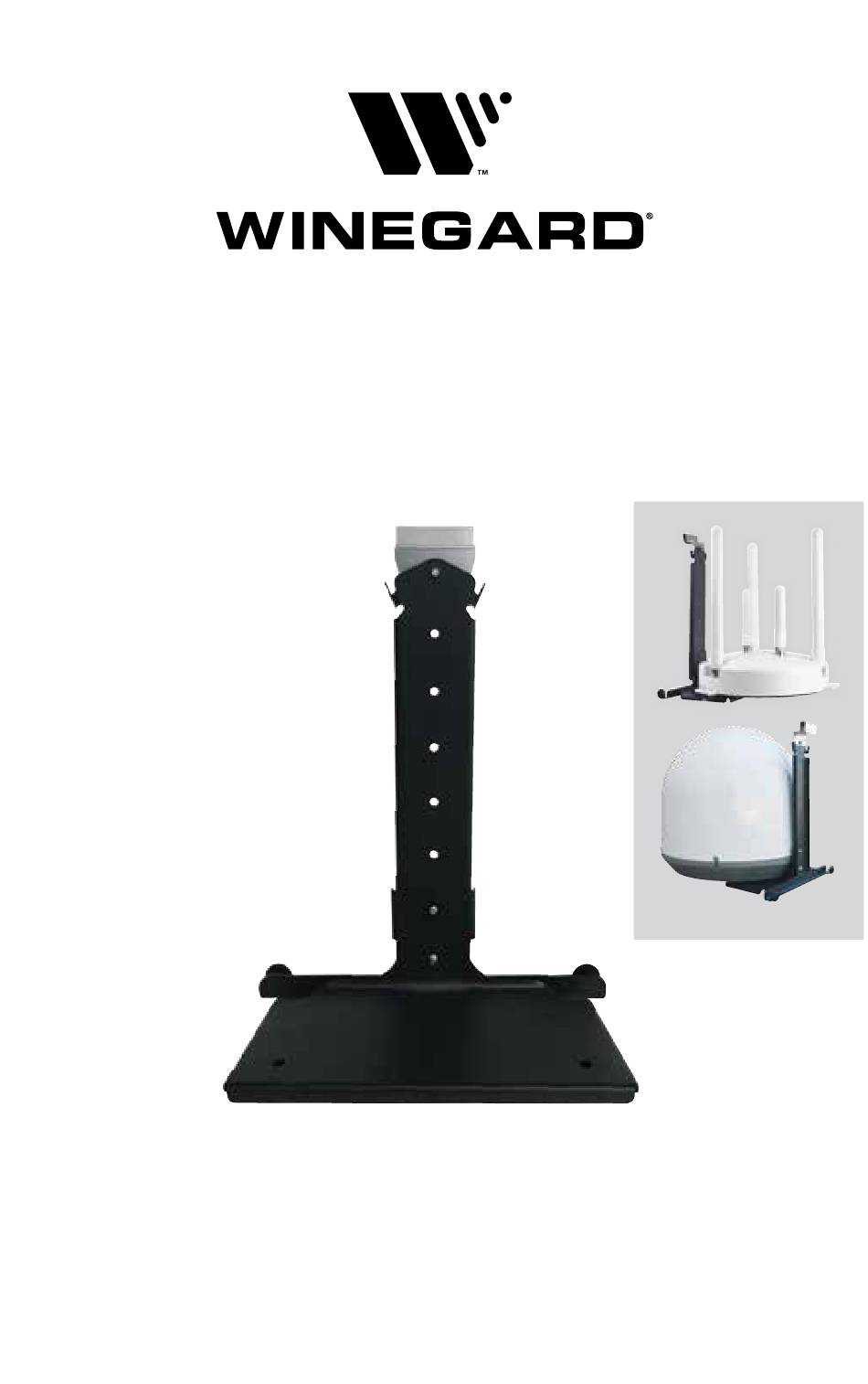

- Page 1 Assembly, Installation, & Operation Manual MT-SM30 Window Mount (Extender/Antenna not included) Manual disponible en español en www.winegard/support www.winegard.com/trucking For help, email help@winegard.com or call 1-800-788-4417 2452336 Rev2 6-18...
- Page 2 Parts Recommended Tools, not Provided: 3" x 3" Film Plastic (2) Phillips screwdriver 5/16" drive, 1 - adjustable wrench (not shown) Clip Mounting Screw (10) Back 10-32 x 3/4” Screw (3) Exterior Bracket (2) Support 10-32” Nylock Nut (4) Spacer (3) 10-32 x 1/2”...
-
Page 3: Specifications
Specifications • For use with the Winegard Carryout G2+ antenna (Models GM-6000 and GM-6035), Winegard Pathway X1 antenna (Models PA-2000, PA-2035, PA2000R, PA2035R), or Winegard ConnecT (Models WF-4000, WF-4035, WF-3000, WF-3035) • For stationary use only • Height (once assembled): 13.35", Width: 10.25"... - Page 4 Model MT-SM30 window mount should only be deployed when the vehicle is stationary. Do not use while the vehicle is moving.
- Page 5 Model MT-SM30 window mount should only be deployed when the vehicle is stationary. DO NOT use while the vehicle is moving.
- Page 6 Only hang the window mount assembly on an exterior bracket when the vehicle is parked and the antenna is in use; store the window mount assembly when not in use. Model MT-SM30 window mount should only be deployed when the vehicle is stationary. Do not use while the vehicle is moving.
- Page 7 Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor charges...
- Page 8 If the antenna and/or mount do(es) not function as expected, please contact Winegard by emailing help@winegard.com or calling 1-800-788-4417. Winegard, Carryout, ConnecT and Pathway are registered trademarks of Winegard Co. Winegard Company • 3000 Kirkwood Street • Burlington, IA 52601 1-800-288-8094 •...
