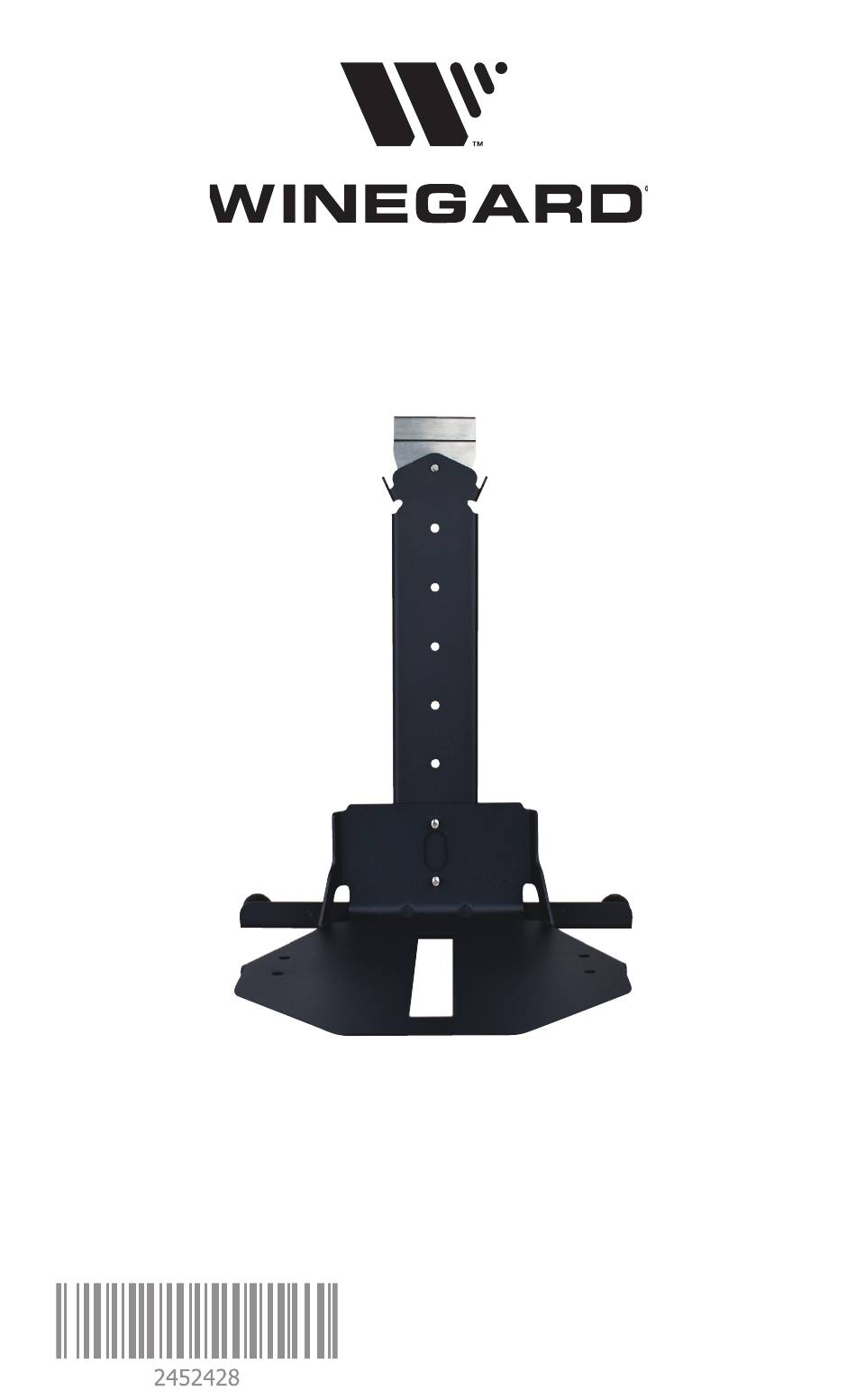

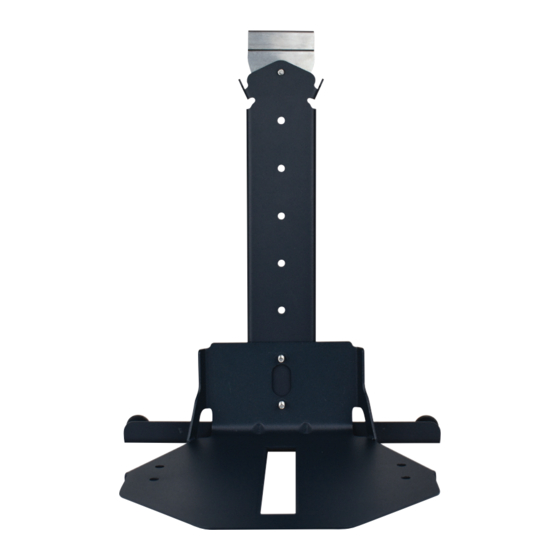

- Page 1 Assembly & Installation Manual MT-SM40 Window /Side Vehicle Mount Manual disponible en español en www. winegard/support www.winegard.com/trucking For help, email help@winegard.com or call 1-800-788-4417 2452428 Rev1 5-19...
- Page 2 10-32” Nylock Nut (2) 3" x 3" Film Plastic (2) Metal Washer (2) (not shown) Specifications For use with Winegard PL-7000, PL7000R, PL-8000, • PL8000R, PL-8035, PL8035R, GM-9000, GM-9035, PA-1000, PA1000R, PA-2000, PA-2035, PA2000R, PA2035R, GM-6000, GM-6035. For stationary use only •...
- Page 3 Step 1 Assembling the Window Mount To use with antenna models: PL-7000, PL7000R, PL-8000, PL8000R, PL-8035, PL8035R, GM-9000, GM-9035. Failure to install in accordance with product manufacturer’s installation and assembly instructions could result in property damage, personal injury, and/or death. 1.
- Page 4 Assembling the Window Mount Step 1 To use with antenna models: PA-1000, PA1000R, PA-2000, PA-2035, PA2000R, PA2035R, GM- 6000, GM-6035. Failure to install in accordance with product manufacturer’s installation and assembly Step 3 instructions could result in property damage, personal injury, and/or death. 1.
- Page 5 The antenna may take longer to lock onto signal if the antenna is not level. Use Winegard’s Signal Finder App with augmented reality to determine optimal location. Finding your favorite TV programming...
- Page 6 Only hang the window mount assembly on an exterior bracket when the vehicle is parked and the antenna is in use; store the window mount assembly when not in use. Model MT-SM40 window mount should only be deployed when the vehicle is stationary. Do not use while the vehicle is moving.
- Page 7 Model MT-SM40 window mount is intended for stationary use only and must be removed prior to traveling. Do not deploy the window mount...
- Page 8 Customer must provide proof of purchase to verify the product is under warranty. If the product is brought to an authorized Winegard dealer for service prior to expiration of year one (1) of the warranty period and a defect in material or workmanship is verified by Winegard Technical Services, Winegard Company will cover the Winegard dealer’s labor charges for warranty service.
